Custom Color problems

[John Giblin]

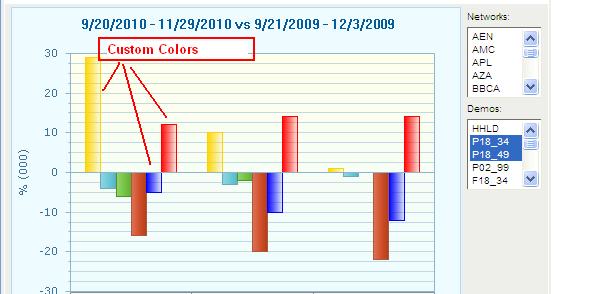

I am having a couple issues with setting custom colors to a chart:

1. The legend and datachart are not the same as the chart
2. The second color is transparent which is not consistent with the other items
3. how to remove a repeating color

below is what I have been doing.

protected void rcNetworkBroadcastChange_ItemDataBound(object sender, Telerik.Charting.ChartItemDataBoundEventArgs e)
{
    string net = ((DataRowView)e.DataItem)["Net"].ToString();
    e.SeriesItem.ActiveRegion.Tooltip = "Network: " + net + "\n" + ((DataRowView)e.DataItem)["Demo"].ToString() + ": " + ((DataRowView)e.DataItem)["Demo_Value"].ToString();
   if (NetworkColor.ContainsKey(net))
    {
        e.SeriesItem.Appearance.FillStyle.MainColor = (Color)NetworkColor[net];
        e.ChartSeries.Appearance.FillStyle.MainColor = (Color)NetworkColor[net];
      //  e.SeriesItem.Appearance.FillStyle.SecondColor = Color.Black;
    }
}

[Evgenia]

Hi John,

1. " The legend and datachart are not the same as the chart " - I don't get the meaning of this. Could you be more specific - what is not shown as expected?
2. The colors you specify for the chart have FillType - Gradient which means that each element is filled by two colors. You should set them to Solid (Element is filled by one color.) like this:

radChart1.Series[0].Items[0].Appearance.FillStyle.FillType = Telerik.Charting.Styles.FillType.Solid;

3. To be able to show non-repeating colors you can follow this help topic - http://www.telerik.com/help/aspnet-ajax/howtoassigncolors.html

Best wishes,
Evgenia
the Telerik team

[John Giblin]

thanks.  I figured an option for 2.  I set the color to:
e.SeriesItem.Appearance.FillStyle.SecondColor = ControlPaint.Dark(e.SeriesItem.Appearance.FillStyle.MainColor);

For #1, see the image.  The legend in the Datatable is not matching.

[Evgenia]

Hello John,

Please, find below my answer, provided in the support ticket you have started:

------------------------
1. This is caused by setting LegendDisplayMode property to ChartSeriesLegendDisplayMode.ItemLabels. As I mentioned in my previous post this is used when you want to see each Bar's Legend Label in the Legend - note that each series has 3 items. If you don't want to see each Item's Label just comment this code line.
2. Item X is the default name of the Items when no LegendName is set for each of them
3. The following code colors the PlotArea, the Chart Legend and the DataTable's Markers in same color as expected:

Copy Code

protected void Page_Load(object sender, EventArgs e)
    {
        List<Product> products = new List<Product>();
        products.Add(new Product("Parka L", 120, 40));
        products.Add(new Product("Parka M", 100, 64));
        products.Add(new Product("Parka S", 132, 120));
        products.Add(new Product("Wool Cap", 45, 90));
        products.Add(new Product("Mittens", 67, 75));
        RadChart1.DataSource = products;
        RadChart1.Series[0].DataYColumn = "Value1";
        RadChart1.Series[1].DataYColumn = "Value2";
        RadChart1.PlotArea.XAxis.DataLabelsColumn = "Name";
        RadChart1.PlotArea.XAxis.Appearance.TextAppearance.TextProperties.Font
         = new System.Drawing.Font("Arial", 8);
        RadChart1.DataBind();

        RadChart1.PlotArea.DataTable.Visible = true;
        Color[] colors = new Color[] { Color.MediumPurple, Color.Yellow, Color.RoyalBlue, Color.LightGreen };
        for (int i = 0; i < RadChart1.Series.Count; i++)
        {
            RadChart1.Series[i].Appearance.FillStyle.FillType = FillType.Solid;
            RadChart1.Series[i].Appearance.FillStyle.MainColor = colors[i];
            RadChart1.Series[i].Appearance.Border.Color = colors[i];
        }
    }

    public class Product
    {
        public Product(string name, int value1, int value2)
        {
            _name = name;
            _value1 = value1;
            _value2 = value2;
        }
        private string _name;
        public string Name
        {
            get { return _name; }
            set { _name = value; }
        }
        private int _value1;
        public int Value1
        {
            get { return _value1; }
            set { _value1 = value; }
        }
        private int _value2;
        public int Value2
        {
            get { return _value2; }
            set { _value2 = value; }
        }
    }

You can find a sample picture attached showing the result of running the code snippet above.
Please modify the given code snippet so that it applies your scenario.
-----------------------

Please, choose one of the threads to continue the communication, so it is easier for both sides to keep track. Thank you.

Kind regards,
Evgenia
the Telerik team

[John Giblin]

this did work when I removed the custom palette.

When I used added a custom palette, it would only change the border.  I guess I was doing to many things.

Thanks for your help
