Custom buttons in toolbar bug

[René]

Tried to add custom buttons to toolbar.

rightsButton = new RadToolBarButton();
rightsButton.ToolTip = CreaSoft.CommonServices.ResourceHelpers.GetGlobalResourceObject("FileExplorerControl.DirectoryRights");
rightsButton.Value = "ManageRightsFolder";
rightsButton.CommandName = "ManageRightsFolder";

Explorer.ToolBar.Items.Add(rightsButton);

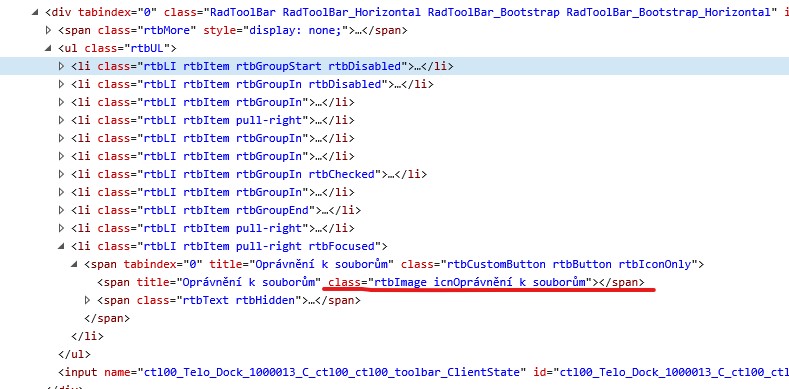

Then I found it doesn't work as expected. Seems that icons are missing (ok, I didn't define any, but found now way how to do it), but based on html, it generates tooltip as css class :-)

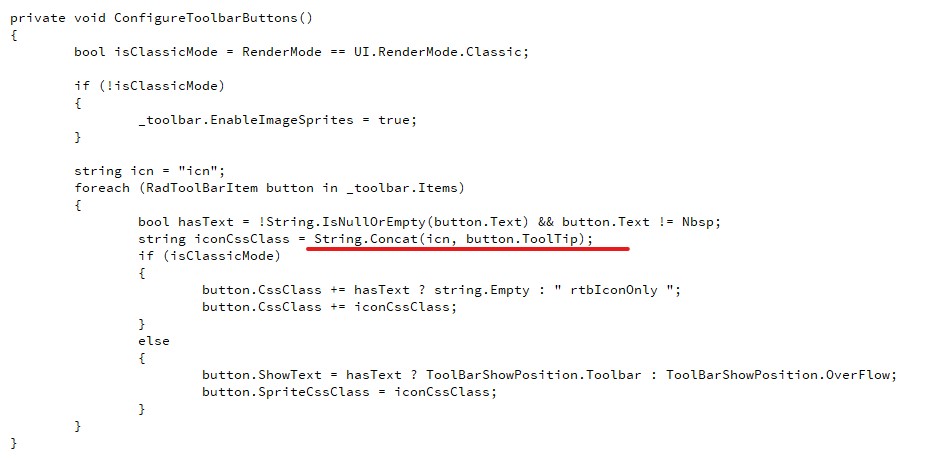

Then I found some strange code in Telerik_UI_for_ASP.NET_AJAX_2018_3_910_Source\Telerik.Web.UI\FileExplorer\RadFileExplorer.cs.

private void ConfigureToolbarButtons()
{
    bool isClassicMode = RenderMode == UI.RenderMode.Classic;

    if (!isClassicMode)
    {
        _toolbar.EnableImageSprites = true;
    }

    string icn = "icn";
    foreach (RadToolBarItem button in _toolbar.Items)
    {
        bool hasText = !String.IsNullOrEmpty(button.Text) && button.Text != Nbsp;
        string iconCssClass = String.Concat(icn, button.ToolTip);
        if (isClassicMode)
        {
            button.CssClass += hasText ? string.Empty : " rtbIconOnly ";
            button.CssClass += iconCssClass;
        }
        else
        {
            button.ShowText = hasText ? ToolBarShowPosition.Toolbar : ToolBarShowPosition.OverFlow;
            button.SpriteCssClass = iconCssClass;
        }
    }
}



So it seems to be a bug in this method. Css class should not be generated from Tooltip :-)

Please see attachments.



[Vessy]

Hi Raptor,

Thanks a lot for bringing this issue to our attention. I can verify that this is a bug int he control and we will look at it as soon as possible. Meanwhile, you can workaround the behavior by appending a white space in the beginning of the tooltip, applying the desired CSS class through the CSSClass property:

rightsButton = new RadToolBarButton();
rightsButton.ToolTip = " " + CreaSoft.CommonServices.ResourceHelpers.GetGlobalResourceObject("FileExplorerControl.DirectoryRights");
rightsButton.CssClass = "ManageRightsFolder";
rightsButton.Value = "ManageRightsFolder";
rightsButton.CommandName = "ManageRightsFolder";

I have also updated your Telerik points accordingly.

Regards,
Vessy
Progress Telerik

[chainhome]

It also happened with 2019 R3 version. (2019.3.917)

[Rumen]

Hi Chainhome,

Affirmative that the problem still persists in the latest version. Since you are the second to report it, I raised the priority of the issue and we will try to fix it for the upcoming R1 2020 release, due in mid-January.

On a side note, the workaround provided by Vessy is still applicable and up-to-date.



Regards,
Rumen
Progress Telerik

[Rumen]

Update: The problem will be fixed in the R1 2020 release.

The Custom Button icon class will be taken from the Button's Value property.

Another improvement will be the bug fix: SpriteCssClass is not rendered in the RadToolBarButton.

Regards,
Rumen
Progress Telerik
