Mbott asked on 06 May 2010, 03:29 PM
Hi.

Is it possible to have a chart where each point is another chart itself?

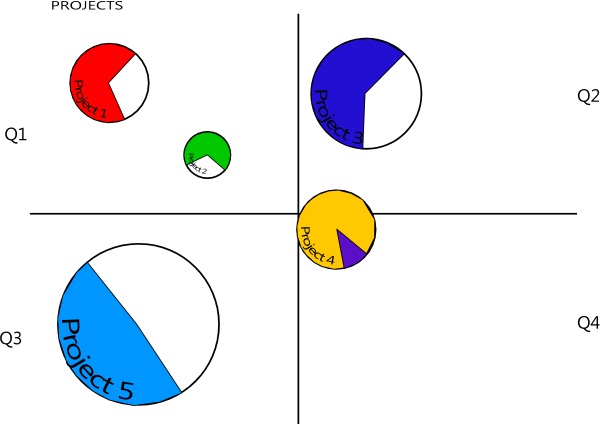

For example, a bubble chart with each bubble/point being an individual pie chart. (see attached image)

2 Answers, 1 is accepted

Sort by
0
Schlurk
Top achievements
Rank 2
answered on 06 May 2010, 05:53 PM
I don't believe that this is possible within the ASP.NET Ajax RadChart, but you can always submit this as a feature request in PITS :)

What you could potentially do is look into the RadChart for Silverlight that Telerik offers. This can be integrated quite easily into an ASP.NET Ajax application (as seen here) and if you take a look at this demo you can see that when you hover over particular bar another Chart appears as a tooltip. Although this does not fully represent what you want to do, perhaps having a bubble chart with the Pie charts as tooltips could be a good alternative.
0
Mbott
Top achievements
Rank 1
answered on 06 May 2010, 06:48 PM
Thanks for the response and suggestion.  The silverlight tooltip and drill down functionality might just work.
I'll explore that route for now.
