Column Span an ItemTemplate? Edit mode

[mac]

Trying to get a TemplateColumn to span 3 columns when in edit mode.
Every time it renders in insert or edit, columns 1 and 2 are pushed out. I would like it so the checkbox list can run wild horizontally.  I build my checkbox list at ItemDataBound.

<MasterTableView EditMode="EditForms" AutoGenerateColumns="false" DataKeyNames="PK" CommandItemDisplay="Top">
<EditFormSettings ColumnNumber="3" >
</EditFormSettings>
<columns>
<telerik:GridTemplateColumn UniqueName="Assigned" EditFormColumnIndex="0" HeaderText="Assigned" >
<EditItemTemplate>
<asp:HiddenField ID="HidAssigned" runat="server" Value='<%# Eval("Assigned") %>' />
<asp:CheckBoxList RepeatDirection="Horizontal" ID="CBAssigned" Runat="server" />
</EditItemTemplate>
<ItemTemplate>
<%#Eval("Assigned") %>
</ItemTemplate>
</telerik:GridTemplateColumn>

[Radoslav]

Hi Mac,

Thank you for contacting us.

I tried to reproduce the described issue, but to no avail. I am sending you a simple example based on your code. Please check it out and let me know what differs in your case.

Looking forward for your reply.

Kind regards,
Radoslav
the Telerik team

[mac]

Hi Radoslav
if you expand your sample to add a couple more columns than just the two on column 0 then the issue is easily recreated.
your sample expanded:
ADD:





<telerik:GridBoundColumn EditFormColumnIndex="1" HeaderText="Col2" DataField="Col2" />







<telerik:GridBoundColumn EditFormColumnIndex="2" HeaderText="Col3" DataField="Col3" />







void RadGrid1_NeedDataSource(object sender, Telerik.Web.UI.GridNeedDataSourceEventArgs e)





{







DataTable table = new DataTable();





table.Columns.Add(



"PK");





table.Columns.Add(



"Col2"); //added



table.Columns.Add(



"Col3"); //added



table.Columns.Add(



"Assigned", typeof(Boolean));









for (int i = 1; i < 8; i++)





{



table.Rows.Add(i,



true);





}



RadGrid1.DataSource = table;



}



}

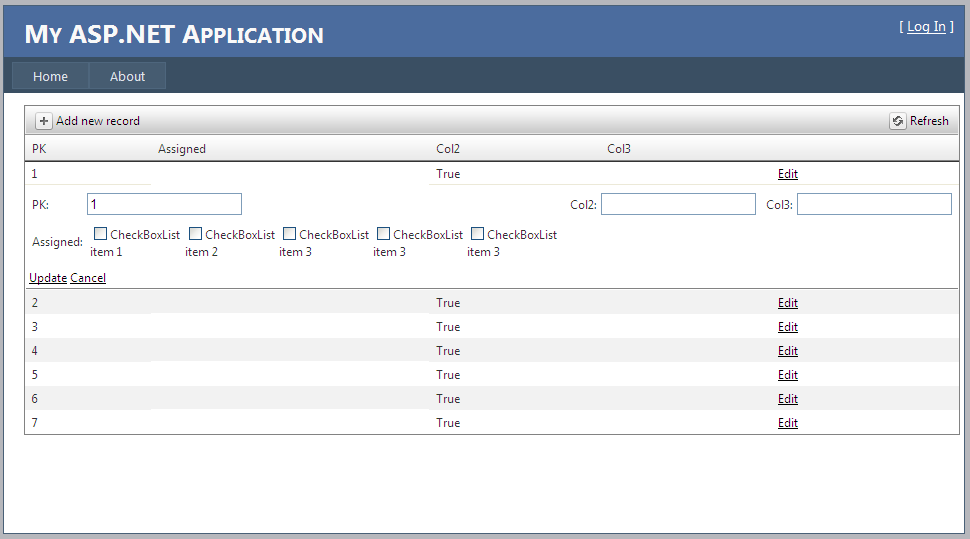

Once you enter Edit mode, you will see that columns 1 and 2 are now pushed out to the end of column 0 checkboxlist. I would like to somehow merge cells 0,1,2 on the checkboxlist row.

[Radoslav]

Hi Mac,

To achieve the desired functionality you could try setting the RadGrid.MasterTableView.TableLayout property to Fixed and set explicitly the Widths to the RadGrid, MasterTableView and the columns' HeaderStyle:

<telerik:RadGrid runat="server" Width="1130px" AutoGenerateEditColumn="true" ID="RadGrid1">
        <MasterTableView EditMode="EditForms" Width="1130px" TableLayout="Fixed" AutoGenerateColumns="false" DataKeyNames="PK"
            CommandItemDisplay="Top">
            <EditFormSettings ColumnNumber="3">
            </EditFormSettings>
            <Columns>
                <telerik:GridBoundColumn DataField="PK" HeaderText="PK">
                <HeaderStyle Width="100px" />
                </telerik:GridBoundColumn>
                <telerik:GridTemplateColumn UniqueName="Assigned" EditFormColumnIndex="0" HeaderText="Assigned">
                <HeaderStyle Width="800px" />
                    <EditItemTemplate>
                        <asp:HiddenField ID="HidAssigned" runat="server" Value='<%# Eval("Assigned") %>' />
                        <asp:CheckBoxList RepeatDirection="Horizontal" ID="CBAssigned" runat="server" />
                    </EditItemTemplate>
                    <ItemTemplate>
                        <%#Eval("Assigned") %>
                    </ItemTemplate>
                </telerik:GridTemplateColumn>
                <telerik:GridBoundColumn EditFormColumnIndex="1" HeaderText="Col2" DataField="Col2" ><HeaderStyle Width="100px" /></telerik:GridBoundColumn>
                <telerik:GridBoundColumn EditFormColumnIndex="2" HeaderText="Col3" DataField="Col3" ><HeaderStyle Width="100px" /></telerik:GridBoundColumn>
            </Columns>
        </MasterTableView>
    </telerik:RadGrid>

Additionally I am sending you the modified version of the example.

Best wishes,
Radoslav
the Telerik team
