Code snippets coming after remove table style from insert table popup

[Rajiv]



Hi,

Code snippets coming after remove table style from insert table popup in chrome,ie,ff.

I am facing a big problem in editor please give any solution.

Link: https://demos.telerik.com/aspnet-ajax/editor/examples/overview/defaultcs.aspx

Steps to reproduce

Step 1

Try to insert table from Insert Table from editor toolbar.

Step 2

Right click on cell then click on Table/cell properties. A table wizard popup will come.

Step 3

Click on Table Layouts tab on the table wizard popup.

Step 4

Select any value from table styles drop down.

Step 5

Now you can see  TABLE>TR>TD>RemoveElement on the bottom of the editor.click on RemoveElement .

After click on RemoveElement you can see STYLE>RemoveElement  again click on RemoveElement.

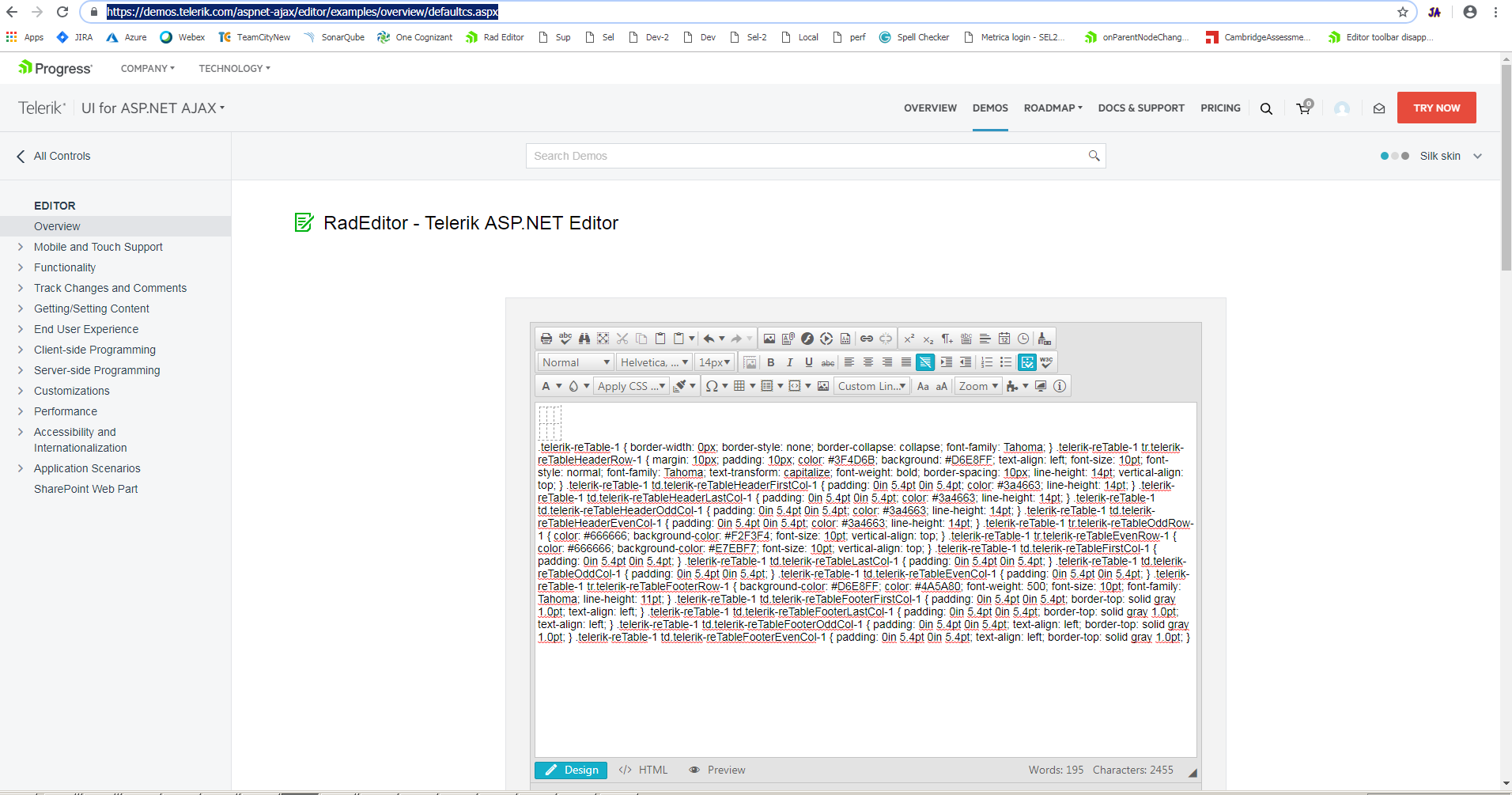

then you can see like below in the editor.

.telerik-reTable-2 { border-collapse: collapse; border: solid 0px; font-family: Tahoma; } .telerik-reTable-2 tr.telerik-reTableHeaderRow-2 { border-width: 1.0pt 1.0pt 3.0pt 1.0pt...........



[Rumen]

Hi Rajiv,

Thank you for reporting this scenario.

I need a little bit of help, because I am unable to see the following part of the scenario:

After click on RemoveElement you can see STYLE>RemoveElement  again click on RemoveElement.

After executing the 5th step, I get DIV -> RemoveElement or nothing in the module.

Can you please record and attached a video demonstration to see how to replicate the issue? Thank you!

Regards,
Rumen
Progress Telerik

[Rajiv]

Thanks Rumen for quick response.

PFA.



I was unable to upload .swf file extention that's why i was change it to .jpg format.

just chage it to .swf and see.

If you need any help then please let me know.



Thanks

[Rumen]

Hi Rajiv,

Thank you for the video!

The problem was reproduced and logged for fixing in our backlog. Your Telerik points were also updated for the bug report.

Regards,
Rumen
Progress Telerik

[Rumen]

I am following up with good news and a solution for the reported issue.

Here we go:

<script>
    var $T = Telerik.Web.UI;
    var utils = $T.Editor.Utils;
    var isTag = utils.isTag;
    var dom = Sys.UI.DomElement;
    var addClass = dom.addCssClass;
    var removeClass = dom.removeCssClass;
    var hasClass = dom.containsCssClass;
    var $EditorModules = $T.Editor.Modules;

    $EditorModules.RadEditorDomInspector.prototype.removeSelectedElement = function(elem) {
        var editor = this.get_editor();
        var tag = function (name) { return isTag(elem, name); };
        var cmd;

        try {
            if (tag("TD") || tag("TH")) {
                editor.fire("DeleteCell");
            }
            else if (tag("TR")) {
                var cells = elem.getElementsByTagName("td");
                if (cells.length) {
                    this.selectElement(cells[0]);
                    editor.fire("DeleteRow");
                }
            }
            else if (tag("TABLE") || tag("TBODY") || tag("THEAD") || tag("TFOOT") ||
                tag("EMBED") || tag("OBJECT") ||
                tag("INPUT") ||
                tag("IMG") ||
                tag("HR") ||
                tag("STYLE")) {
                cmd = new Telerik.Web.UI.Editor.GenericCommand(this._removeElementString, editor.get_contentWindow(), editor);
                window.setTimeout(function () {
                    elem.parentNode.removeChild(elem);
                    editor.setFocus();
                    editor.executeCommand(cmd);
                    editor.raiseEvent("selectionChange");
                }, 0);
            }
            else if (elem !== editor.get_contentArea()) {
                cmd = new Telerik.Web.UI.Editor.GenericCommand(this._removeElementString, editor.get_contentWindow(), editor);
                Telerik.Web.UI.Editor.Utils.removeNode(elem);
                editor.setFocus();
                editor.executeCommand(cmd);
            }
        }
        catch (ex) { }

        editor.raiseEvent("selectionChange");
    }
</script>
<telerik:RadEditor ID="RadEditor1" runat="server"></telerik:RadEditor>

Please let me know how the fix works on your side and is there any issues or side effects after applying it.

Best regards,
Rumen
Progress Telerik

[Rajiv]

Thanks Rumen.

Now its working fine.



Thank you so much.

[Rumen]

Perfect! Thank you for testing the solution!

Regards,
Rumen
Progress Telerik
