ChartView : How to Navigate/Move DataPoint Selection using Keyboard Right,Left

2 Answers 28 Views
ChartView
This is a migrated thread and some comments may be shown as answers.
Sivakumar
Top achievements
Rank 1
Sivakumar asked on 06 Jan 2016, 07:52 AM

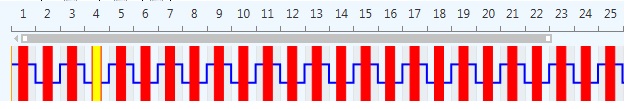

My Requirement to move Datapoint selection using keyboards right,left arrow keys.I am already highlight datapoints using selection changed event.But How to navigate the point?

Please see attached...



2 Answers, 1 is accepted

Sort by
0
Sivakumar
Top achievements
Rank 1
answered on 06 Jan 2016, 08:02 AM
<telerik:RadCartesianChart Height="1"  Palette="Arctic" >
           <telerik:RadCartesianChart.HorizontalAxis>
               <telerik:CategoricalAxis VerticalLocation="Top" Visibility="Visible" LabelFitMode="None" LabelRotationAngle="-90"  />
           </telerik:RadCartesianChart.HorizontalAxis>
           <telerik:RadCartesianChart.VerticalAxis>
               <telerik:LinearAxis  Minimum="-1" Maximum="2" MajorStep="1"  MajorTickOffset="5" ElementBrush="Orange" />
           </telerik:RadCartesianChart.VerticalAxis>
           <telerik:RadCartesianChart.Series>
               <telerik:StepLineSeries>
                   <telerik:StepLineSeries.DataPoints>
                       <telerik:CategoricalDataPoint Value="1"/>
                       <telerik:CategoricalDataPoint Value="0" />
                       <telerik:CategoricalDataPoint Value="1" />
                       <telerik:CategoricalDataPoint Value="1" />
                       <telerik:CategoricalDataPoint Value="1"/>
                       <telerik:CategoricalDataPoint Value="1" />
                       <telerik:CategoricalDataPoint Value="0" />
                       <telerik:CategoricalDataPoint Value="0"/>


                   </telerik:StepLineSeries.DataPoints>

                   <telerik:StepLineSeries.PointTemplate>
                       <DataTemplate >
                           <StackPanel>
                               <!--Fill="{Binding Presenter, Converter={StaticResource SeriesToPaletteColorConverter}}"-->
                               <Rectangle Height="126"  Width="10"     Stroke="Transparent" Fill="Red"  />
                           </StackPanel>
                           <!--<DataTemplate.Triggers>
                               <DataTrigger  Value="1"  Binding="{Binding Index}" >
                                   <Setter Property="Opacity" Value="0.01" />
                               </DataTrigger>
                           </DataTemplate.Triggers>-->
                       </DataTemplate>
                   </telerik:StepLineSeries.PointTemplate>
               </telerik:StepLineSeries>
           </telerik:RadCartesianChart.Series>
   <telerik:RadCartesianChart.Behaviors>
                <telerik:ChartPanAndZoomBehavior ZoomMode="Horizontal" PanMode="Horizontal"   />
                <telerik:ChartSelectionBehavior DataPointSelectionMode="Single"
                                                SelectionChanged="RadChart1_LineSeriesSelectionChanged"/>
            </telerik:RadCartesianChart.Behaviors>

</telerik:RadCartesianChart>
0
Martin Ivanov
Telerik team
answered on 08 Jan 2016, 05:34 PM
Hi Sivakumar,

This behavior is not supported by RadChartView. However, you can achieve your requirement by subscribing for the KeyDown event of the chart and inside its handler change the selected item. To do this, you can get the currently selected item and its index in the DataPoints collection of the series and increment the index with 1 or -1 (based on the pressed key). Then get the data point positioned on the new index and set its IsSelected property to true.

You can take a look at the attached project which contains sample implementation of this approach. But please keep in mind that this is customization and it is not well tested. So, I cannot guarantee that it will work in all expected cases. This is why I recommend you to test it properly if you decide to use it in production.

Regards,
Martin
