Chart and Label's spacing

1 Answer 30 Views
Chart
This is a migrated thread and some comments may be shown as answers.
Johnny
Top achievements
Rank 1
Johnny asked on 11 Nov 2013, 03:00 AM

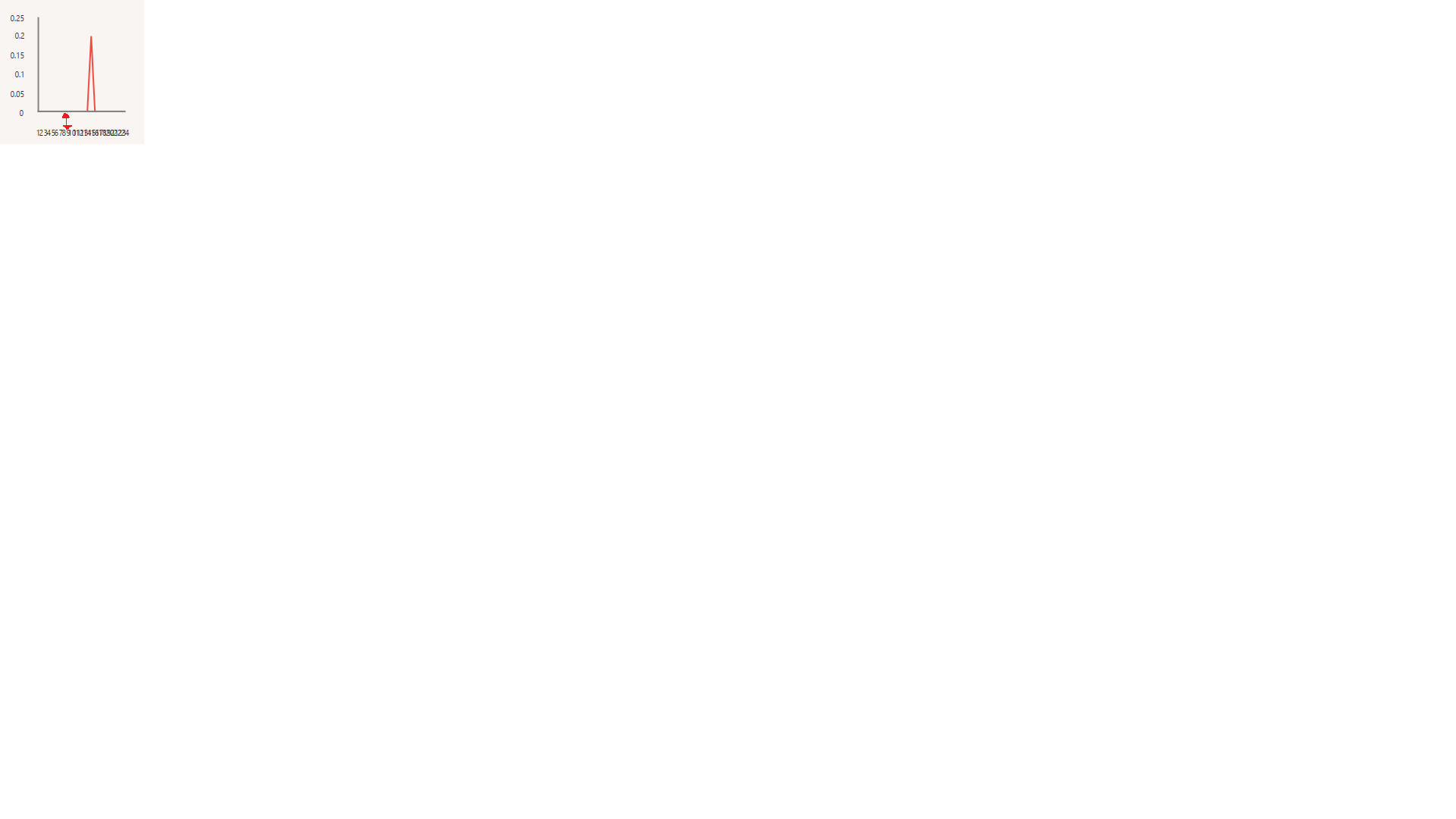

The spacing of "RadCartesianChart" and label is too large(i.e  the attachment)

Can I decrease the spacing  behind C#?

1 Answer, 1 is accepted

Sort by
0
Accepted
Evgenia
Telerik team
answered on 13 Nov 2013, 11:07 AM
Hello Johny,

You can achieve this if you tweak the axis label Margin via LabelTemplate. For example:
   <DataTemplate x:Key="axisLabelTemplate">
            <TextBlock Text="{Binding}"
                           TextAlignment="Center"
                           Margin="0,-2,0,0"/>
        </DataTemplate>

//and the axis where the template gets applied

   <telerik:RadCartesianChart.HorizontalAxis>
                <telerik:LinearAxis x:Name="horizontalAxis"
                                              LabelTemplate="{StaticResource axisLabelTemplate}"
                </telerik:LinearAxis>
  </telerik:RadCartesianChart.HorizontalAxis>

I hope this information helps.

Regards,
Evgenia
Telerik
