When exporting data from a Report to CSV or Excel format, we would like to transform the display data into internal data representation. For example, we will display a User friendly descriptive name on the report, but when exporting data we would like export internal DB equivalent instead (see below). Similarly, we would like to export additional columns during export if appropriate. Let me know if this is possible to do.
Report display
Loan # Field Name
2 From Date
2 To Date
2 Buyer Amount
Exported Data
loan_id uad_audit_field_name
2 l901_from_dt
2 l901_to_dt
2 l901_buyer_amt
Report display
Loan # Field Name
2 From Date
2 To Date
2 Buyer Amount
Exported Data
loan_id uad_audit_field_name
2 l901_from_dt
2 l901_to_dt
2 l901_buyer_amt
3 Answers, 1 is accepted
0
Hi Abhay,
Peter
the Telerik team
There is no out of the box way to customize certain report items or sections according to the used rendering extension. However you can achieve the desired result if you create two similar reports - one with internal DB equivalent, set the Web Report Viewer ShowExportGroup property to False and add your own drop down and export button that will export the internal DB equivalent report to excel.
Greetings,Peter
the Telerik team
0
Abhay
Top achievements
Rank 1
Rank 1
answered on 05 Jan 2011, 12:36 AM
Hello,
Thanks for providing the code sample, that should work for us as far as customizing the export functionality. We are using the WPF ReportViewer control and I was not able to locate the ShowExportGroup property on the WPF ReportViewer, is the property supported only for the Web ReportViewer?

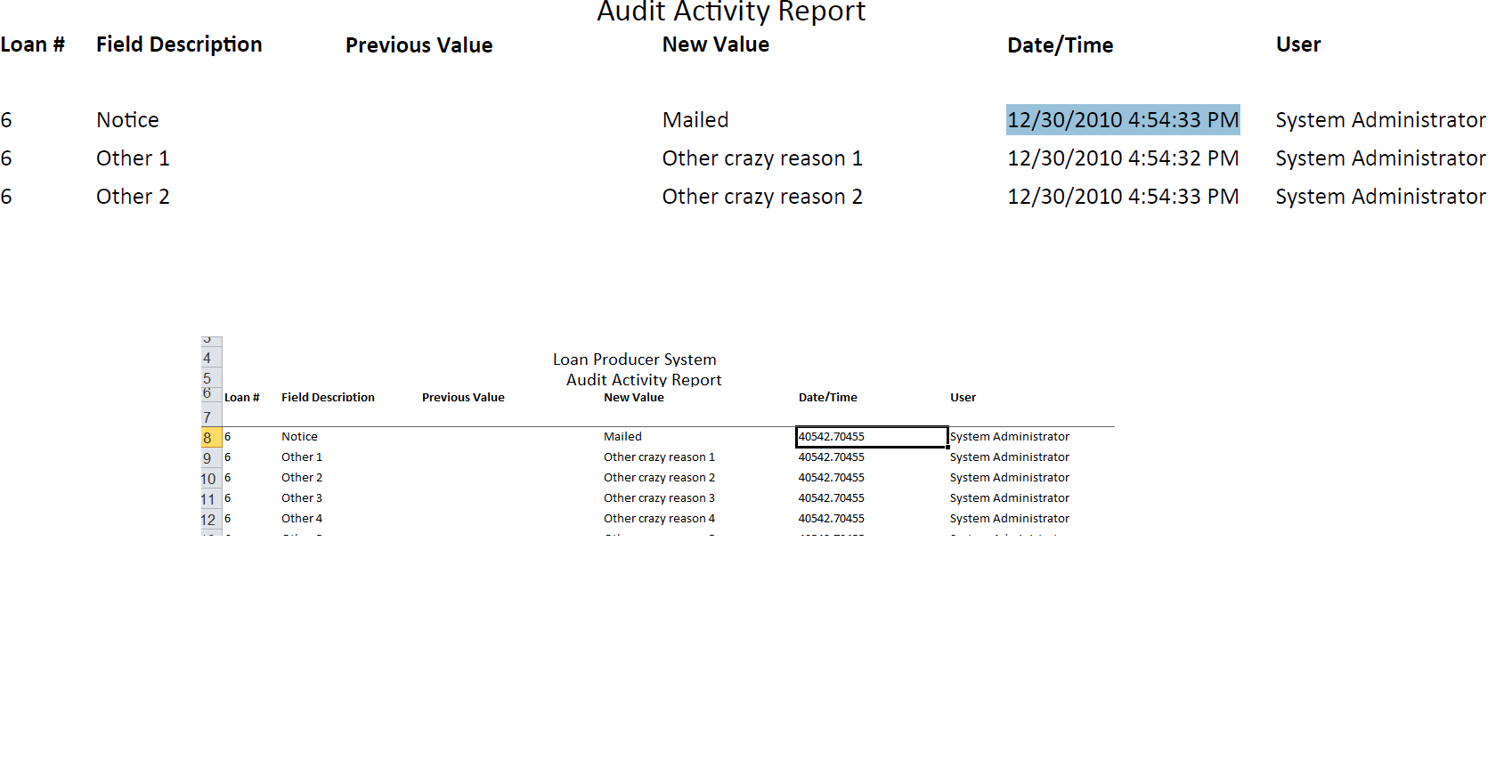

On a separate note, when we are exporting the data into XLS format, the date time does not export appropriately. It shows as "40542.70455" instead of "12/30/2010 4:54:33 PM". I have attached a snapshot of exported files for PDF (working) and XLS (not working). Is this a known issue? If so, do you know if it will be addressed soon?
Thanks for providing the code sample, that should work for us as far as customizing the export functionality. We are using the WPF ReportViewer control and I was not able to locate the ShowExportGroup property on the WPF ReportViewer, is the property supported only for the Web ReportViewer?
On a separate note, when we are exporting the data into XLS format, the date time does not export appropriately. It shows as "40542.70455" instead of "12/30/2010 4:54:33 PM". I have attached a snapshot of exported files for PDF (working) and XLS (not working). Is this a known issue? If so, do you know if it will be addressed soon?
0
Hello Abhay,
The WPF Report Viewer is actually a template, and you can easily modify it with Blend. Thus we have not provided any special properties for modifying the WPF Report Viewer template.
TextBox values are converted to string or number cells in Excel depending on the actual value. If a supported .NET string format is supplied through the Format property of the TextBox, the resulting cell is accordingly formatted respecting the Culture of the TextBox.
Best wishes,
Peter
the Telerik team
The WPF Report Viewer is actually a template, and you can easily modify it with Blend. Thus we have not provided any special properties for modifying the WPF Report Viewer template.
TextBox values are converted to string or number cells in Excel depending on the actual value. If a supported .NET string format is supplied through the Format property of the TextBox, the resulting cell is accordingly formatted respecting the Culture of the TextBox.
Standard DateTime Format Strings
- d (Short date pattern)
- D (Long date pattern)
- t (Short time pattern)
- T (Long time pattern)
- f (Full date/time pattern with short time)
- F (Full date/time pattern with long time)
- g (General date/time pattern with short time)
- G (General date/time pattern with long time)
- M or m (Month day pattern)
- R or r (RFC1123 pattern)
- s (Sortable date/time pattern; conforms to ISO 8601)
- u (Universal sortable date/time pattern)
- U (Universal sortable date/time pattern)
- Y or y (Year month pattern)
Peter
the Telerik team
