Blueprint CSS & ComboBox Display

4 Answers 112 Views
ComboBox
This is a migrated thread and some comments may be shown as answers.
Andrew
Top achievements
Rank 1
Andrew asked on 13 May 2010, 11:19 PM
Like other developers, I'm using the Blueprint CSS framework for layout and to unify CSS across browsers. I'm having an odd display issue where the text inside the combobox is offset vertically (looks like it is bottom aligned rather than middle aligned), and I'm seeing a grey box below it that is about five pixels tall.

For the vertical align issue, I'm guessing that the solution has something to do with overriding either the "RadComboBox" or "RadComboBox_{SkinName}" styles, but I can't seem to get it to work. I also tried to apply a vertical-align on "rcbInputCellLeft" and "rcbInputCellLeft input" to no avail.

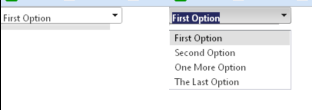

For the grey box issue (I'm using the "Default" skin), I guess it means overriding the "RadComboBoxDropDown_{SkinName}" styles, but again, I've hit a wall.

Any suggestions?

4 Answers, 1 is accepted

Sort by
0
Kamen Bundev
Telerik team
answered on 19 May 2010, 09:37 AM
Hi Andrew,

Thank you for contacting us.

Can you send a sample project or a live URL with this issue isolated and we will help you fix it (you can file a support ticket if you prefer privacy). Thank you in advance for your trouble.

Greetings,
Kamen Bundev
the Telerik team

Do you want to have your say when we set our development plans? Do you want to know when a feature you care about is added or when a bug fixed? Explore the Telerik Public Issue Tracking system and vote to affect the priority of the items.
0
Andrew
Top achievements
Rank 1
answered on 19 May 2010, 06:03 PM
Thanks for your help. I've narrowed it down to the screen.css component of the Blueprint 0.9 framework. I've included my code below, and have attached a screenshot showing how it renders incorrectly. On the left, you'll see a grey box extended below the closed combo box. On the right, the same combobox, but open and the contents floating below with a visual gap. Without the screen.css, everything displays correctly.

The ASPX page:
<%@ Page Language="C#" AutoEventWireup="true" CodeBehind="TelerikTest.aspx.cs" Inherits="bbdo.agency.ProjectName.TelerikTest" %>

<!DOCTYPE html PUBLIC "-//W3C//DTD XHTML 1.0 Transitional//EN" "http://www.w3.org/TR/xhtml1/DTD/xhtml1-transitional.dtd">

<html xmlns="http://www.w3.org/1999/xhtml" >
<head runat="server"
    <title>CSS Test for Telerik</title>
    <link rel="stylesheet" href="screen.css" type="text/css" media="screen, projection" />
</head>
<body>
    <form id="form1" runat="server"
    <telerik:RadScriptManager ID="RadScriptManager1" runat="server"
    </telerik:RadScriptManager>
    <div>
        <telerik:RadComboBox ID="rcbTest" runat="server"
            <Items>
                <telerik:RadComboBoxItem Text="First Option" />
                <telerik:RadComboBoxItem Text="Second Option" />
                <telerik:RadComboBoxItem Text="One More Option" />
                <telerik:RadComboBoxItem Text="The Last Option" />
            </Items>
        </telerik:RadComboBox>
    </div>
    </form>
</body>
</html>


The SCREEN.CSS file:
/* -----------------------------------------------------------------------
 Blueprint CSS Framework 0.9
 http://blueprintcss.org
   * Copyright (c) 2007-Present. See LICENSE for more info.
   * See README for instructions on how to use Blueprint.
   * For credits and origins, see AUTHORS.
   * This is a compressed file. See the sources in the 'src' directory.
----------------------------------------------------------------------- */

/* reset.css */
html, body, div, span, object, iframe, h1, h2, h3, h4, h5, h6, p, blockquote, pre, a, abbr, acronym, address, code, del, dfn, em, img, q, dl, dt, dd, ol, ul, li, fieldset, form, label, legend, table, caption, tbody, tfoot, thead, tr, th, td, article, aside, dialog, figure, footer, header, hgroup, nav, section {margin:0;padding:0;border:0;font-weight:inherit;font-style:inherit;font-size:100%;font-family:inherit;vertical-align:baselinebaseline;}
article, aside, dialog, figure, footer, header, hgroup, nav, section {display:block;}
body {line-height:1.5;}
table {border-collapse:separate;border-spacing:0;}
caption, th, td {text-align:left;font-weight:normal;}
table, td, th {vertical-align:middle;}
blockquote:before, blockquote:after, q:before, q:after {content:"";}
blockquote, q {quotes:"" "";}
a img {border:none;}

/* typography.css */
html {font-size:100.01%;}
body {font-size:75%;color:#222;background:#fff;font-family:"Helvetica Neue"ArialHelveticasans-serif;}
h1, h2, h3, h4, h5, h6 {font-weight:normal;color:#111;}
h1 {font-size:3em;line-height:1;margin-bottom:0.5em;}
h2 {font-size:2em;margin-bottom:0.75em;}
h3 {font-size:1.5em;line-height:1;margin-bottom:1em;}
h4 {font-size:1.2em;line-height:1.25;margin-bottom:1.25em;}
h5 {font-size:1em;font-weight:bold;margin-bottom:1.5em;}
h6 {font-size:1em;font-weight:bold;}
h1 img, h2 img, h3 img, h4 img, h5 img, h6 img {margin:0;}
p {margin:0 0 1.5em;}
p img.left {float:left;margin:1.5em 1.5em 1.5em 0;padding:0;}
p img.rightright {float:rightright;margin:1.5em 0 1.5em 1.5em;}
a:focus, a:hover {color:#000;}
a {color:#009;text-decoration:underline;}
blockquote {margin:1.5em;color:#666;font-style:italic;}
strong {font-weight:bold;}
em, dfn {font-style:italic;}
dfn {font-weight:bold;}
sup, sub {line-height:0;}
abbr, acronym {border-bottom:1px dotted #666;}
address {margin:0 0 1.5em;font-style:italic;}
del {color:#666;}
pre {margin:1.5em 0;whitewhite-space:pre;}
precode, tt {font:1em 'andale mono''lucida console'monospace;line-height:1.5;}
li ul, li ol {margin:0;}
ul, ol {margin:0 1.5em 1.5em 0;padding-left:3.333em;}
ul {list-style-type:disc;}
ol {list-style-type:decimal;}
dl {margin:0 0 1.5em 0;}
dl dt {font-weight:bold;}
dd {margin-left:1.5em;}
table {margin-bottom:1.4em;width:100%;}
th {font-weight:bold;}
thead th {background:#c3d9ff;}
th, td, caption {padding:4px 10px 4px 5px;}
tr.even td {background:#e5ecf9;}
tfoot {font-style:italic;}
caption {background:#eee;}
.small {font-size:.8em;margin-bottom:1.875em;line-height:1.875em;}
.large {font-size:1.2em;line-height:2.5em;margin-bottom:1.25em;}
.hide {display:none;}
.quiet {color:#666;}
.loud {color:#000;}
.highlight {background:#ff0;}
.added {background:#060;color:#fff;}
.removed {background:#900;color:#fff;}
.first {margin-left:0;padding-left:0;}
.last {margin-right:0;padding-right:0;}
.top {margin-top:0;padding-top:0;}
.bottombottom {margin-bottom:0;padding-bottom:0;}

/* forms.css */
label {font-weight:bold;}
fieldset {padding:1.4em;margin:0 0 1.5em 0;border:1px solid #ccc;}
legend {font-weight:bold;font-size:1.2em;}
input[type=text], input[type=password], input.text, input.title, textarea, select {background-color:#fff;border:1px solid #bbb;}
input[type=text]:focus, input[type=password]:focus, input.text:focus, input.title:focus, textarea:focus, select:focus {border-color:#666;}
input[type=text], input[type=password], input.text, input.title, textarea, select {margin:0.5em 0;}
input.text, input.title {width:300px;padding:5px;}
input.title {font-size:1.5em;}
textarea {width:390px;height:250px;padding:5px;}
input[type=checkbox], input[type=radio], input.checkbox, input.radio {position:relative;top:.25em;}
form.inline {line-height:3;}
form.inline p {margin-bottom:0;}
.error, .notice, .success {padding:.8em;margin-bottom:1em;border:2px solid #ddd;}
.error {background:#FBE3E4;color:#8a1f11;border-color:#FBC2C4;}
.notice {background:#FFF6BF;color:#514721;border-color:#FFD324;}
.success {background:#E6EFC2;color:#264409;border-color:#C6D880;}
.error a {color:#8a1f11;}
.notice a {color:#514721;}
.success a {color:#264409;}

/* grid.css */
.container {width:950px;margin:0 auto;}
.showgrid {background:url(src/grid.png);}
.column, .span-1, .span-2, .span-3, .span-4, .span-5, .span-6, .span-7, .span-8, .span-9, .span-10, .span-11, .span-12, .span-13, .span-14, .span-15, .span-16, .span-17, .span-18, .span-19, .span-20, .span-21, .span-22, .span-23, .span-24 {float:left;margin-right:10px;}
.last {margin-right:0;}
.span-1 {width:30px;}
.span-2 {width:70px;}
.span-3 {width:110px;}
.span-4 {width:150px;}
.span-5 {width:190px;}
.span-6 {width:230px;}
.span-7 {width:270px;}
.span-8 {width:310px;}
.span-9 {width:350px;}
.span-10 {width:390px;}
.span-11 {width:430px;}
.span-12 {width:470px;}
.span-13 {width:510px;}
.span-14 {width:550px;}
.span-15 {width:590px;}
.span-16 {width:630px;}
.span-17 {width:670px;}
.span-18 {width:710px;}
.span-19 {width:750px;}
.span-20 {width:790px;}
.span-21 {width:830px;}
.span-22 {width:870px;}
.span-23 {width:910px;}
.span-24 {width:950px;margin-right:0;}
input.span-1, textarea.span-1, input.span-2, textarea.span-2, input.span-3, textarea.span-3, input.span-4, textarea.span-4, input.span-5, textarea.span-5, input.span-6, textarea.span-6, input.span-7, textarea.span-7, input.span-8, textarea.span-8, input.span-9, textarea.span-9, input.span-10, textarea.span-10, input.span-11, textarea.span-11, input.span-12, textarea.span-12, input.span-13, textarea.span-13, input.span-14, textarea.span-14, input.span-15, textarea.span-15, input.span-16, textarea.span-16, input.span-17, textarea.span-17, input.span-18, textarea.span-18, input.span-19, textarea.span-19, input.span-20, textarea.span-20, input.span-21, textarea.span-21, input.span-22, textarea.span-22, input.span-23, textarea.span-23, input.span-24, textarea.span-24 {border-left-width:1px;border-right-width:1px;padding-left:5px;padding-right:5px;}
input.span-1, textarea.span-1 {width:18px;}
input.span-2, textarea.span-2 {width:58px;}
input.span-3, textarea.span-3 {width:98px;}
input.span-4, textarea.span-4 {width:138px;}
input.span-5, textarea.span-5 {width:178px;}
input.span-6, textarea.span-6 {width:218px;}
input.span-7, textarea.span-7 {width:258px;}
input.span-8, textarea.span-8 {width:298px;}
input.span-9, textarea.span-9 {width:338px;}
input.span-10, textarea.span-10 {width:378px;}
input.span-11, textarea.span-11 {width:418px;}
input.span-12, textarea.span-12 {width:458px;}
input.span-13, textarea.span-13 {width:498px;}
input.span-14, textarea.span-14 {width:538px;}
input.span-15, textarea.span-15 {width:578px;}
input.span-16, textarea.span-16 {width:618px;}
input.span-17, textarea.span-17 {width:658px;}
input.span-18, textarea.span-18 {width:698px;}
input.span-19, textarea.span-19 {width:738px;}
input.span-20, textarea.span-20 {width:778px;}
input.span-21, textarea.span-21 {width:818px;}
input.span-22, textarea.span-22 {width:858px;}
input.span-23, textarea.span-23 {width:898px;}
input.span-24, textarea.span-24 {width:938px;}
.append-1 {padding-right:40px;}
.append-2 {padding-right:80px;}
.append-3 {padding-right:120px;}
.append-4 {padding-right:160px;}
.append-5 {padding-right:200px;}
.append-6 {padding-right:240px;}
.append-7 {padding-right:280px;}
.append-8 {padding-right:320px;}
.append-9 {padding-right:360px;}
.append-10 {padding-right:400px;}
.append-11 {padding-right:440px;}
.append-12 {padding-right:480px;}
.append-13 {padding-right:520px;}
.append-14 {padding-right:560px;}
.append-15 {padding-right:600px;}
.append-16 {padding-right:640px;}
.append-17 {padding-right:680px;}
.append-18 {padding-right:720px;}
.append-19 {padding-right:760px;}
.append-20 {padding-right:800px;}
.append-21 {padding-right:840px;}
.append-22 {padding-right:880px;}
.append-23 {padding-right:920px;}
.prepend-1 {padding-left:40px;}
.prepend-2 {padding-left:80px;}
.prepend-3 {padding-left:120px;}
.prepend-4 {padding-left:160px;}
.prepend-5 {padding-left:200px;}
.prepend-6 {padding-left:240px;}
.prepend-7 {padding-left:280px;}
.prepend-8 {padding-left:320px;}
.prepend-9 {padding-left:360px;}
.prepend-10 {padding-left:400px;}
.prepend-11 {padding-left:440px;}
.prepend-12 {padding-left:480px;}
.prepend-13 {padding-left:520px;}
.prepend-14 {padding-left:560px;}
.prepend-15 {padding-left:600px;}
.prepend-16 {padding-left:640px;}
.prepend-17 {padding-left:680px;}
.prepend-18 {padding-left:720px;}
.prepend-19 {padding-left:760px;}
.prepend-20 {padding-left:800px;}
.prepend-21 {padding-left:840px;}
.prepend-22 {padding-left:880px;}
.prepend-23 {padding-left:920px;}
.border {padding-right:4px;margin-right:5px;border-right:1px solid #eee;}
.colborder {padding-right:24px;margin-right:25px;border-right:1px solid #eee;}
.pull-1 {margin-left:-40px;}
.pull-2 {margin-left:-80px;}
.pull-3 {margin-left:-120px;}
.pull-4 {margin-left:-160px;}
.pull-5 {margin-left:-200px;}
.pull-6 {margin-left:-240px;}
.pull-7 {margin-left:-280px;}
.pull-8 {margin-left:-320px;}
.pull-9 {margin-left:-360px;}
.pull-10 {margin-left:-400px;}
.pull-11 {margin-left:-440px;}
.pull-12 {margin-left:-480px;}
.pull-13 {margin-left:-520px;}
.pull-14 {margin-left:-560px;}
.pull-15 {margin-left:-600px;}
.pull-16 {margin-left:-640px;}
.pull-17 {margin-left:-680px;}
.pull-18 {margin-left:-720px;}
.pull-19 {margin-left:-760px;}
.pull-20 {margin-left:-800px;}
.pull-21 {margin-left:-840px;}
.pull-22 {margin-left:-880px;}
.pull-23 {margin-left:-920px;}
.pull-24 {margin-left:-960px;}
.pull-1, .pull-2, .pull-3, .pull-4, .pull-5, .pull-6, .pull-7, .pull-8, .pull-9, .pull-10, .pull-11, .pull-12, .pull-13, .pull-14, .pull-15, .pull-16, .pull-17, .pull-18, .pull-19, .pull-20, .pull-21, .pull-22, .pull-23, .pull-24 {float:left;position:relative;}
.push-1 {margin:0 -40px 1.5em 40px;}
.push-2 {margin:0 -80px 1.5em 80px;}
.push-3 {margin:0 -120px 1.5em 120px;}
.push-4 {margin:0 -160px 1.5em 160px;}
.push-5 {margin:0 -200px 1.5em 200px;}
.push-6 {margin:0 -240px 1.5em 240px;}
.push-7 {margin:0 -280px 1.5em 280px;}
.push-8 {margin:0 -320px 1.5em 320px;}
.push-9 {margin:0 -360px 1.5em 360px;}
.push-10 {margin:0 -400px 1.5em 400px;}
.push-11 {margin:0 -440px 1.5em 440px;}
.push-12 {margin:0 -480px 1.5em 480px;}
.push-13 {margin:0 -520px 1.5em 520px;}
.push-14 {margin:0 -560px 1.5em 560px;}
.push-15 {margin:0 -600px 1.5em 600px;}
.push-16 {margin:0 -640px 1.5em 640px;}
.push-17 {margin:0 -680px 1.5em 680px;}
.push-18 {margin:0 -720px 1.5em 720px;}
.push-19 {margin:0 -760px 1.5em 760px;}
.push-20 {margin:0 -800px 1.5em 800px;}
.push-21 {margin:0 -840px 1.5em 840px;}
.push-22 {margin:0 -880px 1.5em 880px;}
.push-23 {margin:0 -920px 1.5em 920px;}
.push-24 {margin:0 -960px 1.5em 960px;}
.push-1, .push-2, .push-3, .push-4, .push-5, .push-6, .push-7, .push-8, .push-9, .push-10, .push-11, .push-12, .push-13, .push-14, .push-15, .push-16, .push-17, .push-18, .push-19, .push-20, .push-21, .push-22, .push-23, .push-24 {float:rightright;position:relative;}
.prepend-top {margin-top:1.5em;}
.append-bottombottom {margin-bottom:1.5em;}
.box {padding:1.5em;margin-bottom:1.5em;background:#E5ECF9;}
hr {background:#ddd;color:#ddd;clear:both;float:none;width:100%;height:.1em;margin:0 0 1.45em;border:none;}
hr.space {background:#fff;color:#fff;visibility:hidden;}
.clearfix:after, .container:after {content:"\0020";display:block;height:0;clear:both;visibility:hidden;overflow:hidden;}
.clearfix, .container {display:block;}
.clear {clear:both;}

0
Accepted
Kamen Bundev
Telerik team
answered on 20 May 2010, 12:44 PM
Hi Andrew,

On line 80 in your Blueprint screen.css, there is a rule that sets margin-top and bottom to every input with type="text" on the page. Add this rule to one of your CSS files to override it:
.RadComboBox .rcbInput
{
    margin: 0;
}


Sincerely yours,
Kamen Bundev
the Telerik team

Do you want to have your say when we set our development plans? Do you want to know when a feature you care about is added or when a bug fixed? Explore the Telerik Public Issue Tracking system and vote to affect the priority of the items.
0
Andrew
Top achievements
Rank 1
answered on 20 May 2010, 05:58 PM
Brilliant. That fixed the issue.

Thanks so much for your assistance.

~a
Tags
ComboBox
Asked by
Andrew
Top achievements
Rank 1
Answers by
Kamen Bundev
Telerik team
Andrew
Top achievements
Rank 1
Share this question
or
