Bind controls in EditItemTemplate

[JSON]

I have controls in an HTML Table inside an EditItemTemplate of a RADGRID parent control that I need to bind to. I have attempted to bind to the grid and to individual controls unsuccessfully.

[Princy]

Hello Json,

There are three ways to bind the grid to a database.

• Using declarative data source controls - By using declarative data source controls (introduced in ASP.NET 2.0), you can bind the grid declaratively, with no coding necessary.
• Using the NeedDataSource event - RadGrid calls this event each time it needs a data source.
• DataGrid-like binding - You can set the DataSource property manually in the control declaration. This property specifies the database, which is then used as a source for the grid.

Thanks,
Princy.

[JSON]

Does this imply that I cannot populate the dataasoucre via a stored proc as my example showed?

[JSON]

Now I get the following:

unable to cast type 'system.web.ui.radgrid' to 'system.web.ui.radgrid'

[Princy]

Hello Json,

I am not quite sure about the requirement. Please refer to this online demo for an live example of how to bind RadGrid to a DataReader instance.

Thanks,
Princy.

[shrujan]

had a problem with radgrid.
I have added a radgrid  and i can edit and update the data in the radgrid followed by the link buttons.
but im unable to add a new row by clicking a link button in rad grid..
the problem is when ever i click on 'new' linkbutton the previous data gets disabled

[Shinu]

Hello Shrujan,

Have you set the command name property to the link button correctly?

aspx:

<CommandItemTemplate>
      <asp:LinkButton runat="server" ID="AddNew" Text="Add new record" CommandName="InitInsert">
       </asp:LinkButton>
</CommandItemTemplate>

Thnaks,
Shinu.

[JSON]

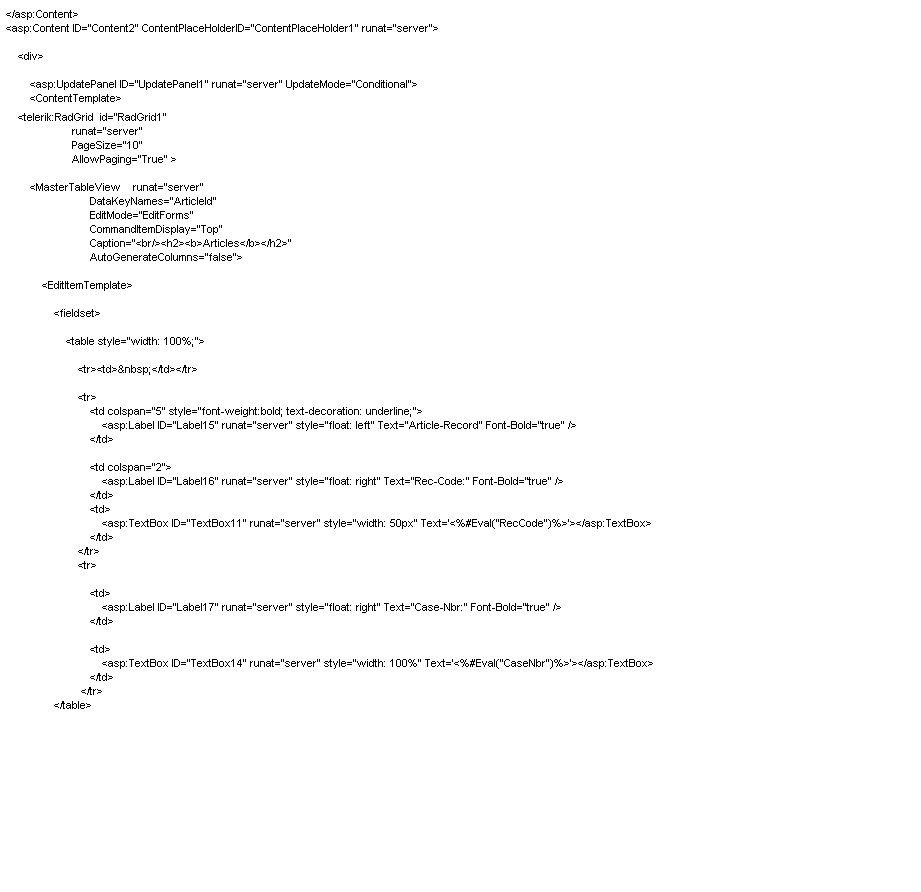

Again, here is the hierarchy I have created within RadGrid that I need to know how to bind data to (EditMode) I have tried a number of different methods to bind, including those suggested by Telerik - without success.

<RadGrid>
    <MasterTableView>
        <EditItemTemplate>
            <table>
                <tr>
                    <td>
                        <Textbox>   //control to bind

[shrujan]

Hello Shinu
Thanks  for ur reply.
Still it sgiving the same error.
when ever i click the link button "add" the grid get disapeared.
please give a solution for this.
i have used the following code.


<%@ Control Language="C#" AutoEventWireup="true" CodeBehind="toeflUserControl.ascx.cs" Inherits="LaunchPadWebPages.UserControls.toeflUserControl" %>
<%@ Register assembly="Telerik.Web.UI" namespace="Telerik.Web.UI" tagprefix="telerik" %>


 <telerik:RadGrid ID="RadGrid2" GridLines="None" runat="server" AllowAutomaticDeletes="True"
            AllowAutomaticInserts="True" AllowAutomaticUpdates="True" AllowPaging="True" OnCancelCommand="Grid_Cancel"
            AutoGenerateColumns="False" OnEditCommand="grdInvoicesStoreStyleSelected_EditCommand"
           AllowMultiRowEdit="True" OnUpdateCommand="RadGrid2_UpdateCommand" OnInsertCommand="insertion">
            <PagerStyle Mode="NextPrevAndNumeric" />
            <MasterTableView Width="100%"  EditMode="InPlace" CommandItemDisplay="Top"
                 HorizontalAlign="NotSet"
                AutoGenerateColumns="False">


                <CommandItemTemplate>
      <asp:LinkButton runat="server" ID="AddNew" Text="Add new record" CommandName="InitInsert" OnClientClick="insertion">
       </asp:LinkButton>
     </CommandItemTemplate>


                <Columns>
                <telerik:GridEditCommandColumn ButtonType="LinkButton" UniqueName="EditCommandColumn">
                    </telerik:GridEditCommandColumn>
                   <telerik:GridBoundColumn DataField="studentid" HeaderText="studentid" SortExpression="studentid"
                        UniqueName="studentid" Visible="false">
                   </telerik:GridBoundColumn>
                    <telerik:GridBoundColumn DataField="Type" HeaderText="Type" SortExpression="Type"
                        UniqueName="Type">
                    </telerik:GridBoundColumn>
                    <telerik:GridBoundColumn DataField="listening" HeaderText="listening"
                        SortExpression="listening" UniqueName="listening">
                    </telerik:GridBoundColumn>
                    <telerik:GridBoundColumn DataField="writing" HeaderText="writing"
                        SortExpression="writing" UniqueName="writing">
                    </telerik:GridBoundColumn>
                    <telerik:GridBoundColumn DataField="reading" HeaderText="reading"
                        SortExpression="reading" UniqueName="reading">
                    </telerik:GridBoundColumn>
                    <telerik:GridBoundColumn DataField="Speaking" HeaderText="Speaking"
                        SortExpression="Speaking" UniqueName="Speaking">
                    </telerik:GridBoundColumn>
                    <telerik:GridBoundColumn DataField="CbtTotal" HeaderText="CbtTotal"
                        SortExpression="CbtTotal" UniqueName="CbtTotal">
                    </telerik:GridBoundColumn>
                    <telerik:GridBoundColumn DataField="PaperTotal" HeaderText="PaperTotal"
                        SortExpression="PaperTotal" UniqueName="PaperTotal">
                    </telerik:GridBoundColumn>
                    <telerik:GridBoundColumn DataField="IbtTotal" HeaderText="IbtTotal"
                        SortExpression="IbtTotal" UniqueName="IbtTotal">
                    </telerik:GridBoundColumn>
                    <telerik:GridBoundColumn DataField="TestDate" HeaderText="TestDate"
                        SortExpression="TestDate" UniqueName="TestDate">
                    </telerik:GridBoundColumn>

                </Columns>

            </MasterTableView>

        </telerik:RadGrid>


[Shinu]

Hello JSON,

You can try the following approach to bind the TextBox control to a datasource field in edit mode.

aspx:

<EditFormSettings EditFormType="Template">
    <FormTemplate>
          <asp:TextBox ID="text" Text='<%# Bind("Name") %>'
                 runat="server" Visible="true"></asp:TextBox>
   </FormTemplate>
</EditFormSettings>

Also check the following demo which discusses a similar scenario.
Grid / Form Template Edit Form.

Thanks,
Shinu.

[JSON]

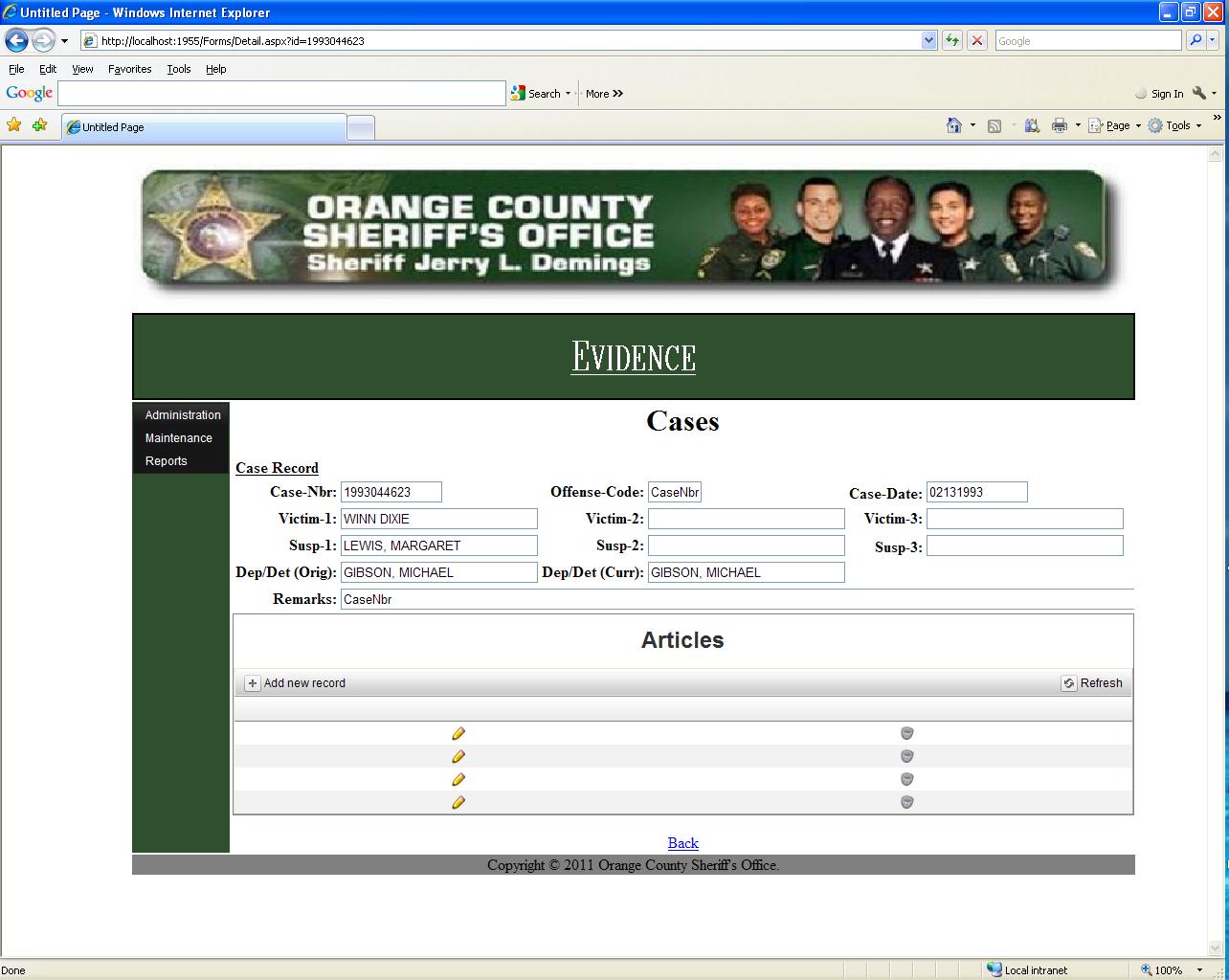

Tried your suggestion and the recommended demo. It appears to have bound the controls, yet nothig is displayed

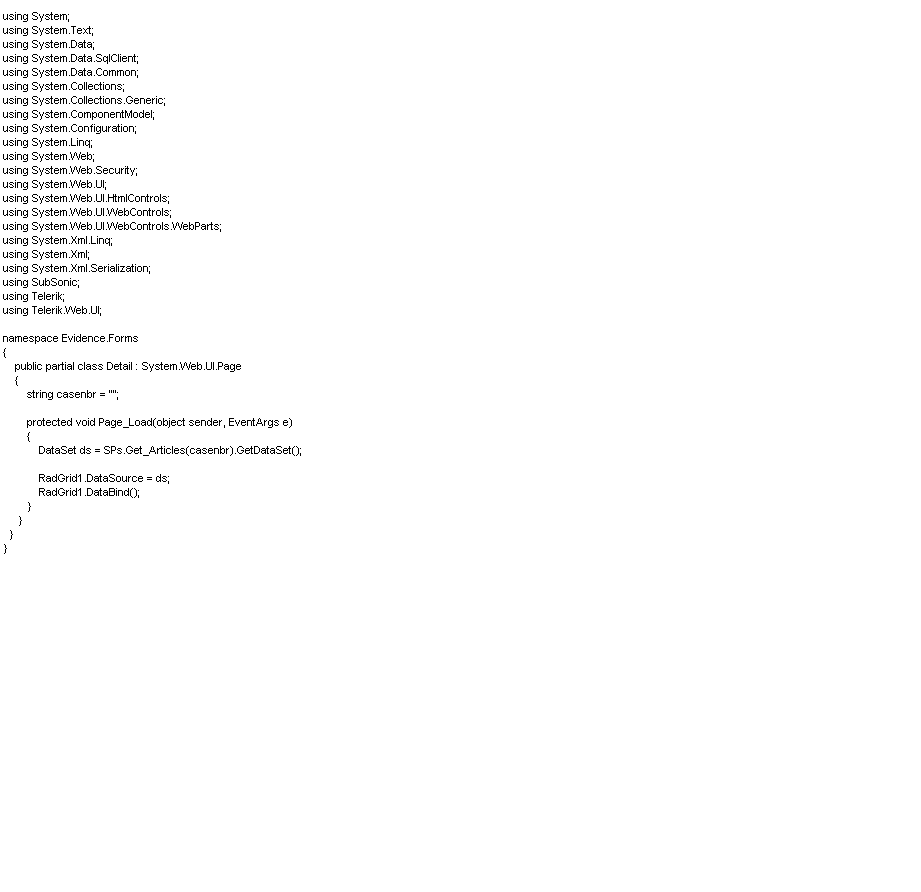

I initially apply the results of a stored proc to the data source and bind on Page Load, then apply the two way binding                       '<%# Bind("text") %>' as suggested, but no data content is visiible on rendered page.



protected void Page_Load(object sender, EventArgs e)



{



if (!Page.IsPostBack)



{

string casenbr = Request.QueryString[

"id"].ToUpper();





// get list of articles





DataSet ds = SPs.Get_Articles(casenbr).GetDataSet();



RadGrid1.DataSource = ds;

RadGrid1.DataBind();

}
}
}
}
-----------------------------------------------------------------------------------------------------



<telerik:RadGrid id="RadGrid1"





runat="server"





PageSize="10"





AllowSorting="True"





AutoGenerateColumns="False"





GridLines="Both"





AllowAutomaticDeletes="True"





AllowAutomaticInserts="True"





AllowAutomaticUpdates="True"





PagerStyle-HorizontalAlign="Center"





ShowStatusBar="True"





AllowMultiRowSelection="True"





AllowMultiRowEdit="True"





OnItemInserted="RadGrid1_ItemInserted"





OnItemUpdated="RadGrid1_ItemUpdated"





OnInsertCommand="RadGrid1_ItemInsert"





OnUpdateCommand="RadGrid1_ItemUpdate"





AllowPaging="True" >







<MasterTableView DataKeyNames="CaseNbr"





EditMode="PopUp"





AutoGenerateColumns="False"





CommandItemDisplay="Top" TableLayout="Auto"





EditItemStyle-HorizontalAlign="Justify"





Caption="<br/><h2><b>Articles</b></h2>">





<EditFormSettings>





<EditColumn UniqueName="EditCommandColumn" ButtonType="ImageButton"





CancelImageUrl="~/Images/filterCancel.png"





UpdateImageUrl="~/Images/selecttag.png"





InsertImageUrl="~/Images/add-icon[2].png"





EditImageUrl="~/Images/edit-icon[1].png" >





</EditColumn>





</EditFormSettings>





<EditFormSettings EditFormType="Template">





<FormTemplate>







<table>







<tr>





<td><asp:Label runat="server" ID="Label1" Text="Case Nbr:"></asp:Label></td>





<td><asp:TextBox ID="TextBox1" runat="server" Text='<%# Bind("CaseNbr") %>'></asp:TextBox></td>







<td><asp:Label runat="server" ID="Label5" Text="Item:"></asp:Label></td>





<td><asp:TextBox ID="TextBox13" runat="server" Text='<%# Bind("Item") %>'></asp:TextBox></td>







<td><asp:Label runat="server" ID="Label15" Text="Article:"></asp:Label></td>





<td><asp:TextBox ID="TextBox11" runat="server" Text='<%# Bind("Article") %>'></asp:TextBox></td>







<td><asp:Label runat="server" ID="Label16" Text="Entry Date:"></asp:Label></td>





<td><asp:TextBox ID="TextBox14" runat="server" Text='<%# Bind("EntryDate") %>'></asp:TextBox></td>





</tr>







<tr>





<td><asp:Label runat="server" ID="Label17" Text="Category Code:"></asp:Label></td>





<td><asp:TextBox ID="TextBox15" runat="server" Text='<%# Bind("Category") %>'></asp:TextBox></td>







<td><asp:Label runat="server" ID="Label18" Text="Discov-By:"></asp:Label></td>





<td><asp:TextBox ID="TextBox16" runat="server" Text='<%# Bind("DiscoveredBy") %>'></asp:TextBox></td>







<td><asp:Label runat="server" ID="Label19" Text="Owner:"></asp:Label></td>





<td colspan="2"><asp:TextBox ID="TextBox17" runat="server" Text='<%# Bind("Owner") %>'></asp:TextBox></td>





</tr>





</table>
</formtemplate>
</editFormSettings>

[shrujan]

Hello Shinu
How Can i Add a Required field validators to my Radgrid..

[Princy]

Hello Shrujan,

Check the following help documentation which explains adding validators to RadGrid.
Validation.

Thanks,
Princy.

[JSON]

Using some of the provided examples, I was able to resolve my issue.

Thanks,

JSON
