Hi,
We have a Kendo Grid bound to a ViewModel with a string value that can be null. If we use NullValueHandling.Include in our MVC project Startup NewtonsoftJson.SerializerSettings:
.AddNewtonsoftJson(o =>
{
o.SerializerSettings.ContractResolver = new DefaultContractResolver();
o.SerializerSettings.NullValueHandling = NullValueHandling.Include;
})this results in the null value being included in the Grid Multi Filter (see attached). If we use NullValueHandling.Ignore, this results in no value being included in the Grid Multi Filter and we can't filter on empty values. This seems odd, as the Grid is bound to a ViewModel which has the property declared on it. In KendoReact Grids, the value is correctly included in the Grid Multi Filter as 'undefined' when using NullValueHandling.Ignore e.g. https://stackblitz.com/edit/react-ycmafw?file=app%2Fproducts.json.
- Is there any way to force the ASP.NET Core Grid to include the property as undefined?
- If not, is there any way to add a custom item to the Grid Multi Filter list that will match undefined values?
Kind regards,
David
1 answer
92 views
currently i have a chart line and i have specified the color for each element in it from the store proc , but for some reason the lines connecting the timelines on the chart are different colors , only the The dot right at the landmark is the correct color I specified.
Here is my code
Please help me!
Here is my code
@(Html.Kendo().Chart<Commsights.Data.DataTransferObject.DashbroadDataTransfer>()
.Name("LineChart_Customer_Processed")
.DataSource(dataSource => dataSource
.Read(read => read.Action("Chart_CountData_DaXuLyTolist", "Dashbroad").Data("FilterCompany"))
.Group(group => group.Add(model => model.CompanyName))
.Sort(sort => sort.Add(model => model.DatePublish).Ascending())
)
.Events(events => events.SeriesClick("onSeriesClick"))
.Theme("material")
.Series(series =>
{
series.Line(model => model.ID_Count)
.Name("#= group.value #")
.Style(ChartSeriesStyle.Smooth)
.CategoryField("DatePublish")
.Tooltip(tooltip => tooltip
.Visible(true)
.Template("#= kendo.toString(category, 'MM/dd') # - #= value # (#= series.name # Article)"))
.Width(3).Opacity(0.6)
.ColorField("Color");
})
.Legend(legend => legend
.Position(ChartLegendPosition.Bottom)
)
.ValueAxis(axis => axis.Numeric()
.Labels(labels => labels
.Format("{0}")
.Skip(2)
.Step(2)
)
)
.CategoryAxis(axis => axis
.BaseUnit(ChartAxisBaseUnit.Days)
.Labels(labels => labels
.DateFormats(formats => formats.Months("MM/dd"))
.Rotation(-45)
)
)
.HtmlAttributes(new { style = "width: 100%; height: 400px;" })
)
Georgi Denchev
Telerik team
answered
on
23 Jun 2023
2 answers
228 views
here is my code
I used colorfield() to specify the color of the elements on the chart but I don't understand why the dots at the landmarks are the correct color I specified to load from the store proc, but the lines connect them together wrong color.
Pls help me.
@(Html.Kendo().Chart<Commsights.Data.DataTransferObject.DashbroadDataTransfer>()
.Name("LineChart_Customer_Processed")
.DataSource(dataSource => dataSource
.Read(read => read.Action("Chart_CountData_DaXuLyTolist", "Dashbroad").Data("FilterCompany"))
.Group(group => group.Add(model => model.CompanyName))
.Sort(sort => sort.Add(model => model.DatePublish).Ascending())
)
.Events(events => events.SeriesClick("onSeriesClick"))
.Theme("material")
.Series(series =>
{
series.Line(model => model.ID_Count)
.Name("#= group.value #")
.Style(ChartSeriesStyle.Smooth)
.CategoryField("DatePublish")
.Tooltip(tooltip => tooltip
.Visible(true)
.Template("#= kendo.toString(category, 'MM/dd') # - #= value # (#= series.name # Article)"))
.Width(3).Opacity(0.6)
.ColorField("Color");
})
.Legend(legend => legend
.Position(ChartLegendPosition.Bottom)
)
.ValueAxis(axis => axis.Numeric()
.Labels(labels => labels
.Format("{0}")
.Skip(2)
.Step(2)
)
)
.CategoryAxis(axis => axis
.BaseUnit(ChartAxisBaseUnit.Days)
.Labels(labels => labels
.DateFormats(formats => formats.Months("MM/dd"))
.Rotation(-45)
)
)
.HtmlAttributes(new { style = "width: 100%; height: 400px;" })
)I used colorfield() to specify the color of the elements on the chart but I don't understand why the dots at the landmarks are the correct color I specified to load from the store proc, but the lines connect them together wrong color.
Pls help me.
Alexander
Telerik team
answered
on
22 Jun 2023
1 answer
977 views
I am using the Image Browser in Kendo Editor for our Razor Pages and the images we upload are stored to a blob. But When I try to get the thumbnail using transport.thumbnail all I see is a loading wheel on the k-file-preview.
How do I get the thumbnail as a image preview instead of the spinning wheel.
How do I get the thumbnail as a image preview instead of the spinning wheel.
Say I am uploading an Image - k-file-preview shows this link --> https://demos.telerik.com/aspnet-mvc/imagebrowser/thumbnail?path=thumbnail1.jpg
and upon insert the image into the editor the image url shows as --> https://demos.telerik.com/aspnet-mvc/content/userfiles/images/thumbnail1.jpg
does this mean we have thumbnails for the uploaded image stored in another folder, and upon calling thumbnail path it looks for the path n gives the preview??
then again for asp .net core i see k-listview-item i do not see a k-file-preview but on asp .net mvc and for jQuery I can see the thumbnail on demo --> https://demos.telerik.com/aspnet-mvc/editor/imagebrowser
Mihaela
Telerik team
answered
on
20 Jun 2023
1 answer
1.2K+ views
Hello good day.
I have a KendoGrid where there are two rows for each record, the first two fields are repeated, I would like to merge two cells and make a single row with them, but the rest of the fields belonging to those records remain in their two different rows.

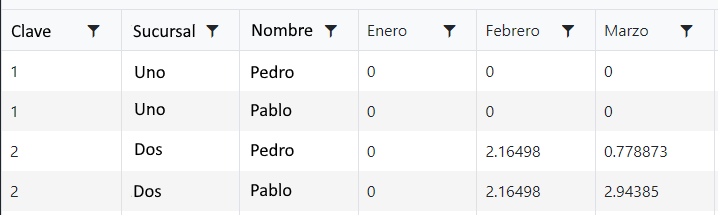

I show how it looks right now:

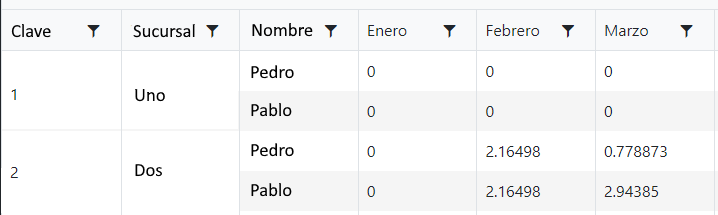

I show how I want it to look:
Thank you so much.
Alexander
Telerik team
answered
on
20 Jun 2023
1 answer
400 views
Hi, I want to create a shared data source that I can then apply filtering to. This data source should be initialised from a property on the Razor page model.
With a Grid you can do this:
Html.Kendo().Grid(Model.Devices)
But I can't figure out the equivalent for the DataSource. This is not allowed...
Html.Kendo().DataSource<DeviceAggregate>(Model.Devices)
.Name("devicesDataSource")
Stoyan
Telerik team
answered
on
19 Jun 2023
1 answer
269 views

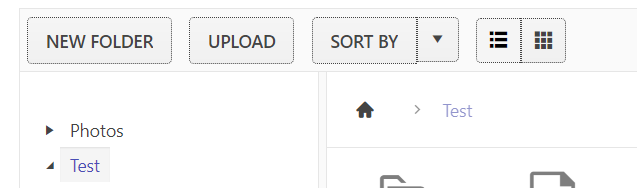

We have a custom command in a UI for ASP.NET Core FileManager control that states the icon as a simple textual name which worked fine in 2023.1.117
items.Add("").Type("button").Name("refresh").Icon("reload").Text("Refresh").Click("onRefresh").HtmlAttributes(new { style = "margin-left: 5px;" });
Stoyan
Telerik team
answered
on
19 Jun 2023
1 answer
194 views
Hi All,
I have a problem. I've a not working grid. I do a compilated query for get the data but the data never gets loaded in the grid.
What is the error? Thanks in advance for any help.
Content of controller
using DataLayerIAccess.Repository;
using DataLayerIAccess.Repository.Queries;
using Kendo.Mvc.Extensions;
using Kendo.Mvc.UI;
using Microsoft.AspNetCore.Mvc;
using System.Linq;
using System.Threading.Tasks;
using WebViewerIAccess.Models;
namespace WebViewerIAccess.Controllers
{
public class GridController : Controller
{
private readonly IAccessDbContext _context;
public GridController(IAccessDbContext context)
=> _context = context;
public async Task<IActionResult> ElencoPresenze_Read([DataSourceRequest] DataSourceRequest request)
{
var elencoPresenze = (await _context.GetElencoPresenze(0, 10)).ToList();
var presenzeViewModel = Utilities.MapFromAType<PresenzeModel>(elencoPresenze);
var dsResult = presenzeViewModel.ToDataSourceResult(request);
return Json(dsResult);
}
Content of .cshtml
@{
ViewData["Title"] = "Presenze";
}
<div class="text-center">
@(Html.Kendo().Grid<WebViewerIAccess.Models.PresenzeModel>()
.Name("grid")
.Columns(c => {
c.Bound(p => p.ID);
c.Bound(p => p.Nome);
c.Bound(p => p.Cognome);
c.Bound(p => p.Giorno);
c.Bound(p => p.Reparto);
}) .Pageable(p => p
.PageSizes(new[] { 10, 20, 50 })
.Refresh(true)
.Responsive(true))
.Sortable()
.Filterable()
.Scrollable()
.Groupable()
.DataSource(ds => ds
.Ajax()
.Batch(true)
.PageSize(20)
.AutoSync(true)
.ServerOperation(false)
.Events(e => e.Error("error_handler"))
.Model(m => {
m.Field(p => p.ID);
m.Field(p => p.Nome);
m.Field(p => p.Cognome);
})
.AutoSync(true)
.Read(r => r.Action("ElencoPresenze_Read", "Grid"))
</div>
<script type="text/javascript">
function error_handler(e) {
if (e.errors) {
var message = "Errors:\n";
$.each(e.errors, function (key, value) {
if ('errors' in value) {
$.each(value.errors, function () {
message += this + "\n";
});
}
});
alert(message);
}
}
</script>
Content of Model
using System;
namespace WebViewerIAccess.Models
{
public class PresenzeModel
{
public int ID { get; set; }
public string Nome { get; set; }
public string Cognome { get; set; }
public DateTime Giorno { get; set; }
public string Reparto { get; set; }
}
}
thank you
Aleksandar
Telerik team
answered
on
16 Jun 2023
1 answer
233 views
I am relatively new to ASP.Net core (.net6) and I am trying to bind the Kendo scheduler with my existing data source.
Background: I am tasked with replacing outdated javascript tools for our "shipping scheduler", which is very similar to the Telerik Scheduler Timeline view.

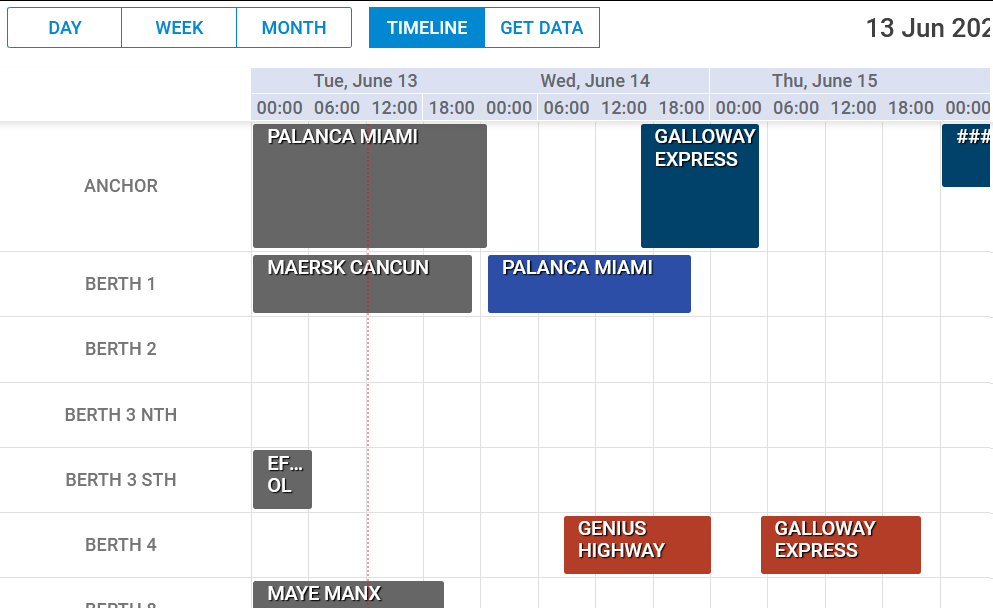

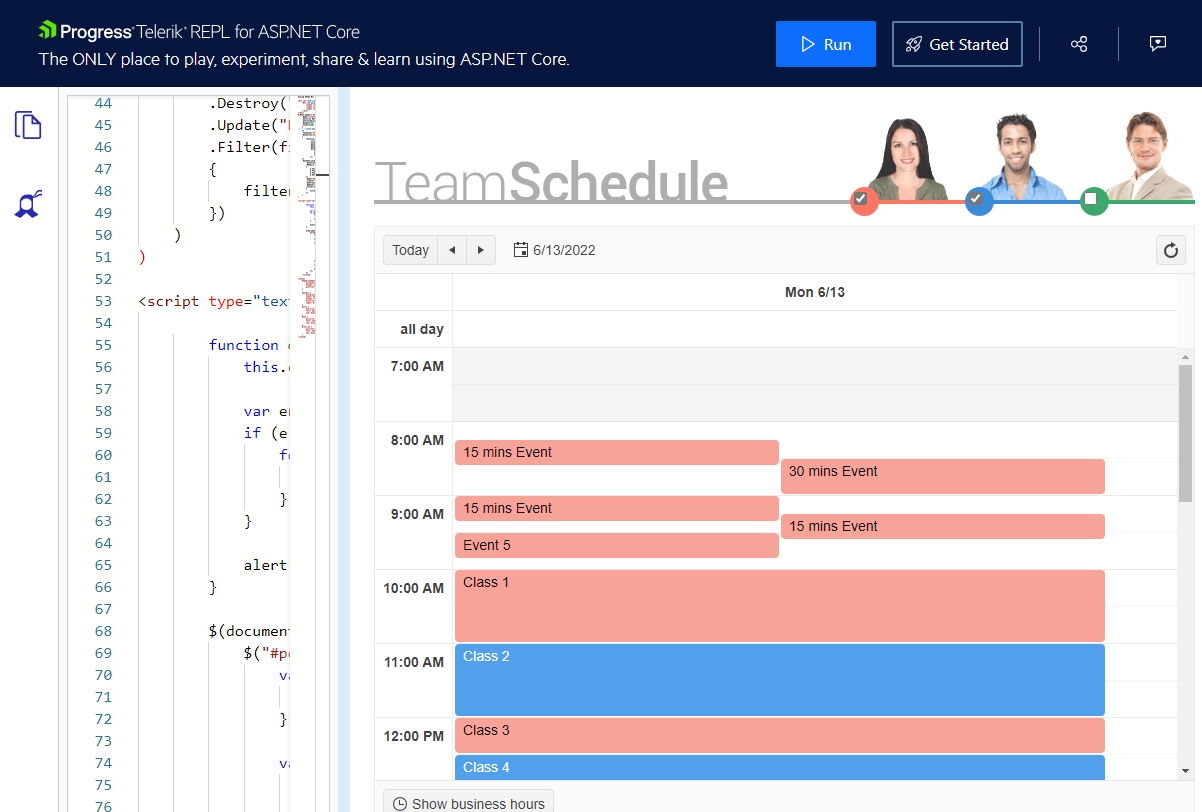

Here is an example of what I am trying to achieve...
The data source is a simple API source from the web (for example https://mydomain.com/datasource), with the following structure:
namespace ShippingSchedulerApp.Models
{
public class SchedulerEvent
{
public long ID { get; set; }
public DateTime? start_date { get; set; }
public DateTime? end_date { get; set; }
public string? text { get; set; }
public string? shipclass { get; set; }
public decimal? beam { get; set; }
public string? sectionID { get; set; }
public string? flag { get; set; }
public string? country { get; set; }
public string? visitnumber { get; set; }
public int? visitid { get; set; }
public int? imo { get; set; }
public string? details { get; set; }
public string? cargo { get; set; }
public decimal? duration { get; set; }
public decimal? loa { get; set; }
public string? stevedore { get; set; }
}
}
If someone could point me to a demo or a sample way of connecting the above to the Telerik Scheduler Timeline view, that would be great.
Thanks
5 answers
367 views
I find myself having a heck of a time getting started with the scheduler. Is there a SIMPLE getting started example that explains how to use the scheduler? All I am looking to do is to have a monthly view and be able to display availability of items. An item could be, for example, a room at a hotel. I won't be doing anything more granular than day level scheduling. I want to block out a date on the calendar for an item. That's it. Once I can figure out how to do that, I can dig deeper myself.
Any guidance would be greatly appreciated.
