Added Custom Header Row - How Do I Apply Your "Sorted" CSS Class To It?

[Sir]

Telerik.Web.UI v2010.3.1109.35

We have a radgrid (Theme/Skin="Windows7") and we've added a custom header row like this:

// ***** Add Grid Header Summary Row *****
GridItem[] header = this.MyWorkRadGrid.MasterTableView.GetItems(GridItemType.Header);
//get the current THead element
GridTHead head = ((GridTHead)header[0].Parent.Controls[1].Parent);

//create a new GridHeaderItem which will be the new row
GridHeaderItem newHeaderItem = new GridHeaderItem(this.MyWorkRadGrid.MasterTableView, 0, 0);
newHeaderItem.Cells.Add(new GridTableHeaderCell() { Text = " " });
newHeaderItem.Cells.Add(new GridTableHeaderCell() { Text = " " });
newHeaderItem.Cells.Add(new GridTableHeaderCell() { Text = count, ColumnSpan = 5, Width = new Unit(100, UnitType.Percentage), HorizontalAlign = HorizontalAlign.Left, VerticalAlign = VerticalAlign.Middle });

for (int i = 0; i < head.Controls.Count; i++)
{
    // loop through the header controls collection and find the 'row' that has the same type of GridHeaderItem
    // Then insert the new row just above it - remember the 0 based index will push the original header row down
    if (head.Controls[i].GetType() == newHeaderItem.GetType())
    {
        head.Controls.AddAt(i, newHeaderItem);
    }
}

Our custom inserted header row takes on the windows 7 grid theme, which is cool.
But my boss wants to see if we can style this custom row with your existing "sorted by" column css style - which is like a split gradient.

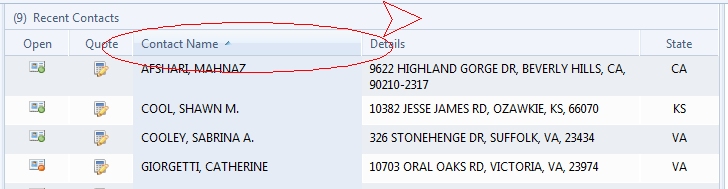

If you look at the attached image (the customer data is fake data) -
The grid data is sorted by the "Contact Name" column, and so that column header has one of your css classes on it (circled in red)
The custom header I added is the one with the text "(9) Recent Contacts" (red arrow) and that is the row we want your sorted css class on.

Thanks,
Ray

[Iana Tsolova]

Hi,

The sort icon in the grid header is an image button which is either inivible or takes one of the following classes when the respective column is sorted: rgSortAsc, rgSortDesc.
You can try setting the classes and the visibility of your custom button in the SortCommand/ItemCommand event of the grid for the column which is being sorted.

Kind regards,
Iana
the Telerik team
