Export to PDF

[Ranjith]

Hi,

I am trying to export PDF from my RadGrid and its exporting successfully. But i am facing some design issues in the exported PDF file.

1. All the text are coming with Hyperlinks in the exported PDF.
2. Set the Forecolor and width, which are not getting reflected in the exported PDF.

Below is my c# code

protected void btnExportToPDF_Click(object sender, ImageClickEventArgs e)
        {
            ApplyStylesToPDFExport(RadGrid1.MasterTableView);
            RadGrid1.ExportSettings.OpenInNewWindow = true;
            RadGrid1.ExportSettings.IgnorePaging = true;
            RadGrid1.ExportSettings.FileName = "Test";
            RadGrid1.MasterTableView.ExportToPdf();
        }

private void ApplyStylesToPDFExport(GridTableView view)
        {
            GridItem headerItem = view.GetItems(GridItemType.Header)[0];
            foreach (TableCell cell in headerItem.Cells)
            {
        switch (cell.Text)
                {
                    case "A":
                        cell.Width = Unit.Pixel(5); // Tried like this. Not reflecting
                        break;
                    case "B":
                        cell.Style["width"] = "15px"; // Tried like this. Not reflecting
                        break;
        }
                cell.Style["font-family"] = "Verdana";
                cell.Style["font-bold"] = "true";
                cell.Style["text-align"] = "left";
                cell.Style["vertical-align"] = "middle";
                cell.Style["font-size"] = "8px";
                cell.ForeColor = System.Drawing.Color.Black; // Tried like this. Not reflecting

            }
            GridItem[] dataItems = view.GetItems(GridItemType.Item);
            foreach (GridItem item in dataItems)
            {
                foreach (TableCell cell in item.Cells)
                {
                    cell.Style["font-family"] = "Verdana";
                    cell.Style["text-align"] = "left";
                    cell.Style["vertical-align"] = "left";
                    cell.Style["font-size"] = "6px";
                    cell.Style["text-decoration"] = "none"; // Tried like this. Not reflecting

                    cell.Style["ForeColor"] = "#000";
                }
            }
            dataItems = view.GetItems(GridItemType.AlternatingItem);
            foreach (GridItem item in dataItems)
            {
                foreach (TableCell cell in item.Cells)
                {
                    cell.Style["font-family"] = "Verdana";
                    cell.Style["text-align"] = "left";
                    cell.Style["vertical-align"] = "middle";
                    cell.Style["font-size"] = "6px";
                    cell.Style["text-decoration"] = "none";
                    cell.ForeColor = System.Drawing.Color.Black;
                }
            }
        }

Please advise.

Thanks
Ranjith

[Princy]

Hi Ranjith,

Please use the ItemCreated event to call the function ApplyStylesToPDFExport(). Please try the code as follows:

C#:

bool IsExport = false;
protected void PDFbtn_Click(object sender, EventArgs e)
{
    IsExport = true;
    RadGrid1.MasterTableView.GetColumn("ColumnUniqueName").Visible = false; //To hide a column during export
    . . . .
    RadGrid1.MasterTableView.ExportToPdf();
}

protected void RadGrid1_ItemCreated(object sender, GridItemEventArgs e)
{
    if (IsExport)
    {
        ApplyStylesToPDFExport(e.Item);
    }
}
private void ApplyStylesToPDFExport(GridItem item)
{
    if (item is GridHeaderItem)
        foreach (TableCell cell in item.Cells)
        {
            cell.Style["font-family"] = "Verdana";
            cell.Style["text-align"] = "left";
            cell.Style["font-size"] = "6pt";
            cell.ForeColor = System.Drawing.Color.Blue;
        }
    if (item is GridDataItem)
    {
        item.Style["font-size"] = "6px";
        item.ForeColor = item.ItemType == GridItemType.AlternatingItem ? Color.Red : Color.BlueViolet;
    }
}

Hope this helps.Please try and let me know if any concerns.
Thanks,
Princy

[Ranjith]

Hi Princy,

Thanks for your help.

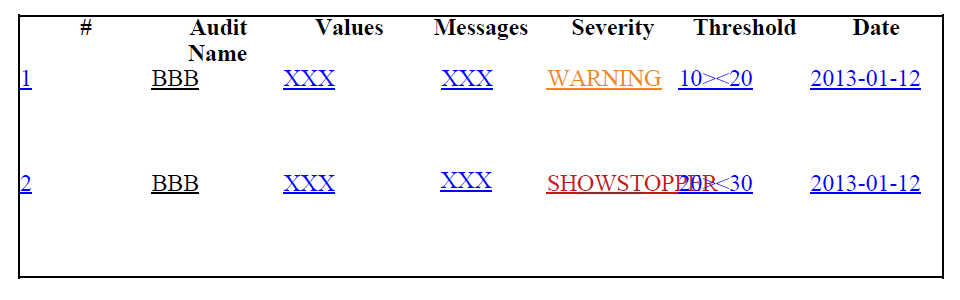

I tried the same, still its not reflecting in the exported PDF. I am attaching the screen shot for your reference how the exported PDF look likes.

Thanks
Ranjith

[Princy]

Hi Ranjith,

I'm not able to replicate the issue, below is a sample code snippet that i tried, please try and see if the issue exists. Please provide your aspx code to further look into this issue.

ASPX:

<telerik:RadGrid ID="RadGrid1" runat="server" AutoGenerateColumns="true" OnNeedDataSource="RadGrid1_NeedDataSource"
    ShowFooter="true" ShowHeader="true" OnItemCreated="RadGrid1_ItemCreated">
    <MasterTableView CommandItemDisplay="Top">
    </MasterTableView>
</telerik:RadGrid>
<asp:Button ID="PDFbtn" runat="server" Text="Export To PDF" OnClick="PDFbtn_Click" />

C#:

bool IsExport = false;
protected void RadGrid1_NeedDataSource(object sender, GridNeedDataSourceEventArgs e)
{
    DateTime dt = DateTime.Now;

    dynamic data = new[] {
            new { ID = 1, Name ="Name_1", customdate=dt,NO = 11.00,CustomerId="ALFKI34",Stock=20,IsSysAdmin = true},
            new { ID = 2, Name = "Name2", customdate=dt,NO = 11.00,CustomerId="ALFKI2",Stock=30,IsSysAdmin = false},
            new { ID = 3, Name = "Name3", customdate=dt,NO = 11.00,CustomerId="ALFKI1",Stock=20,IsSysAdmin = true},
            new { ID = 4, Name = "Name4", customdate=dt,NO = 11.44,CustomerId="ALFKI6",Stock=40,IsSysAdmin = true},
            new { ID = 5, Name = "Name5", customdate=dt,NO = 10.4,CustomerId="ALFKI7",Stock=20,IsSysAdmin = true}
        };

    RadGrid1.DataSource = data;
}

protected void PDFbtn_Click(object sender, EventArgs e)
{
    IsExport = true;
    RadGrid1.ExportSettings.OpenInNewWindow = true;
    RadGrid1.ExportSettings.IgnorePaging = true;
    RadGrid1.ExportSettings.FileName = "Test";
    RadGrid1.MasterTableView.ExportToPdf();
}
protected void RadGrid1_ItemCreated(object sender, GridItemEventArgs e)
{
    if (IsExport)
        ApplyStylesToPDFExport(e.Item);

}
private void ApplyStylesToPDFExport(GridItem item)
{
    if (item is GridHeaderItem)
        foreach (TableCell cell in item.Cells)
        {
            cell.Style["font-family"] = "Verdana";
            cell.Style["text-align"] = "left";
            cell.Style["font-size"] = "6pt";
            cell.ForeColor = System.Drawing.Color.Blue;
        }
    if (item is GridDataItem)
    {
        item.Style["font-size"] = "6px";
        item.ForeColor = item.ItemType == GridItemType.AlternatingItem ? Color.Red : Color.BlueViolet;
    }
}

Thanks,
Princy

[Ranjith]

Hi Princy,

Thanks for your help. I found what's my issue.
Hyperlink will come if we are using TemplateColumn. I changed to GridBoundColumn.

Thanks & Regards
Ranjith
