RadGrid Filter

15 Answers 119 Views
Grid
This is a migrated thread and some comments may be shown as answers.
Farjana
Top achievements
Rank 1
Farjana asked on 05 Dec 2013, 09:06 AM
Hi,

I have a radGrid on my aspx page, where filters on columns should have default function as "Contains". I am able to do this in grid's itemdatabound event. when the user searches from filter box it should check for "Contains", but he can use other filter functions like "starts with" and "ends with' by clicking on filter icon. But after typing search value, he chooses say for ex. "Ends with" from filter menu, the results should be bound with items matching "ends with" search text. Soon after the results are bound, filter function should change to "Contains". Help me with this



Thanks,
Farjana

15 Answers, 1 is accepted

Sort by
0
Accepted
Princy
Top achievements
Rank 1
answered on 05 Dec 2013, 10:54 AM
Hi Farjana,

I guess after any filter you want "Contains" filter-function to be selected in the options, for that set the CurrentFilterFunction property in the Page_PreRender event for the page as follows:

C#:
protected override void OnPreRender(EventArgs e)
{
  base.OnPreRender(e);
  GridColumn column = RadGrid1.MasterTableView.GetColumnSafe("ColumnUniqueName");
  column.CurrentFilterFunction = GridKnownFunction.Contains;
  RadGrid1.Rebind();
}

Thanks,
Princy

0
Farjana
Top achievements
Rank 1
answered on 07 Jan 2014, 06:48 AM
Hi Princy,

Thanks for the previous solution. It worked.

Another Clarification: I have a radgrid. In the itemDatabound event of the radgrid, I want to find the column name to which the GridDataItem belongs to.

Can you  please tell me how to do?


Thanks,
Farjana
0
Princy
Top achievements
Rank 1
answered on 07 Jan 2014, 08:01 AM
Hi Farjana,

I guess you want to access the columns of RadGrid in the ItemDataBound event. You can access them using its HeaderText or UniqueName property as shown below:

C#:
protected void RadGrid1_ItemDataBound(object sender, GridItemEventArgs e)
{
  if (e.Item is GridDataItem)
  {
     foreach (GridColumn col in RadGrid1.MasterTableView.Columns)
     {
       string columnuniquename = col.UniqueName;// Get Column Name using UniqueName
       string columnheadertext = col.HeaderText;// Get Column Name using HeaderText
     }
  }
}

Thanks,
Princy
0
Farjana
Top achievements
Rank 1
answered on 07 Jan 2014, 08:09 AM
Hi Princy,

Thanks for the suggestion. I have tried out that way already.
Actually, I am accessing the table cells in databound event like this:

protected void RadGrid1_ItemDataBound(object sender, GridItemEventArgs e)
{
  if (e.Item is GridDataItem)
  {     GridDataItem item = (GridDataItem)e.Item;
foreach (TableCell cell in item.Cells)
{
         // I need to identify the unique column name with either the cell or dataitem
}
  }
}
0
Princy
Top achievements
Rank 1
answered on 08 Jan 2014, 03:29 AM
Hi Farjana,

Please try the following code snippet if you want to access using TableCell:

C#:
protected void RadGrid1_ItemDataBound(object sender, GridItemEventArgs e)
{
    if (e.Item is GridDataItem)
    {
        GridDataItem item = (GridDataItem)e.Item;
        foreach (GridColumn col in RadGrid1.MasterTableView.Columns)
        {
            TableCell cell = item[col.UniqueName];
            string value = cell.Text;// get the values of the columns
        }
    }
}

Thanks,
Princy
0
Farjana
Top achievements
Rank 1
answered on 08 Jan 2014, 06:41 AM
Hi Princy,

Thanks for the previous soln.

A clarification regarding previous port Radgrid filters:

I have 10 columns in a grid. I would like to give different filter menu options for the columns.
I have tried the following code:
function filterMenushowing(sender, eventArgs) {
         if (eventArgs.get_column().get_uniqueName() == "Exp_DlvryDate") {
             var menu = eventArgs.get_menu();
             var items = menu._itemData;

             var i = 0;
             while (i < items.length) {
                 if (items[i].value != "Contains" && items[i].value != "EqualTo" && items[i].value != "GreaterThan") {
                     var item = menu._findItemByValue(items[i].value);
                     if (item != null)
                         item._element.style.display = "none";
                 }
                 i++;
             }
         }
         else {
             var menu1 = eventArgs.get_menu();
             var items1 = menu1._itemData;

             var j = 0;
             while (j < items1.length) {
                 if (items1[j].value != "Contains" && items1[j].value != "EqualTo") {
                     var item1 = menu1._findItemByValue(items1[j].value);
                     if (item1 != null)
                         item1._element.style.display = "none";
                 }
                 j++;
             }
         }
     }

If i click the column with unique name "Exp_DlvryDate", I am able to see three options, "Contains,EqualTo,GreaterThan".
when i click some other column filter, I am able to see three options, "Contains,EqualTo".


But when i come back to "Exp_DlvryDate" column and clicks on filter only two options are displayed (Contains,EqualTo)

I guess the filter menu is commonly getting modified. Can you pls tell me where exactly it is going wrong.


Thanks,
Farjana
0
Accepted
Princy
Top achievements
Rank 1
answered on 09 Jan 2014, 05:44 AM
Hi Farjana,

Please try the sample code snippet that i tried which works fine at my end:

ASPX:
<telerik:RadGrid ID="RadGrid1" runat="server" AutoGenerateColumns="false" OnNeedDataSource="RadGrid1_NeedDataSource"
    AllowFilteringByColumn="true" EnableLinqExpressions="false">
    <MasterTableView DataKeyNames="ID">
        <Columns>
            <telerik:GridBoundColumn UniqueName="ID" DataField="ID" HeaderText="ID">
            </telerik:GridBoundColumn>
            <telerik:GridBoundColumn DataField="Name" HeaderText="Name" UniqueName="Name">
            </telerik:GridBoundColumn>
            <telerik:GridBoundColumn DataField="Number" HeaderText="Number" UniqueName="Number"
                DataType="System.Int16">
            </telerik:GridBoundColumn>
        </Columns>
    </MasterTableView>
    <ClientSettings>
        <Scrolling AllowScroll="false" />
        <ClientEvents OnFilterMenuShowing="filterMenuShowing" />
    </ClientSettings>
    <FilterMenu OnClientShown="MenuShowing" />
</telerik:RadGrid>

C#:
protected void RadGrid1_NeedDataSource(object sender, GridNeedDataSourceEventArgs e)
{
    dynamic data = new[] {
        new { ID = 1, Name = "Name1", Number=123},
        new { ID = 2, Name = "Name2", Number=456},
        new { ID = 3, Name = "Name3", Number=789},
        new { ID = 4, Name = "Name4", Number=123},
        new { ID = 5, Name = "Name5", Number=258}
    };
    RadGrid1.DataSource = data;
}

JS:
<script type="text/javascript">
    var column = null;
    var columnName = null;
    function MenuShowing(sender, args) {
        if (column == null) return;
        if (columnName == null) return;
        var menu = sender; var items = menu.get_items();
        if (columnName == "Name") {
            var i = 0;
            while (i < items.get_count()) {
                if (!(items.getItem(i).get_value() in { 'StartsWith': '', 'Contains': '' })) {
                    var item = items.getItem(i);
                    if (item != null)
                        item.set_visible(false);
                }
                else {
                    var item = items.getItem(i);
                    if (item != null)
                        item.set_visible(true);
                } i++;
            }
        }
        else {
            if (columnName == "Number") {
                var j = 0;
                while (j < items.get_count()) {

                    if (!(items.getItem(j).get_value() in { 'EqualTo': '', 'NotEqualTo': '' })) {
                        var item = items.getItem(j);
                        if (item != null)
                            item.set_visible(false);
                    }
                    else {
                        var item = items.getItem(j);
                        if (item != null)
                            item.set_visible(true);
                    } j++;
                }
            }
        }
        column = null;
        columnName = null;
    }

    function filterMenuShowing(sender, eventArgs) {
        column = eventArgs.get_column();
        columnName = eventArgs.get_column().get_uniqueName();
    }
</script>

Thanks,
Princy
0
Farjana
Top achievements
Rank 1
answered on 16 Jan 2014, 07:13 AM
Hi Princy,

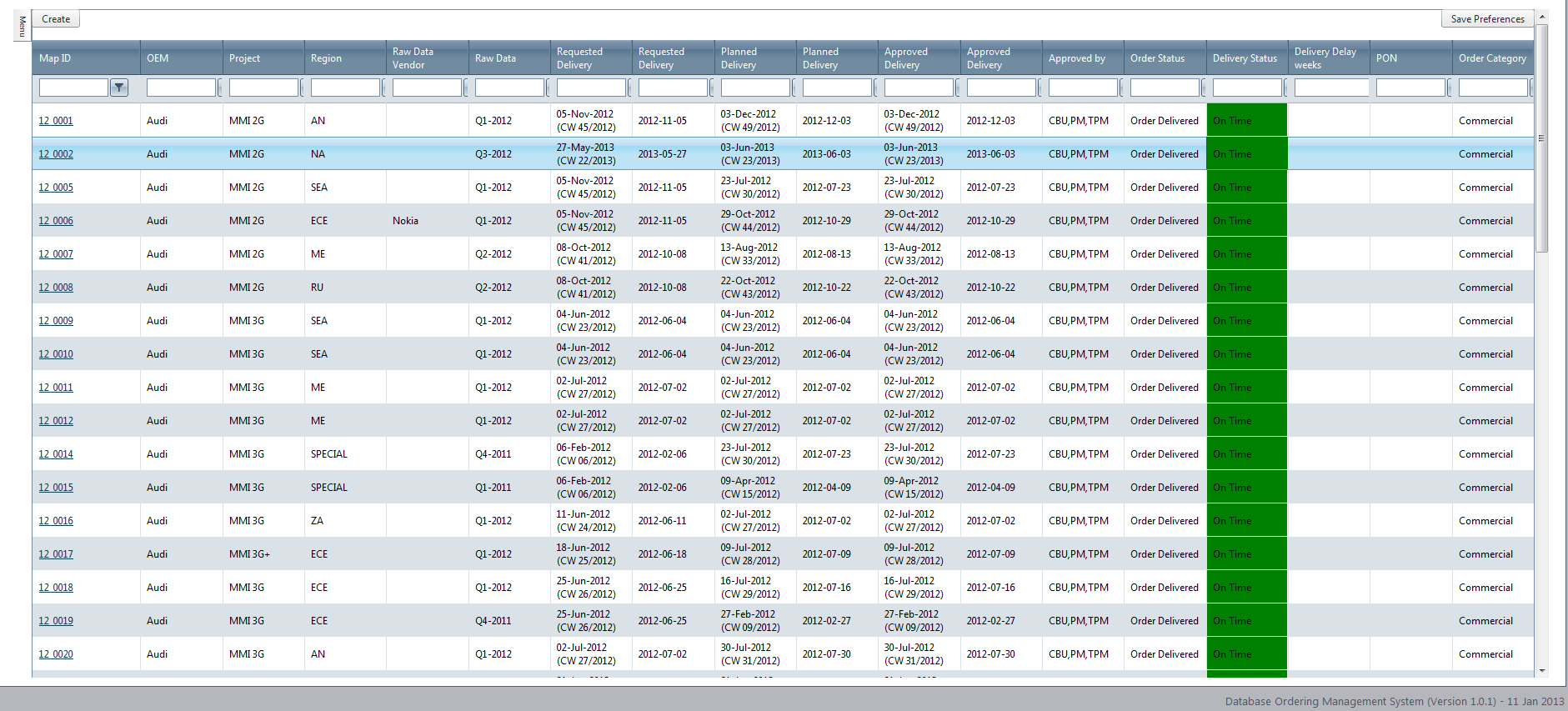

When i introduce filters in the radgrid, the width of the column is inconsistent. See the attached screenshot. the filter menu icons are hidden and every time i need to adjust width manually. Can you pls tell me how to handle it.
0
Princy
Top achievements
Rank 1
answered on 17 Jan 2014, 09:19 AM
Hi Farjana,

Can you try setting the following CSS to your RadGrid.

CSS:
<style type="text/css">
  div.RadGrid .rgFilterRow td
   {
    padding-right: 30px;
   }
</style>

Thanks,
Princy
0
Farjana
Top achievements
Rank 1
answered on 29 Jan 2014, 06:30 AM
Hi Princy,

For the radgrid in my page, i have an option to save the column preferences(using GridSettingsPersister class). So, I am not able to set  static width for the filter icon, since the settings saved by user(using GridSettingsPersister class) is overwritten when i assign a static width.
Please suggest a solution.
0
Venelin
Telerik team
answered on 31 Jan 2014, 09:24 AM
Hello Farjana,

I am not sure what exactly you issue is. Could you please try to set the FilterStyle.Width property for the corresponding columns instead of the provided CSS. Take this demo for instance, what should be changed in order to replicate the problem in it?

Regards,
Venelin
Telerik
If you want to get updates on new releases, tips and tricks and sneak peeks at our product labs directly from the developers working on the UI for ASP.NET AJAX, subscribe to the blog feed now.
0
Mayur
Top achievements
Rank 1
answered on 11 Apr 2014, 05:24 AM
Dear Princy,
                      I am working on RadGrid with Filter options. I am stucked in filtering provision in which I need your help. This is my scenario.

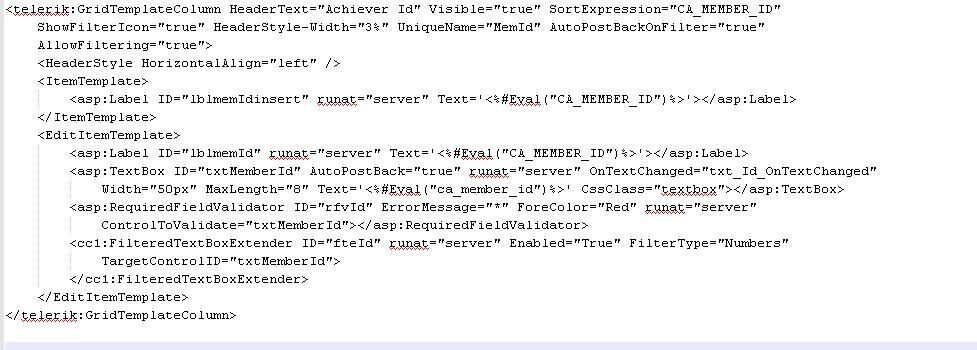

As you can see in the attached code file, I am using Templated grid with ShowFilterIcon = "True" AutoPostBackOnFilter="true"
AllowFiltering="true" attributes.

But Still filtering is not working. Here grid is rebinding but displaying the same result.
So do i have to write any additional code over there or do you have some other trick to apply. Please send me sample code



0
Princy
Top achievements
Rank 1
answered on 11 Apr 2014, 06:27 AM
Hi Mayur,

Please set the DataField property of the GridTemplateColumn for filtering the column.

ASPX:
<telerik:GridTemplateColumn DataField="CA_MEMBER_ID" AllowFiltering="true". . >

Thanks,
Princy
0
Asutosh
Top achievements
Rank 1
answered on 25 Jul 2014, 11:37 AM
hi princy
i am using radgrid in my page and i used onneeddatasource to bind it
i have open filter functionality for that
but  it take too much time for filtering and also in pagging change it take too much time
0
Princy
Top achievements
Rank 1
answered on 29 Jul 2014, 03:53 AM
Hi Asutosh,

You can take a look at the following article and the documentations coming under the Performance session to know how to increase the performance of your Grid.
Client/server grid performance optimizations

Thanks,
Princy
