RadGrid pagination

[Farjana]

Hi,

I have a radGrid with 50 items per page(total 200 rows) splitted into four pages. when i filter a column with some value, i am getting the results properly for the current page. But when i move to another page(prev or forward), the grid is not retaining the filter value, and grid is bound with complete 200 items. Can you please help me with this issue?

Thanks,
Farjana

[Princy]

Hi Farjana,

Please make sure that you are binding the RadGrid using Advanced Data-binding (using NeedDataSource event). Below is a sample code snippet That i tried which works fine. Please try and provide your full code snippet if this doesn't help.

ASPX:

<telerik:RadGrid ID="RadGrid1" runat="server" AutoGenerateColumns="false" AllowPaging="true"

    OnNeedDataSource="RadGrid1_NeedDataSource" AllowFilteringByColumn="true">

    <MasterTableView DataKeyNames="OrderID">

        <Columns>

            <telerik:GridBoundColumn UniqueName="OrderID" DataField="OrderID" HeaderText="OrderID"/>


            <telerik:GridBoundColumn DataField="ShipCity" HeaderText="ShipCity" UniqueName="ShipCity" />

        </Columns>

    </MasterTableView>

</telerik:RadGrid>

C#:

protected void RadGrid1_NeedDataSource(object sender, GridNeedDataSourceEventArgs e)
  {
    RadGrid1.DataSource = GetDataTable("SELECT OrderID,ShipCity FROM Orders");
  }

public DataTable GetDataTable(string query)
  {
    String ConnString = ConfigurationManager.ConnectionStrings["Northwind_newConnectionString3"].ConnectionString;
    SqlConnection conn = new SqlConnection(ConnString);
    SqlDataAdapter adapter = new SqlDataAdapter();
    adapter.SelectCommand = new SqlCommand(query, conn);

    DataTable myDataTable = new DataTable();

    conn.Open();
    try
    {
        adapter.Fill(myDataTable);
    }
    finally
    {
        conn.Close();
    }

    return myDataTable;
  }

Thanks,
Princy

[Farjana]

Hi Princy,

Thanks. I am binding datasource for the grid in Need DataSource event only. But still i have problem with pagination while filtering or sorting. I am using custom pagination options as given below. Are there any possibility that filters or sorting not working because of this?
protected void Managegridview_ItemCreated(object sender, GridItemEventArgs e)
        {
            if (e.Item is GridPagerItem)
            {
                var dropDown = (RadComboBox)e.Item.FindControl("PageSizeComboBox");
                var totalCount = ((GridPagerItem)e.Item).Paging.DataSourceCount;
                var sizes = new Dictionary<string, string>()
                {
            {"10", "10"},
            {"20", "20"},
            {"50", "50"}
                };

                if (totalCount > 100)
                {
                    sizes.Add("100", "100");
                }
                if (totalCount > 200)
                {
                    sizes.Add("200", "200");
                }
                sizes.Add("All", totalCount.ToString());

                dropDown.Items.Clear();
                if (sizes.Where(x => x.Key == e.Item.OwnerTableView.PageSize.ToString()).FirstOrDefault().Value == null)
                {
                    sizes.Add(e.Item.OwnerTableView.PageSize.ToString(), e.Item.OwnerTableView.PageSize.ToString());
                }
                foreach (var size in sizes)
                {
                    var cboItem = new RadComboBoxItem() { Text = size.Key, Value = size.Value };
                    cboItem.Attributes.Add("ownerTableViewId", e.Item.OwnerTableView.ClientID);
                    dropDown.Items.Add(cboItem);
                }
                dropDown.FindItemByValue(e.Item.OwnerTableView.PageSize.ToString()).Selected = true;
            }
        }

Thanks,
Farjana

[Princy]

Hi Farjana,

I'm not able to replicate the issue. Filtering functionality is not affected by paging when using NeedDataSource event. Can you check to see if the correct datasource is passed in each case. This behavior might happen if you are filtering one source of data but paging on another. Can you provide your complete code snippet.

ASPX:

<telerik:RadGrid ID="RadGrid1" runat="server" AutoGenerateColumns="false" AllowPaging="true"
    PageSize="50" OnNeedDataSource="RadGrid1_NeedDataSource" AllowFilteringByColumn="true"
    OnItemCreated="RadGrid1_ItemCreated">
    <MasterTableView DataKeyNames="OrderID">
        <PagerStyle AlwaysVisible="true" />
        <Columns>
            <telerik:GridBoundColumn UniqueName="OrderID" DataField="OrderID" HeaderText="OrderID" />
            <telerik:GridBoundColumn DataField="ShipCity" HeaderText="ShipCity" UniqueName="ShipCity" />
        </Columns>
    </MasterTableView>
</telerik:RadGrid>

C#:

protected void RadGrid1_ItemCreated(object sender, GridItemEventArgs e)
{
    if (e.Item is GridPagerItem)
    {
        var dropDown = (RadComboBox)e.Item.FindControl("PageSizeComboBox");
        var totalCount = ((GridPagerItem)e.Item).Paging.DataSourceCount;
        var sizes = new Dictionary<string, string>()
            {
        {"10", "10"},
        {"20", "20"},
        {"50", "50"}
            };

        if (totalCount > 100)
        {
            sizes.Add("100", "100");
        }
        if (totalCount > 200)
        {
            sizes.Add("200", "200");
        }
        sizes.Add("All", totalCount.ToString());
        dropDown.Items.Clear();
        foreach (var size in sizes)
        {
            var cboItem = new RadComboBoxItem() { Text = size.Key, Value = size.Value };
            cboItem.Attributes.Add("ownerTableViewId", e.Item.OwnerTableView.ClientID);
            dropDown.Items.Add(cboItem);
        }
        dropDown.FindItemByValue(e.Item.OwnerTableView.PageSize.ToString()).Selected = true;
    }
}

Thanks,
Princy

[Farjana]

Hi,

Please find the need data source event and grid in aspx. I hope i am binding the same datasource for filters as well as paging. I guess while paging it load the entire result set without considering filters.

protected void Managegridview_NeedDataSource(object sender, GridNeedDataSourceEventArgs e)

        {



            switch (id)

            {

                //Order Details

                case PENDING_SLOT_PLANNING:

                    {

                        // CR: Can we take it from userDetail object.Otherwise check for null.

                        // Avoid Convert.ToString.

                        userRoles = userDetails.UserRoles;

                        if (userRoles.Any(r => r.Equals(UserRoles.PM)))

                        {

                            Response.Redirect(url);

                        }

                        else

                        {

                            status = ORDR_CRTD;

                            Managegridview.DataSource = objManageViews.GetOrdersList(viewId, userId, status);

                        }

                        break;

                    }

                case PENDING_APPROVAL:

                    {

                        status = ORDR_PLND;

                        Managegridview.DataSource = objManageViews.GetOrdersList(viewId, userId, status);

                        break;

                    }

                case AWAITING_ENHANCEMENT:

                    {

                        status = ORDR_APRV;

                        Managegridview.DataSource = objManageViews.GetOrdersList(viewId, userId, status);

                        break;

                    }

                case PENDING_MILESTONE_DET:

                    {

                        phasesViewId = PM_VIEW_ID;

                        List<int> statusList = new List<int>();

                        statusList.Add(TECH_DTLS);

                        statusList.Add(COMP_START);

                        statusList.Add(COMP_CMPL);

                        statusList.Add(QUAL_STRT);

                        statusList.Add(QUAL_CMPL);

                        statusList.Add(STST_STRT);

                        statusList.Add(STST_CMPL);

                        statusList.Add(ATST_STRT);

                        statusList.Add(ATST_CMPL);

                        statusList.Add(PHSE_MILE_CMPL);

                        Managegridview.DataSource = objManageViews.GetOrdersListMilestoneDetails(phasesViewId, userId, statusList);

                        //status = TECH_DTLS;

                        //Managegridview.DataSource = objManageViews.GetOrdersList(viewId, userId, status);

                        break;

                    }

                case AWAITING_DELIVERY_CONFIRMATION:

                    {

                        status = PHSE_MILE_CMPL;

                        delId = DEL_CONFIRMATION;

                        Managegridview.DataSource = objManageViews.GetOrdersList(delId, userId, status);

                        break;

                    }

                case PENDING_CANCEL_APPROVAL:

                    {

                        status = REQU_CNCL;

                        Managegridview.DataSource = objManageViews.GetOrdersList(viewId, userId, status);

                        break;

                    }

                //Administration Details

                case VENDOR_PRODUCT_SCHEDULE:

                    {

                        Radbtnadd.Visible = false;

                        Managegridview.DataSource = objManageViews.GetManageData(id, userId);

                        break;

                    }

                case MANAGE_ORDERS:

                    {

                        for (int count = 0; count < businessFunctions.Count; count++)

                        {

                            if (businessFunctions[count].BusinessFunctionName.Equals(BusinessFunctionNames.InitialOrder) && businessFunctions[count].AuthorizationType.ToString().Equals(EDIT))

                            {

                                Radbtnadd.Visible = true;

                            }

                            else

                            {

                                //do nothing

                            }

                        }

                        Managegridview.DataSource = objManageViews.GetOrdersList(id, userId, status);

                        break;

                    }

                case MANAGE_PRODUCT_PROJECT_MAP:

                    {



                        Radbtnadd.Visible = (vpId != "") ? false : true;

                        Managegridview.DataSource = objManageViews.GetManageData(id, userId);

                        break;

                    }

                //Administration Details

                default:

                    {

                        if (userDetails.ClassicAdmin || userDetails.NDSAdmin || vmFlag)

                        {

                            Radbtnadd.Visible = true;

                        }



                        Managegridview.DataSource = objManageViews.GetManageData(id, userId);

                        break;

                    }

            }

        }

<telerik:RadGrid ID="Managegridview" runat="server" AllowPaging="true" AllowSorting="true"
        GridLines="None" OnNeedDataSource="Managegridview_NeedDataSource" OnItemDataBound="Managegridview_ItemDataBound"
        AllowFilteringByColumn="true" CellSpacing="0" Skin="WebBlue"  OnPreRender="Managegridview_PreRender"
        OnItemCreated="Managegridview_ItemCreated" PageSize="50"  AutoSetColumnWidth="false">
        <GroupingSettings CaseSensitive="false"/>
        <ClientSettings EnableRowHoverStyle="true" AllowColumnsReorder="true" ReorderColumnsOnClient="true" AllowColumnHide="true" ColumnsReorderMethod="Reorder" >
            <Resizing AllowColumnResize="true" AllowResizeToFit="true" ResizeGridOnColumnResize="false" />
            <Selecting AllowRowSelect="true" />
            <ClientEvents OnFilterMenuShowing="filterMenushowing" />
        </ClientSettings>
         <HeaderStyle Width="100px" />
        <MasterTableView GridLines="None" Width="100%" AllowMultiColumnSorting="true">


<Columns>
                                <telerik:GridTemplateColumn AllowFiltering="false" Visible="false" UniqueName="GridCheckBoxColumn" HeaderText="Select" HeaderStyle-Width="80px" >
                                 <HeaderTemplate>
                                <asp:CheckBox id="chkHeader" runat="server" onclick="javascript:HeaderClickAboveGrid(this);" Text="Select"/>

                                </HeaderTemplate>
                                    <ItemTemplate>
                                        <asp:CheckBox ID="chkTest" runat="server" />
                                    </ItemTemplate>
                                </telerik:GridTemplateColumn>
 </Columns>
            <CommandItemSettings ExportToPdfText="Export to PDF"></CommandItemSettings>
            <RowIndicatorColumn FilterControlAltText="Filter RowIndicator column">
            </RowIndicatorColumn>
            <ExpandCollapseColumn Visible="True" FilterControlAltText="Filter ExpandColumn column"
                Created="True">
            </ExpandCollapseColumn>
            <EditFormSettings>
                <EditColumn FilterControlAltText="Filter EditCommandColumn column">
                </EditColumn>
            </EditFormSettings>

            <PagerStyle PageSizeControlType="RadComboBox" Mode="NextPrevAndNumeric" EnableSEOPaging="True"
                AlwaysVisible="true"></PagerStyle>
        </MasterTableView>


<PagerStyle PageSizeControlType="RadComboBox"></PagerStyle>
<FilterMenu OnClientShown="MenuShowing"/>
        <%--<FilterMenu EnableImageSprites="False">
        </FilterMenu>--%>
    </telerik:RadGrid>

[Shinu]

.

[Princy]

Hi Farjana,

As far as i know, it is a limitation of the RadGrid control that it does not support filtering and sorting with SEOPaging. Can you please set EnableSEOPaging="false" and check if the code works fine.

Thanks,
Princy

[Farjana]

Thanks Princy, It works  fine.
I would like to know disabling that "EnableSOEPaging" in pager style will affect any other functionality of grid.?


Thanks,
Farjana

[Princy]

Hi Farjana,

 When you set EnableSEOPaging to True, the grid always handles paging using query strings. When it is False, the grid does not use SEO paging unless it detects a crawler. Setting it doesn't affect any other grid functionality. To know more on this topic got through this documentation on SEO Paging.

Thanks,
Princy

[Farjana]

Hi Princy,

Thanks. The content of the radgrid id getting right aligned. Even i dont have any css class. I have tried some options like following:
<telerik:RadGrid ID="SPCalculatedValues" runat="server" AutoGenerateColumns="true"
                        OnColumnCreated="SPCalculatedValues_ColumnCreated" Skin="Office2007"
                        Width="100%" OnItemDataBound="SPCalculatedValues_ItemDataBound" HeaderStyle-HorizontalAlign="center"  ItemStyle-HorizontalAlign="center">
                        <ClientSettings EnableAlternatingItems="false">
                        </ClientSettings>
                        <MasterTableView TableLayout="Fixed">
                        </MasterTableView>
                    </telerik:RadGrid>

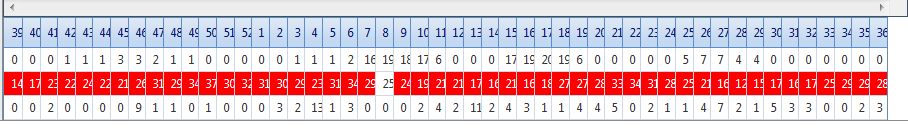

I have attached the screenshot.Please tell me how to make it center aligned

[Princy]

Hi Farjana,

The code looks fine, can you make sure you have not set any ItemStyle-Width somewhere in your code. It is not recommended to use ItemStyle-Width for setting column widths. Only HeaderStyle-Width should be used.

ASPX:

<telerik:GridBoundColumn . . >
 <HeaderStyle Width="100px"/>
</telerik:GridBoundColumn>

Thanks,
Princy

[Farjana]

Hi Princy,

I tried the previous answer, but still problem persists. Actually, my grid is having dynamic binding of columns.
Ex. Initially if number of columns is 20, I can change it to 30,40 or 60....When i change the number of columns to be displayed as 50 or 60, the problem of alignment happens

[Princy]

Hi Farjana,

 Unfortunately  I'm not able to replicate the issue at my side.

Thanks,
Princy
