Hi Telerik
I have till now done 3 bar charts using your new HTML5 charts. All is going well and i have been following your examples which have helped me lots. Though i am currently at a dead stop.
Till now, the bar charts always had a series databound item (coming from a stored procedure) and also the x-axis. They both have a column from the table that the SP is calling and it simply picks up the data and plots.
Now, i am trying to do a pie chart and it only asks for the y (one column). And i cant understand or find an example whereby i need 2 columns in this chart (sort of like x/y axis). Right now, it binds and it fills the pie chart but with just one column. I need to put another value in that same chart (from another column coming from a Stored procedure) that will also render both values on the same chart.
Thanks.
Kyle
Update.
I have eliminated the use of Stored Procedure and DataSourceID in the chart. Im now loading the data manually from the behind and created the object. In the DataFieldY, i placed the property. So i basically have something like this:

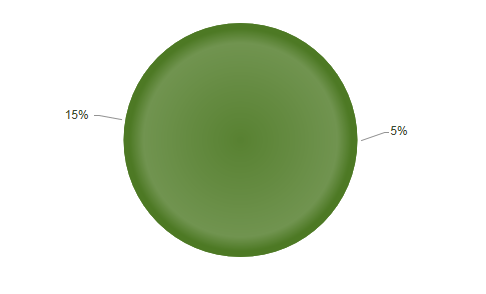

Now the data is being loaded as is in the database. Though the problem is that it is showing one color. And its not even taking the first color, its just always staying Olive. (Please see attached). Now, if i hard code values and change the color, all works. Its only on dynamic values.
Can someone please explain to me how this works? I have thought myself and managed to work with bar charts and line charts. Managed from that point of view. Though for a simple pie chart, i cant understand what i am doing wrong.
thanks.
Kyle
I have till now done 3 bar charts using your new HTML5 charts. All is going well and i have been following your examples which have helped me lots. Though i am currently at a dead stop.
Till now, the bar charts always had a series databound item (coming from a stored procedure) and also the x-axis. They both have a column from the table that the SP is calling and it simply picks up the data and plots.
Now, i am trying to do a pie chart and it only asks for the y (one column). And i cant understand or find an example whereby i need 2 columns in this chart (sort of like x/y axis). Right now, it binds and it fills the pie chart but with just one column. I need to put another value in that same chart (from another column coming from a Stored procedure) that will also render both values on the same chart.
Thanks.
Kyle
Update.
I have eliminated the use of Stored Procedure and DataSourceID in the chart. Im now loading the data manually from the behind and created the object. In the DataFieldY, i placed the property. So i basically have something like this:
<Series> <telerik:PieSeries StartAngle="0" DataFieldY="NotPA"> <LabelsAppearance DataFormatString="no tPA {0}%" Position="Circle" /> <TooltipsAppearance BackgroundColor="Red" DataFormatString="no tPA {0}%"/> <Appearance FillStyle-BackgroundColor="Red" /> </telerik:PieSeries> <telerik:PieSeries StartAngle="190" DataFieldY="TPA"> <LabelsAppearance DataFormatString="tPA {0}%" Position="Circle" /> <TooltipsAppearance BackgroundColor="Yellow" DataFormatString="tPA {0}%"/> <Appearance FillStyle-BackgroundColor="Yellow" /> </telerik:PieSeries></Series>Now the data is being loaded as is in the database. Though the problem is that it is showing one color. And its not even taking the first color, its just always staying Olive. (Please see attached). Now, if i hard code values and change the color, all works. Its only on dynamic values.
Can someone please explain to me how this works? I have thought myself and managed to work with bar charts and line charts. Managed from that point of view. Though for a simple pie chart, i cant understand what i am doing wrong.
thanks.
Kyle
5 Answers, 1 is accepted
0
Hi Kyle,
If you want to display data in a Line or Bar chart, it seems reasonable to have more than one series (even mix between them). However, the proper way to use a Pie chart is to create only one PieSeries and populate it with the necessary data items. This usage is demonstrated in both our Pie chart demo and our help article. Could you modify your example so that it uses one PieSeries and inform me if you need any further assistance on the case?
Regards,
Stamo Gochev
Telerik
If you want to display data in a Line or Bar chart, it seems reasonable to have more than one series (even mix between them). However, the proper way to use a Pie chart is to create only one PieSeries and populate it with the necessary data items. This usage is demonstrated in both our Pie chart demo and our help article. Could you modify your example so that it uses one PieSeries and inform me if you need any further assistance on the case?
Regards,
Stamo Gochev
Telerik
If you want to get updates on new releases, tips and tricks and sneak peeks at our product labs directly from the developers working on the RadControls for ASP.NET AJAX, subscribe to the blog feed now.
0
Kyle
Top achievements
Rank 2
Rank 2
answered on 14 Aug 2013, 10:30 AM
Hi.
Thanks for your reply I honestly concluded that i may be structuring the data wrongly. I never created pie charts so i assumed that it would be the same way as the other charts.
Though thanks for the link i will also look into it.
regards,
Kyle
Thanks for your reply I honestly concluded that i may be structuring the data wrongly. I never created pie charts so i assumed that it would be the same way as the other charts.
Though thanks for the link i will also look into it.
regards,
Kyle
0
Kyle
Top achievements
Rank 2
Rank 2
answered on 16 Aug 2013, 10:49 AM
Hi. I have amended the data. I am now loading the chart. I just have 2 more queries. 1 of them is more of an issue. The other would be a nice to have.
1. Currently, I am loading 9 different values in the Pie Chart. The control is specifying what colors to give it itself. Is there an even or a way to override the default colors and define a set of colors to my 9 different values myself?
2. (The nice to have). I am picking up percentages right from a table. I tried creating a property to return a string and the value and i gave the pie chart this string property though didnt work what so ever. It just displayed funny cause of some null value it was getting. Once i then gave it a property that only loads integers, it was fine.
Thus, is there a way to also display strings (like in your hard coded example - I basically need something like this, though pickin up data dynamically from a stored procedure or from the code behind).
thanks.
Kyle
1. Currently, I am loading 9 different values in the Pie Chart. The control is specifying what colors to give it itself. Is there an even or a way to override the default colors and define a set of colors to my 9 different values myself?
2. (The nice to have). I am picking up percentages right from a table. I tried creating a property to return a string and the value and i gave the pie chart this string property though didnt work what so ever. It just displayed funny cause of some null value it was getting. Once i then gave it a property that only loads integers, it was fine.
Thus, is there a way to also display strings (like in your hard coded example - I basically need something like this, though pickin up data dynamically from a stored procedure or from the code behind).
thanks.
Kyle
0
Accepted
Hello Kyle,
If you want to set the color of an individual item created programmatically (in the code-behind), you can use the BackgroundColor property like this:
You can also use the Add method of the SeriesItems collection:
If your chart is data bound, you can take advantage of the ColorField property
You can find more information about colors in our Custom Item Colorization article.
Regarding your second question - the idea of the RadHtmlChart is to display numeric data, so a good place to display strings is in the PieSeries' labels or tooltips. This means that you could use the DataField property of the LabelsAppearance like this:
I also attach a sample page where I demonstrate the above suggestions. Could you have a look at it and inform me if you could apply them in your case?
Regards,
Stamo Gochev
Telerik
If you want to set the color of an individual item created programmatically (in the code-behind), you can use the BackgroundColor property like this:
PieSeriesItem pieItem = new PieSeriesItem();pieItem.Y = 10;pieItem.BackgroundColor = Color.Yellow;PieSeries pie = new PieSeries();pie.SeriesItems.Add(10, Color.Blue);<telerik:PieSeries DataFieldY="yValue" ColorField="colorValue"></telerik:PieSeries>Regarding your second question - the idea of the RadHtmlChart is to display numeric data, so a good place to display strings is in the PieSeries' labels or tooltips. This means that you could use the DataField property of the LabelsAppearance like this:
<telerik:PieSeries DataFieldY="yValue" ColorField="colorValue"> <LabelsAppearance DataField="colorValue"></LabelsAppearance></telerik:PieSeries>Regards,
Stamo Gochev
Telerik
If you want to get updates on new releases, tips and tricks and sneak peeks at our product labs directly from the developers working on the RadControls for ASP.NET AJAX, subscribe to the blog feed now.
0
Kyle
Top achievements
Rank 2
Rank 2
answered on 20 Aug 2013, 01:19 PM
Thank you so much. I have achieved everything that i wanted :) :)
