Hi,
When i'm trying to resize any column in my radgrid my pager control is not displayed because the grid height is increased while resizing a column. i have checked below link with options 1. allow column resize and 2. No wrap for cell content.
http://demos.telerik.com/aspnet-ajax/grid/examples/client/resizing/defaultcs.aspx
when i'm resizing a column my filter row hieght also get increased and due to that pager control is not displayed.
i tried to give fixed height to filter row but it is not working out.
Please suggest some solution so that when i rezise any column in my grid it should not affect the size of the grid.
and my pagercontrol should display properly
thanks
sweta
6 Answers, 1 is accepted
Here is a simple demo, which shows how to achieve the desired behavior. Due to limitations in the text wrapping support in IE7, some runtime customizations are required (wrapping the cell content in <NOBR> tags).
<%@ Page Language="C#" %>
<%@ Import Namespace="System.Data" %>
<%@ Register Assembly="Telerik.Web.UI" Namespace="Telerik.Web.UI" TagPrefix="telerik" %>
<
script
runat
=
"server"
>
protected void RadGrid_NeedDataSource(object sender, GridNeedDataSourceEventArgs e)
{
DataTable dt = new DataTable();
DataRow dr;
int colsNum = 4;
int rowsNum = 30;
string colName = "Column";
for (int j = 1; j <= colsNum; j++)
{
dt.Columns.Add(String.Format("{0}{1}", colName, j));
}
for (int i = 1; i <= rowsNum; i++)
{
dr = dt.NewRow();
for (int k = 1; k <= colsNum; k++)
{
dr[String.Format("{0}{1}", colName, k)] = String.Format("{0}{1} Row{2}", colName, k, i);
}
dt.Rows.Add(dr);
}
(sender as RadGrid).DataSource = dt;
}
protected void RadGrid1_ColumnCreated(object sender, GridColumnCreatedEventArgs e)
{
if (e.Column is GridBoundColumn)
{
(e.Column as GridBoundColumn).DataFormatString = "<
nobr
>{0}</
nobr
>";
}
}
protected void RadGrid1_ItemCreated(object sender, GridItemEventArgs e)
{
if (e.Item is GridFilteringItem)
{
GridFilteringItem item = e.Item as GridFilteringItem;
foreach (TableCell cell in item.Cells)
{
if (cell.Controls.Count > 0)
{
cell.Controls.AddAt(0, new LiteralControl("<
nobr
>"));
cell.Controls.Add(new LiteralControl("</
nobr
>"));
}
}
}
}
</
script
>
<!DOCTYPE html PUBLIC "-//W3C//DTD XHTML 1.0 Transitional//EN"
<
html
xmlns
=
"http://www.w3.org/1999/xhtml"
>
<
head
runat
=
"server"
>
<
meta
http-equiv
=
"content-type"
content
=
"text/html;charset=utf-8"
/>
<
title
>RadControls</
title
>
<
style
type
=
"text/css"
>
.rgFilterRow,
.rgFilterRow *
{
white-space:nowrap;
}
</
style
>
</
head
>
<
body
>
<
form
id
=
"form1"
runat
=
"server"
>
<
asp:ScriptManager
ID
=
"ScriptManager1"
runat
=
"server"
/>
<
telerik:RadGrid
ID
=
"RadGrid1"
runat
=
"server"
Width
=
"1000px"
Skin
=
"Office2007"
AllowFilteringByColumn
=
"true"
AllowPaging
=
"true"
OnNeedDataSource
=
"RadGrid_NeedDataSource"
OnColumnCreated
=
"RadGrid1_ColumnCreated"
OnItemCreated
=
"RadGrid1_ItemCreated"
>
<
ClientSettings
>
<
Resizing
AllowColumnResize
=
"true"
ClipCellContentOnResize
=
"true"
/>
</
ClientSettings
>
</
telerik:RadGrid
>
</
form
>
</
body
>
</
html
>
Kind regards,
Dimo
the Telerik team
Thanks Dimo
i have implemented the solution and my grid working fine.
thanks you once again...
Sweta
Hello Dimo,
Solution you have provided is not working properly with my Custom Filter column.
i have dropdown list as filter control in my custom filter column. when the page get loaded custom filter dropdown is not displayed. but if hover my mouse on filter row or header column then it is displayed.
i have changed a code little bit as below.
i have written condtion If c <> 3 Then
i have first column is checkbox and 2nd column is my custom filter column.
Protected Sub dglist_ItemCreated(ByVal sender As Object, ByVal e As Telerik.Web.UI.GridItemEventArgs) Handles dgInvoiceSelected.ItemCreated |
If e.Item.ItemType = GridItemType.FilteringItem Then |
Dim item As GridFilteringItem |
item = e.Item |
Dim c As Integer |
c = 0 |
For Each cell As TableCell In item.Cells |
If c <> 3 Then |
If cell.Controls.Count > 0 Then |
cell.Controls.AddAt(0, New LiteralControl("<nobr>")) |
cell.Controls.Add(New LiteralControl("</nobr>")) |
End If |
End If |
c = c + 1 |
Next |
End If |
If e.Item.ItemType = GridItemType.Header Then |
Dim item As GridHeaderItem |
item = e.Item |
For Each cell As TableCell In item.Cells |
If cell.Controls.Count > 0 Then |
cell.Controls.AddAt(0, New LiteralControl("<nobr>")) |
cell.Controls.Add(New LiteralControl("</nobr>")) |
End If |
Next |
End If |
End Sub |
Please suggest some solution for it.
thanks
sweta
This looks like a IE rendering problem caused by hasLayout:
http://www.satzansatz.de/cssd/onhavinglayout.html
Such issues occur randomly and depend on the page HTML and CSS code. The usual resolution is to apply a zoom:1 CSS style to a specific element(s) (e.g. some divs or tables wrapping the problematic region), so that hasLayout is triggered and the control rendering is proper.
Regards,
Dimo
the Telerik team
Hello Dimo,
i have solved custom Filter issue. there was problem with radpane width. i have set radpan width and it is working fine now.
as we have implemented the solution for column resizing provided by you some other issues are raised.
1. when we expand columns scrollbars(vertical and horizontal both) are displayed. we do not want display any scroll bar on our grid if we resize any column.

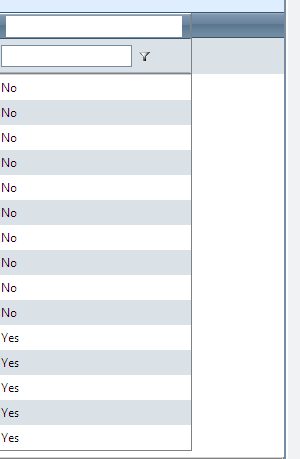

2. when we descrease the width of the column white space is displayed. Please check attached image.
Please suggest some solution.
Thanks
Sweta
When you use RadGrid with static headers and decrease the column widths so much that their sum is less than the RadGrid width, white space appears after the last column - this is expected. In addition, if you resize the columns, so that their cumulative width is larger than the RadGrid width, scrollbars appear.
If you think there is something else wrong, please send a runnable demo, so that we can inspect it locally.
Kind regards,
Dimo
the Telerik team
