Self Hierarchy Grid's Child Rows bounded twice Issue

11 Answers 236 Views

Grid

This is a migrated thread and some comments may be shown as answers.

11 Answers, 1 is accepted

answered on 18 Feb 2010, 06:47 AM


Hi i have the same problem as yours now.

My problem is
I use a self referencing grid. Im binding a List which has 2 objects. The 1st object has a property called ID set to 1 and ParentID set to 0. The second object has ParentID set to ID for FIrst Object(1). Now when i try to bind the list as datasource to the grid in Page Load,

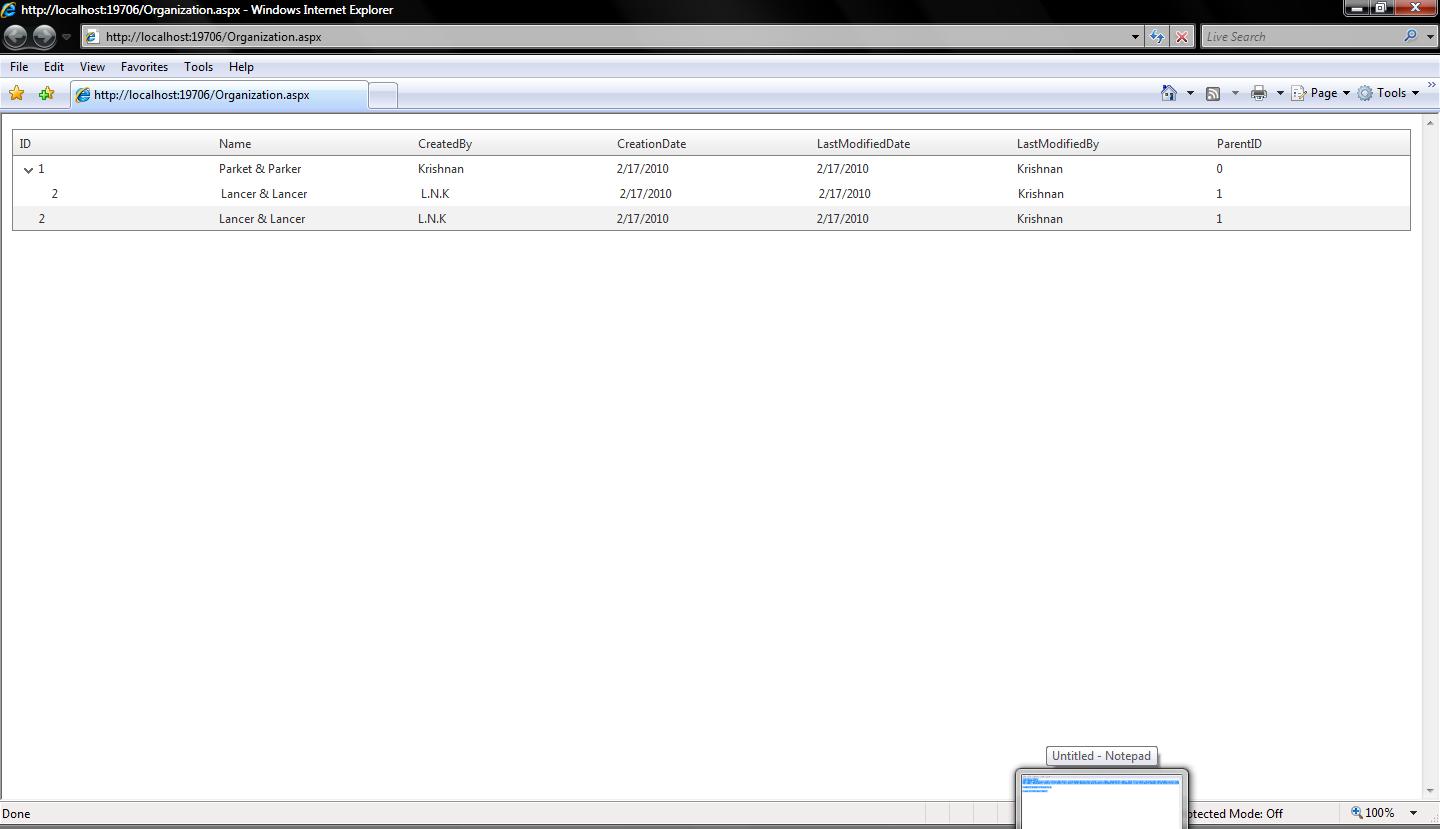

I get the 1st record displayed and 2nd record as child to first record. The problem is in addition to that, i recieve a duplicate second record in the same level as 1st record.

Any help is appreciated.

Can you let me know how did u solve the problem

answered on 18 Sep 2010, 10:00 PM

Hi,
I am facing same problem like Krishnan LN is facing. in my database i have self join case. Let us suppose there are two records in database like EmpId1 has parentId null and empID2 has parentID 1. so grid should show records like

EmpID1
EmpID2

but grid shows records like
EmpID1
EmpID2
EmpID2

so empID2 repeats twice. hope this example clears the question.
I have followed same example given in following link except i bind grid in code behind file.
http://demos.telerik.com/aspnet-ajax/grid/examples/hierarchy/selfreferencing/defaultcs.aspx

so how can i solve this issue.????????????

One more question that can i use paging in self hierarchical grid??????

Your quick response is highly appreciated. thanks.

answered on 10 Dec 2010, 06:40 AM

Hi,

I am facing the same problem. Has anyone got solution for this ?

ASPX

<telerik:RadTreeList runat="server" ID="RadTreeList3" DataKeyNames="ElementID" ParentDataKeyNames="ParentID"
                OnDataBound="RadTreeList3_DataBound" OnNeedDataSource="RadTreeList3_NeedDataSource"
                AllowRecursiveSelection="true" ClientSettings-ClientEvents-OnItemDblClick="RowDblClick"
                 AllowMultiItemSelection="false"   >
                <Columns>
                    <telerik:TreeListSelectColumn HeaderStyle-Width="60px">
                    </telerik:TreeListSelectColumn>
                    <telerik:TreeListTemplateColumn DataField="CompName" HeaderText="CompName">
                        <ItemTemplate>
                            <table>
                                <tr>
                                    <td align="left">
                                        <asp:LinkButton ID="lnkOpenContentFilePath" runat="server" Text='<%# Eval("CompName") %>' OnClick="lnkOpenContentFilePath_Click"></asp:LinkButton>
                                    </td>
                                </tr>
                            </table>
                        </ItemTemplate>
                    </telerik:TreeListTemplateColumn>
                </Columns>
            </telerik:RadTreeList>

ASPX.CS
===========

SqlConnection conn = null;

    DataSet ds = null;
    SqlDataAdapter da = null;
    private void BindGrid()
    {

        String ConnString = ConfigurationManager.ConnectionStrings["PSAConnectionString"].ConnectionString;
        conn = new SqlConnection(ConnString);

        SqlCommand cmd = new SqlCommand("SELECT [ElementID],[ParentID], [CompName], [Occurrences] FROM [StructureElements] WHERE ([StructureID] = 304)", conn);

        ds = new DataSet();
        da = new SqlDataAdapter(cmd);
        da.Fill(ds);
        RadGrid1.DataSource = ds;

    }
    protected void RadGrid1_NeedDataSource(object sender, Telerik.Web.UI.GridNeedDataSourceEventArgs e)
    {
        BindGrid();

    }

    protected void RadGrid1_ColumnCreated(object sender, GridColumnCreatedEventArgs e)
    {
        if (e.Column is GridExpandColumn)
        {
            e.Column.Visible = false;
        }
        else if (e.Column is GridBoundColumn)
        {
            e.Column.HeaderStyle.Width = Unit.Pixel(100);
        }

        if (e.Column.UniqueName == "ElementID" || e.Column.UniqueName == "ParentID")
            e.Column.Visible = false;

    }
    public void Page_PreRenderComplete(object sender, EventArgs e)
    {
        HideExpandColumnRecursive(RadGrid1.MasterTableView);
    }

    public void HideExpandColumnRecursive(GridTableView tableView)
    {
        GridItem[] nestedViewItems = tableView.GetItems(GridItemType.NestedView);
        foreach (GridNestedViewItem nestedViewItem in nestedViewItems)
        {
            foreach (GridTableView nestedView in nestedViewItem.NestedTableViews)
            {
                nestedView.Style["border"] = "0";

                Label MyExpandCollapseButton = (Label)nestedView.ParentItem.FindControl("MyExpandCollapseButton");
                if (nestedView.Items.Count == 0)
                {
                    if (MyExpandCollapseButton != null)
                    {
                        MyExpandCollapseButton.Style["visibility"] = "hidden";
                    }
                    nestedViewItem.Visible = false;
                }
                else
                {
                    if (MyExpandCollapseButton != null)
                    {
                        MyExpandCollapseButton.Style.Remove("visibility");
                    }
                }

                if (nestedView.HasDetailTables)
                {
                    HideExpandColumnRecursive(nestedView);
                }
            }
        }
    }

    protected void RadGrid1_ItemCreated(object sender, GridItemEventArgs e)
    {
        CreateExpandCollapseButton(e.Item, "CompName");

        if (e.Item is GridHeaderItem && e.Item.OwnerTableView != RadGrid1.MasterTableView)
        {
            e.Item.Style["display"] = "none";
        }

        if (e.Item is GridNestedViewItem)
        {
            e.Item.Cells[0].Visible = false;
        }
    }

    protected void RadGrid1_ItemDataBound(object sender, GridItemEventArgs e)
    {
        CreateExpandCollapseButton(e.Item, "CompName");
    }

    public void CreateExpandCollapseButton(GridItem item, string columnUniqueName)
    {
        if (item is GridDataItem)
        {
            if (item.FindControl("MyExpandCollapseButton") == null)
            {
                Label label = new Label();
                label.ID = "MyExpandCollapseButton";

                int level = item.ItemIndexHierarchical.Split(':').Length - 1;

                label.Style["margin-left"] = level * 15 + "px";

                TableCell cell = ((GridDataItem)item)[columnUniqueName];
                cell.Controls.Add(label);
                cell.Controls.Add(new LiteralControl(" "));
                CheckBox chk = new CheckBox();
                chk.Attributes.Add("onclick", "OnCheckBoxCheckChanged(this)");
                cell.Controls.Add(chk);
                cell.Controls.Add(new LiteralControl(((GridDataItem)item).GetDataKeyValue(columnUniqueName).ToString()));
            }
        }
    }

    protected void RadGrid1_PreRender(object sender, EventArgs e)
    {
        if (Assembly.GetAssembly(typeof(ScriptManager)).FullName.IndexOf("3.5") != -1 || Assembly.GetAssembly(typeof(ScriptManager)).FullName.IndexOf("4.0") != -1)
        {
            RadGrid1.MasterTableView.FilterExpression = @"it[""ParentID""] = Convert.DBNull";
        }
        else
        {
            RadGrid1.MasterTableView.FilterExpression = "ParentID IS NULL";
        }
    }

Please let me know.. where i am doing the mistake.

answered on 18 Jan 2011, 09:58 PM

I am also having this problem. Has no solution been posted yet?

here is my code

Front End:



<rad:RadGrid ID=

"rgFeedback" DataSourceID="sdsFeedback" AllowPaging="true" AllowSorting="true"

OnItemCommand="rgFeedback_ItemCommand" runat="server" ShowHeader="true" OnNeedDataSource="rgFeedback_NeedDataSource"

OnItemCreated="rgFeedback_ItemCreated" OnItemDataBound="rgFeedback_ItemDataBound" OnColumnCreated="rgFeedback_ColumnCreated">

<ExportSettings ExportOnlyData="true" FileName="Users" IgnorePaging="true" OpenInNewWindow="true">

<Excel FileExtension="xls" Format="Html" />

<Pdf Author='Me' Title="Search Discussions" />

</ExportSettings>

<PagerStyle AlwaysVisible="true" Mode="NextPrevNumericAndAdvanced" PageButtonCount="5"

ShowPagerText="true" Position="TopAndBottom" />

<MasterTableView HierarchyDefaultExpanded="true" HierarchyLoadMode="Client" AutoGenerateColumns="false" CommandItemDisplay="Top"

DataKeyNames="ParentFeedBackID, FeedBackID, Feedback">

<SelfHierarchySettings ParentKeyName="ParentFeedBackID" KeyName="FeedBackID" />

<Columns>

<rad:GridBoundColumn HeaderText="Comment" DataField="Feedback" SortExpression="Feedback"

EmptyDataText="--" UniqueName="Feedback" />

<rad:GridTemplateColumn HeaderText="Date" SortExpression="CreateDateTime" HeaderStyle-Wrap="false" ItemStyle-Wrap="false" ItemStyle-VerticalAlign="Top">

<ItemTemplate>

Date

</ItemTemplate>

</rad:GridTemplateColumn>

<rad:GridTemplateColumn HeaderText="Document ID" SortExpression="DocumentID" ItemStyle-Wrap="false"

ItemStyle-VerticalAlign="Top" HeaderStyle-Wrap="false">

<ItemTemplate>

<asp:HyperLink ID="hlDocumentID" runat="server" NavigateUrl=

'<%#
String.Format("Document.aspx?DocumentID={0}", ((String)
(Eval("DocumentID") == DBNull.Value ? "" :
Eval("DocumentID"))).Replace(":", Server.UrlEncode(":"))) %>'

Text='<%# GetDocumentID() %>' Enabled='<%# GetDocumentLinkEnabled() %>' />

</ItemTemplate>

</rad:GridTemplateColumn>

<rad:GridHyperLinkColumn HeaderText="Workflow" SortExpression="WorkflowName" DataNavigateUrlFields="SubjectedDocumentRevisionID, WorkflowID"

DataNavigateUrlFormatString="~/client/DocumentViewer.aspx?DocumentRevisionID={0}&tab=workflow&WorkflowID={1}"

DataTextField="WorkflowName" />

<rad:GridTemplateColumn HeaderText="User" SortExpression="UserID" ItemStyle-Wrap="false"

ItemStyle-VerticalAlign="Top" HeaderStyle-Wrap="false">

<ItemTemplate>

<a href='<%# ResolveClientUrl("~/admin/User.aspx?UserID=" + Eval("UserID")) %>' title='View User'>

<%# String.Format("{0} - {1} {2}", Eval("UserID"), Eval("FirstName"), Eval("LastName")) %>

</a>

</ItemTemplate>

</rad:GridTemplateColumn>

<rad:GridTemplateColumn HeaderText="Delete" ItemStyle-VerticalAlign="Top">

<ItemTemplate>

<asp:LinkButton ID="lbDelete" CssClass="deleteIcon" CommandName="DeleteFeedback"

OnClientClick="return confirm('Are you sure you want to delete this comment?');"

CommandArgument='<%# Eval("FeedbackID") %>' ToolTip="Delete this comment" runat="server" />

</ItemTemplate>

</rad:GridTemplateColumn>

</Columns>

<CommandItemTemplate>

<table class='rgCommandTable' style='width: 100%;'>

<tr>

<td align="left">

</td>

<td align="right">

<asp:ImageButton ID="ibExportToExcel" CommandName="ExportToExcel" ImageUrl="~/ui/images/excel.png"

runat="server" />

<asp:ImageButton ID="ibExportToPdf" CommandName="ExportToPdf" ImageUrl="~/ui/images/doc_pdf.png"

runat="server" />

<asp:ImageButton ID="ibExportToWord" CommandName="ExportToWord" ImageUrl="~/ui/images/page_white_word.png"

runat="server" />

</td>

</tr>

</table>

</CommandItemTemplate>

</MasterTableView>

<ClientSettings AllowExpandCollapse="true" />

</rad:RadGrid>

Code Behind:

protected void rgFeedback_NeedDataSource(object source, Telerik.Web.UI.GridNeedDataSourceEventArgs e)

{

rgFeedback.DataSource = sdsFeedback;

}

I have tried setting the DataSource both in the front end and in the code behind.
both ways that I do it a get a duplicate row

answered on 24 Jan 2011, 02:21 PM

Hi Bharathwajan,

If you want to display a tree-like structure, Set the FilterExpression property of the MasterTableView to filter out all items except those that belong at the root level of the hierarchy. Note that this must be done on Page_Load, so that the filter does not apply to any detail tables.

In your case in order to avoid one and the same value to repeat twice you should also set the RadGrid.MasterTableView.FilterExpression property on Page_Load. More information is available here:
http://www.telerik.com/help/aspnet-ajax/grdselfreferencinghierarchy.html

Additionally, you can refer to this article for more information on RadGrid FilterExpressions.

I hope this helps.

Kind regards,
Pavlina
the Telerik team
