Want to pick files from the device and visualize them in your mobile and desktop applications? No problem! It’s more than easy with Xamarin.Essentials and Telerik UI for Xamarin controls.

In this blog post, we will go through how to use the FilePicker API. We will implement a sample UI for picking images, pdf documents, and selecting multiple images. But what’s next? 🧐 We want to visualize these files in our application, so we need proper controls, right? And the Telerik UI for Xamarin suite comes in to help us! 🎉

Getting Started With Xamarin.Essentials FilePicker

The FilePicker allows us to pick a single or multiple file from the device more than easily. We need a single NuGet package installed to our existing project or new project—Xamarin.Essentials NuGet package.

Platform Settings

📗 On Android

1. Make sure the Xamarin.Essentials is initialized inside the OnCreate() method of the MainActivity.cs file of the Android project:

Xamarin.Essentials.Platform.Init(this, savedInstanceState);

2. For handling runtime permissions on Android, inside the MainActivity.cs file—override the OnRequestPermissionsResult() method:

public override void OnRequestPermissionsResult(int requestCode, string[] permissions, [GeneratedEnum] Android.Content.PM.Permission[] grantResults)
{
Xamarin.Essentials.Platform.OnRequestPermissionsResult(requestCode, permissions, grantResults);
base.OnRequestPermissionsResult(requestCode, permissions, grantResults);
}

3. Grant permissions to read data from the external storage. We can use one of the following options:

  • Open the AssemblyInfo.cs file located inside the Properties folder and add the following code:

    [assembly: UsesPermission(Android.Manifest.Permission.ReadExternalStorage)]
  • Open the AndroidManifest.xml file inside the Properties folder and add the following inside of the manifest node:

    <uses-permission android:name="android.permission.READ_EXTERNAL_STORAGE" />

Android permissions popup:

android device storage permissions

✅ iOS and UWP

They don’t require additional setup.

FilePicker API

FilePicker class gives us two methods for picking file(s):

  • PickAsync() – gives us the option to pick a single file from the device.
  • PickMultipleAsync() – gives us the option to pick multiple files from the device.

Both methods have a parameter PickOptions for specifying additional information like:

  • PickerTitle – which is only used on Android platform
  • FileTypes with predefined types like Images, Png, Jpeg, Videos, Pdf
var seletedImage = await FilePicker.PickAsync(new PickOptions
{
FileTypes = FilePickerFileType.Images,
PickerTitle = "Select an image"
});

Of course, we can specify custom file types per platform. For example, if we want the user to be able to pick a .txt file on iOS, a .pdf file on Android, and .txt/.pdf/.docx files on UWP, we’d use the following simple code:

var customFileType =
new FilePickerFileType(new Dictionary<DevicePlatform, IEnumerable<string>>
{
{ DevicePlatform.iOS, new[] { ".txt" } },
{ DevicePlatform.Android, new[] { ".png" } },
{ DevicePlatform.UWP, new[] { ".docx", ".txt", ".pdf" } },
});
var options = new PickOptions
{
PickerTitle = "Please select a comic file",
FileTypes = customFileType,
};
var result = await FilePicker.PickAsync(options);

We will use PickAsync() and PickMultipleAsync() methods in our demo.👌

❗ We must add the following namespace where the FilePicker API is used:

using Xamarin.Essentials;

Demo Time 😍

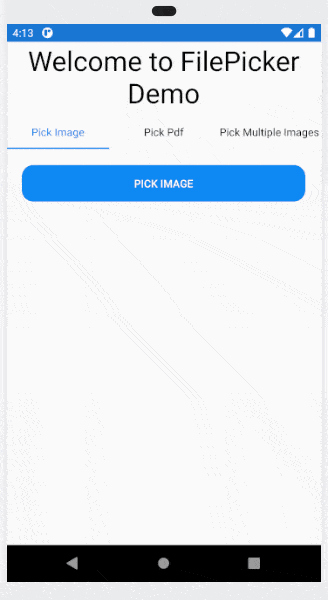

This is what the FilePicker demo looks like:

file picker xamarin demo

The demo uses the following Telerik UI for Xamarin controls:

  • RadTabView for switching between different options—single image, PDF file, and multiple image selection
  • RadButton for its Click event, which will open the file picker
  • RadPdfViewer for visualizing the selected PDF document
  • RadListView for visualizing multiple images

I have added the Telerik UI for Xamarin controls to the project using the Telerik NuGet Server.

Let’s Start With the XAML

<?xml version="1.0" encoding="utf-8" ?>
xmlns:telerikInput="clr-namespace:Telerik.XamarinForms.Input;assembly=Telerik.XamarinForms.Input"
xmlns:telerikPrimitives="clr-namespace:Telerik.XamarinForms.Primitives;assembly=Telerik.XamarinForms.Primitives"
xmlns:telerikPdfViewer="clr-namespace:Telerik.XamarinForms.PdfViewer;assembly=Telerik.XamarinForms.PdfViewer"
xmlns:telerikDataControls="clr-namespace:Telerik.XamarinForms.DataControls;assembly=Telerik.XamarinForms.DataControls"
xmlns:telerikListView="clr-namespace:Telerik.XamarinForms.DataControls.ListView;assembly=Telerik.XamarinForms.DataControls"
x:Class="FilePickerDemo.MainPage">
<ContentPage.Resources>
<ResourceDictionary>
<Style TargetType="telerikPrimitives:TabViewHeaderItem">
<Setter Property="TextColor" Value="Black"/>
<Setter Property="SelectedColor" Value="#0E88F2"/>
</Style>
<Style TargetType="telerikInput:RadButton">
<Setter Property="WidthRequest" Value="100"/>
<Setter Property="CornerRadius" Value="15"/>
<Setter Property="Margin" Value="10"/>
<Setter Property="TextColor" Value="White"/>
<Setter Property="BackgroundColor" Value="#0E88F2"/>
</Style>
</ResourceDictionary>
</ContentPage.Resources>
<Grid RowDefinitions="Auto,*">
<Label Text="Welcome to FilePicker Demo"
HorizontalTextAlignment="Center"
TextColor="Black"
FontSize="36"/>
<telerikPrimitives:RadTabView Grid.Row="1"
IsContentPreserved="True"
IsContentSwipingEnabled="False">
<telerikPrimitives:RadTabView.Items>
<telerikPrimitives:TabViewItem HeaderText="Pick Image">
<telerikPrimitives:TabViewItem.Content>
<StackLayout Margin="10">
<telerikInput:RadButton Text="Pick Image" Clicked="OnPickImageClicked"/>
<Label x:Name="PickedImageInfo" FontSize="16" Margin="10"/>
<Image x:Name="image" HeightRequest="200" WidthRequest="200"/>
</StackLayout>
</telerikPrimitives:TabViewItem.Content>
</telerikPrimitives:TabViewItem>
<telerikPrimitives:TabViewItem HeaderText="Pick Pdf">
<telerikPrimitives:TabViewItem.Content>
<Grid RowDefinitions="Auto,*" Margin="10">
<telerikInput:RadButton Text="Pick Pdf Document" Clicked="OnPickPdfClicked"/>
<telerikPdfViewer:RadPdfViewer x:Name="pdfViewer" Grid.Row="1" BackgroundColor="Transparent"/>
</Grid>
</telerikPrimitives:TabViewItem.Content>
</telerikPrimitives:TabViewItem>
<telerikPrimitives:TabViewItem HeaderText="Pick Multiple Images">
<telerikPrimitives:TabViewItem.Content>
<Grid RowDefinitions="Auto,*" Margin="10">
<telerikInput:RadButton Text="Pick Multiple Images" Clicked="OnPickMultipleImagesClicked"/>
<telerikDataControls:RadListView x:Name="listView" Grid.Row="1">
<telerikDataControls:RadListView.ItemTemplate>
<DataTemplate>
<telerikListView:ListViewTemplateCell>
<telerikListView:ListViewTemplateCell.View>
<StackLayout Margin="10">
<Image HeightRequest="100"
WidthRequest="100"
VerticalOptions="Center" Source="{Binding .}" />
</StackLayout>
</telerikListView:ListViewTemplateCell.View>
</telerikListView:ListViewTemplateCell>
</DataTemplate>
</telerikDataControls:RadListView.ItemTemplate>
</telerikDataControls:RadListView>
</Grid>
</telerikPrimitives:TabViewItem.Content>
</telerikPrimitives:TabViewItem>
</telerikPrimitives:RadTabView.Items>
</telerikPrimitives:RadTabView>
</Grid>
</ContentPage>

As you can see in the XAML, we have a TabView control with three different TabViewItems. Next, let me take you through what each TabViewItem does.

Pick Image

The first tab is for picking a single image from the device. When the Button is clicked, we can pick an image from the device and visualize it in the Image control. Here is the OnPickImageClicked() implemetation:

private async void OnPickImageClicked(object sender, System.EventArgs e)
{
try
{
var seletedImage = await FilePicker.PickAsync(new PickOptions
{
FileTypes = FilePickerFileType.Images,
PickerTitle = "Select an image"
});
if (seletedImage != null)
{
var data = await seletedImage.OpenReadAsync();
PickedImageInfo.Text = $"The filename: {seletedImage.FileName} and file type: {seletedImage.ContentType}";
image.Source = ImageSource.FromStream(() => data);
}
return;
}
catch (Exception)
{
}
}

Pick PDF File

The second tab is for picking a pdf document and visualizing it in the RadPdfViewer. Here is the OnPickPdfClicked() implementation.

private async void OnPickPdfClicked(object sender, System.EventArgs e)
{
try
{
var selectedFile = await FilePicker.PickAsync(new PickOptions
{
FileTypes = FilePickerFileType.Pdf,
PickerTitle = "Select a pdf"
});
if (selectedFile != null)
{
var data = await selectedFile.OpenReadAsync();
PdfFormatProvider provider =new PdfFormatProvider();
RadFixedDocument document = provider.Import(data);
pdfViewer.Source = document;
pdfViewer.IsVisible = true;
}
return;
}
catch (Exception)
{
}
}

Pick Multiple Images

The third tab is for multiple image selection. When the button is clicked, we can select multiple images from the device and visualize them in the RadListView control. Here is the OnPickMultipleImagesClicked() implementation:

private async void OnPickMultipleImagesClicked(object sender, EventArgs e)
{
try
{
var selectedImage = await FilePicker.PickMultipleAsync(new PickOptions
{
FileTypes = FilePickerFileType.Images,
PickerTitle = "Select images"
});
var imageList = new List<ImageSource>();
if (selectedImage != null)
{
foreach (var selected in selectedImage)
{
var data = await selected.OpenReadAsync();
imageList.Add(ImageSource.FromStream(()=>data));
}
listView.ItemsSource = imageList;
}
return;
}
catch (Exception)
{
}
}

Pick HTML Documents

You can easily pick HTML documents and then visualize them in your desktop and mobile apps using the Telerik RichTextEditor for Xamarin.

Tell Us What You Think

We would love to hear what you think, so should you have any questions and/or comments, please share them in our Telerik UI for Xamarin Feedback Portal.

If you are new to Telerik UI for Xamarin, you can learn more about it via the product page. It comes with a 30-day free trial, giving you some time to explore the toolkit and consider using it for your current or upcoming Xamarin development.

World of .NET Cross-Platform Application Development

We would also like to share with you our preview UI components for .NET MAUI—Telerik UI for .NET MAUI. You can review the available controls and their features in our Telerik UI for .NET MAUI Demo Application.

Happy coding with our controls! 🧡
