In this blog post, you will learn more about the DomainUpDown control in Telerik UI for WinForms and how to use it to build a selection list for countries.

RadDomainUpDown in Telerik UI for WinForms is a combination of a text-box and a pair of moving up and down buttons to navigate through a limited selection of options. This control may save you some screen space since it occupies the space needed for a standard text-box. However, in addition, it allows the end user to select one of a variety of several items.

A common use-case is to build an input form for filling personal information. One of the required fields is the nationality. RadDomainUpDown is suitable for introducing the countries options if you don’t want to allocate  a lot of space on the form.

DomainUpDown_Animated

Adding Countries to the DomainUpDown Control

You can add the country items either at design time or at run time.

Adding Items at Design Time

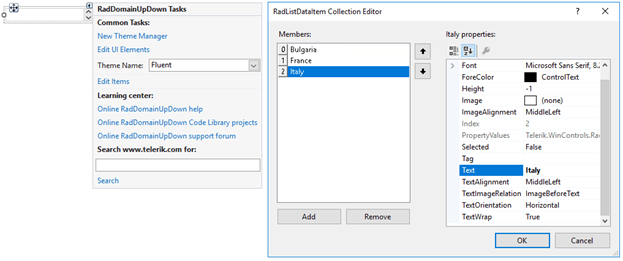

The RadListDataItem Collection Editor allows you to do that. You can access it through the Smart tag >> Edit Items option:

DUD_01

Adding Items at Run Time

For each country option, add a RadListDataItem to the Items collection that RadDomainUpDown offers:

RadListDataItem item1 = new RadListDataItem("Bulgaria");
RadListDataItem item2 = new RadListDataItem("France");
RadListDataItem item3 = new RadListDataItem("Italy");
this.radDomainUpDown1.Items.AddRange(new List<RadListDataItem>()

{
    item1,
    item2,
    item3
});

Adding Flags to the Countries

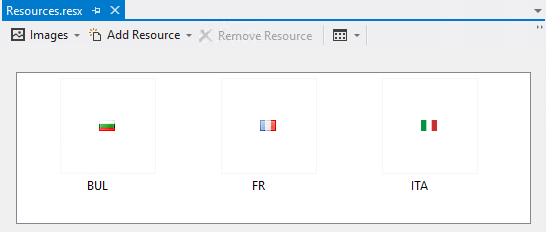

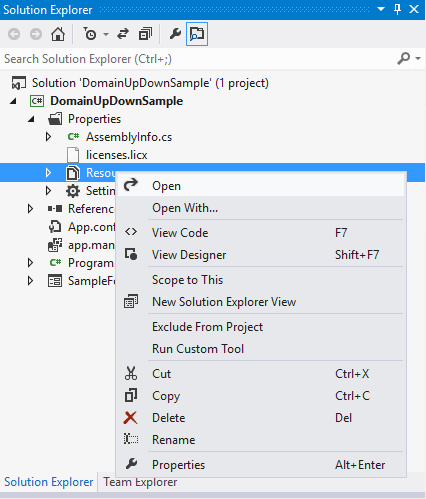

Open the project’s Resources and add the flags for the countries that you have added:

DUD_02

DUD_03

Adding Country Flags at Design Time

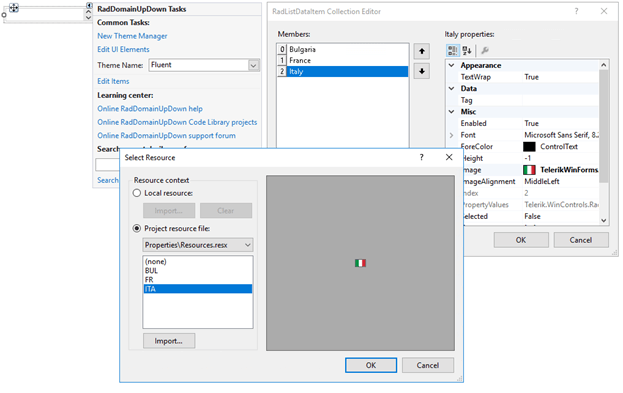

Open the RadListDataItem Collection Editor again and assign an image to each RadListDataItem:

DUD_04

Adding Country Flags at Run Time

Set the Image property for each RadListDataItem:

item1.Image = Properties.Resources.BUL;
item2.Image = Properties.Resources.FR;
item3.Image = Properties.Resources.ITA;

The last thing to do is to set the ReadOnly property to true. Thus, the item’s image will be shown next to the text after making a selection:

DUD_05

Wrapping Items

Set the Wrap property to true if you need the selected item to revert to the first item after reaching the last item and vice versa.

DomainUpDownWrap

Data Validating

The SelectedIndexChanging event allows you to control whether the newly selected item is valid according to the other fields’ input, e.g. selected town. If the selection is not valid simply set the Cancel argument to true:

private void radDomainUpDown1_SelectedIndexChanging(object sender,
    Telerik.WinControls.UI.Data.PositionChangingCancelEventArgs e)
{
    if (e.Position>-1 && this.radDomainUpDown1.Items[e.Position].Text=="Italy")
    {
        e.Cancel = true;
    }
}

Try It Out and Share Your Feedback

You can learn more about the Telerik UI for WinForms suite via the product page. It comes with a 30-day free trial, giving you some time to explore the toolkit and consider using it for your current or upcoming WinForms development.

Start My Trial

We would love to hear what you think, so should you have any questions and/or comments, please share them to our Feedback Portal.
