Timeline Views

The Gantt Timeline provides four predefined views, which dictate how much time a single time slot represents:

View	One Slot Is	Main Header Shows	Secondary Header Shows
DayView	1 Hour	Day	Hours
WeekView	1 Day	Week	Days
MonthView	1 Week	Month	Weeks
YearView	1 Month	Year	Months

Basics

To use the desired Views for the Timeline:

1. Under the <GanttViews> define the desired views. (You should include at least one view that the Timeline will display, otherwise the component will throw an exception).

2. Use the features the views expose to control their setup

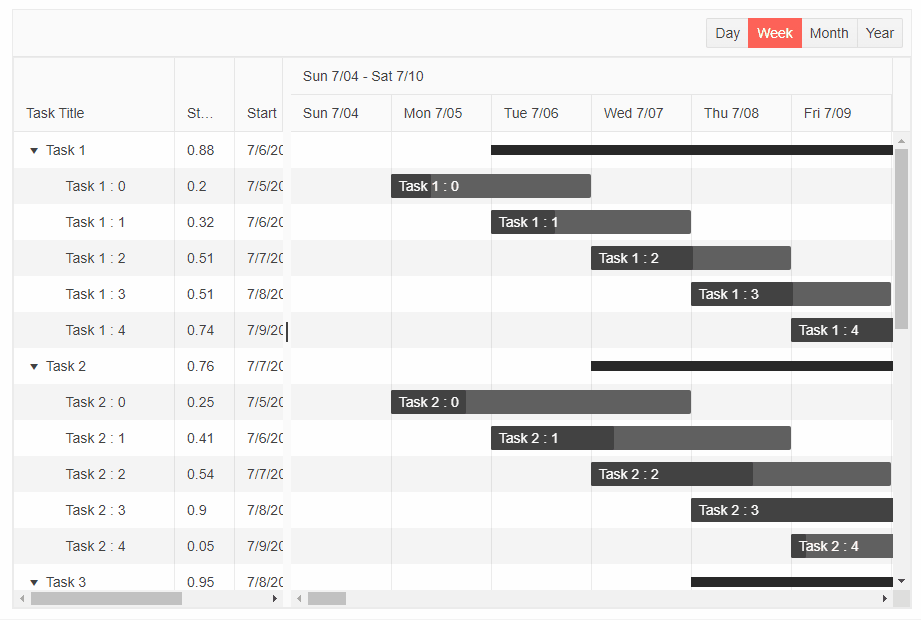

Define and configure the Gantt Timeline Views. The result from the snippet

<TelerikGantt Data="@Data"
              @bind-View="@SelectedView"
              Width="900px"
              Height="600px"
              IdField="Id"
              ParentIdField="ParentId"
              OnUpdate="@UpdateItem"
              OnDelete="@DeleteItem">
    <GanttViews>
        <GanttDayView SlotWidth="80"
                      RangeStart="@(new DateTime(2021, 7, 5, 0, 0, 0))"
                      RangeEnd="@(new DateTime(2021, 8, 31, 0, 0, 0))">
        </GanttDayView>
        <GanttWeekView SlotWidth="100"
                       RangeStart="@(new DateTime(2021, 7, 5, 0, 0, 0))"
                       RangeEnd="@(new DateTime(2021, 10, 1, 0, 0, 0))">
        </GanttWeekView>
        <GanttMonthView SlotWidth="100"
                        RangeStart="@(new DateTime(2021, 7, 1, 0, 0, 0))"
                        RangeEnd="@(new DateTime(2021, 12, 1, 0, 0, 0))">
        </GanttMonthView>
        <GanttYearView SlotWidth="30"
                       RangeStart="@(new DateTime(2021, 1, 1, 0, 0, 0))"
                       RangeEnd="@(new DateTime(2022, 12, 31, 0, 0, 0))">
        </GanttYearView>
    </GanttViews>
    <GanttColumns>
        <GanttColumn Field="Title"
                     Expandable="true"
                     Width="160px"
                     Title="Task Title">
        </GanttColumn>
        <GanttColumn Field="PercentComplete"
                     Title="Status"
                     Width="60px">
        </GanttColumn>
        <GanttColumn Field="Start"
                     Width="100px"
                     DisplayFormat="{0:d}">
        </GanttColumn>
        <GanttColumn Field="End"
                     Width="100px"
                     DisplayFormat="{0:d}">
        </GanttColumn>
    </GanttColumns>
</TelerikGantt>

@code {
    public GanttView SelectedView { get; set; } = GanttView.Week;

    List<FlatModel> Data { get; set; }

    class FlatModel
    {
        public int Id { get; set; }
        public int? ParentId { get; set; }
        public string Title { get; set; }
        public double PercentComplete { get; set; }
        public DateTime Start { get; set; }
        public DateTime End { get; set; }
    }

    public int LastId { get; set; } = 1;

    protected override void OnInitialized()
    {
        Data = new List<FlatModel>();
        var random = new Random();

        for (int i = 1; i < 6; i++)
        {
            var newItem = new FlatModel()
            {
                Id = LastId,
                Title = "Task  " + i.ToString(),
                Start = new DateTime(2021, 7, 5 + i),
                End = new DateTime(2021, 7, 11 + i),
                PercentComplete = Math.Round(random.NextDouble(), 2)
            };

            Data.Add(newItem);
            var parentId = LastId;
            LastId++;

            for (int j = 0; j < 5; j++)
            {
                Data.Add(new FlatModel()
                {
                    Id = LastId,
                    ParentId = parentId,
                    Title = "    Task " + i + " : " + j.ToString(),
                    Start = new DateTime(2021, 7, 5 + j),
                    End = new DateTime(2021, 7, 6 + i + j),
                    PercentComplete = Math.Round(random.NextDouble(), 2)
                });

                LastId++;
            }
        }

        base.OnInitialized();
    }

    private void UpdateItem(GanttUpdateEventArgs args)
    {
        var item = args.Item as FlatModel;

        var foundItem = Data.FirstOrDefault(i => i.Id.Equals(item.Id));

        if (foundItem != null)
        {
            foundItem.Title = item.Title;
            foundItem.Start = item.Start;
            foundItem.End = item.End;
            foundItem.PercentComplete = item.PercentComplete;
        }
    }

    private void DeleteItem(GanttDeleteEventArgs args)
    {
        var item = Data.FirstOrDefault(i => i.Id.Equals((args.Item as FlatModel).Id));

        RemoveChildRecursive(item);
    }

    private void RemoveChildRecursive(FlatModel item)
    {
        var children = Data.Where(i => item.Id.Equals(i.ParentId)).ToList();

        foreach (var child in children)
        {
            RemoveChildRecursive(child);
        }

        Data.Remove(item);
    }
}

View Parameters

Parameter	Type	Description
SlotWidth	double	The width of each individual slot in pixels.
RangeStart	DateTime	Determines where the view should start. If not provided, the value is calculated based on the data source. If no data is present DateTime.Now is used, and the view shows a single major time slot (a day in DayView, month in MonthView and so on).
RangeEnd	DateTime	Determines where the view should end. If not provided the value is calculated based on the data source.

See Also

• Live Demo: Gantt Views
