Column Chooser Template
The Column Chooser Template lets you control the rendering of the ColumnChooser. It exposes a context object that contains a list of all columns in the Gantt.
When you set up the Column Chooser Template, the list of columns that are rendered by default will not be present.
Using the Template to provide custom rendering
@* Use the Template to render the list of columns and add some custom styles. *@
<TelerikGantt Data="@Data"
Width="900px"
Height="600px"
IdField="Id"
ParentIdField="ParentId"
Navigable="true"
ColumnReorderable="true"
Sortable="true"
ColumnResizable="true"
FilterMode="@GanttFilterMode.FilterMenu"
ShowColumnMenu="true">
<GanttSettings>
<GanttColumnMenuSettings>
<GanttColumnMenuChooser>
<Template>
@{
var columns = context.Columns;
foreach (var column in columns)
{
<div style="border: solid 1px red">
<GanttColumnMenuChooserItem Title="@column.DisplayTitle" ColumnId="@column.Id" />
</div>
}
}
</Template>
</GanttColumnMenuChooser>
</GanttColumnMenuSettings>
</GanttSettings>
<GanttViews>
<GanttDayView></GanttDayView>
<GanttWeekView></GanttWeekView>
<GanttMonthView></GanttMonthView>
<GanttYearView></GanttYearView>
</GanttViews>
<GanttColumns>
<GanttColumn Field="@nameof(FlatModel.Title)" Id="title-column-id">
</GanttColumn>
<GanttColumn Field="@nameof(FlatModel.PercentComplete)" Id="percentcomplete-column-id">
</GanttColumn>
<GanttColumn Field="@nameof(FlatModel.Start)" Id="start-column-id">
</GanttColumn>
<GanttColumn Field="@nameof(FlatModel.End)" Id="end-column-id">
</GanttColumn>
</GanttColumns>
</TelerikGantt>
@code {
private DateTime SelectedDate { get; set; } = new DateTime(2019, 11, 11, 6, 0, 0);
public class FlatModel
{
public int Id { get; set; }
public int? ParentId { get; set; }
public string Title { get; set; }
public double PercentComplete { get; set; }
public DateTime Start { get; set; }
public DateTime End { get; set; }
}
private int LastId { get; set; } = 1;
private List<FlatModel> Data { get; set; }
protected override void OnInitialized()
{
Data = new List<FlatModel>();
var random = new Random();
for (int i = 1; i < 6; i++)
{
var newItem = new FlatModel()
{
Id = LastId,
Title = "Employee " + i.ToString(),
Start = new DateTime(2020, 12, 10 + i),
End = new DateTime(2020, 12, 11 + i),
PercentComplete = Math.Round(random.NextDouble(), 2)
};
Data.Add(newItem);
var parentId = LastId;
LastId++;
for (int j = 0; j < 5; j++)
{
Data.Add(new FlatModel()
{
Id = LastId,
ParentId = parentId,
Title = " Employee " + i + " : " + j.ToString(),
Start = new DateTime(2020, 12, 20 + j),
End = new DateTime(2020, 12, 21 + i + j),
PercentComplete = Math.Round(random.NextDouble(), 2)
});
LastId++;
}
}
base.OnInitialized();
}

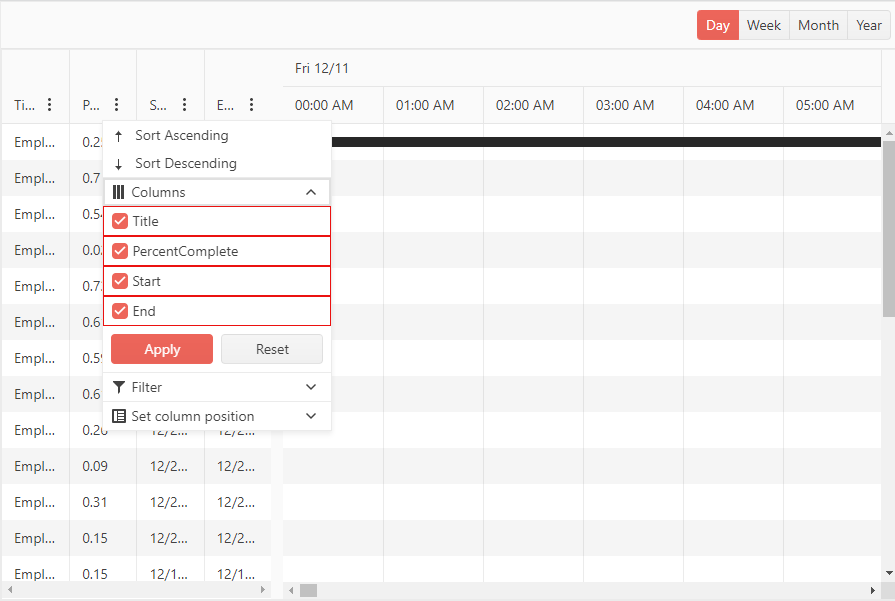

}The result from the code snippet above
