Blazor Filter Integration

Updated on Jan 27, 2026

You can integrate the Filter component with different databound components. This allows users to build complex filtering criteria that may not be supported by the databound component UI.

This article contains sections and examples for Filter integration with:

• Chart
• Grid
• ListView
• TreeList
• TreeView

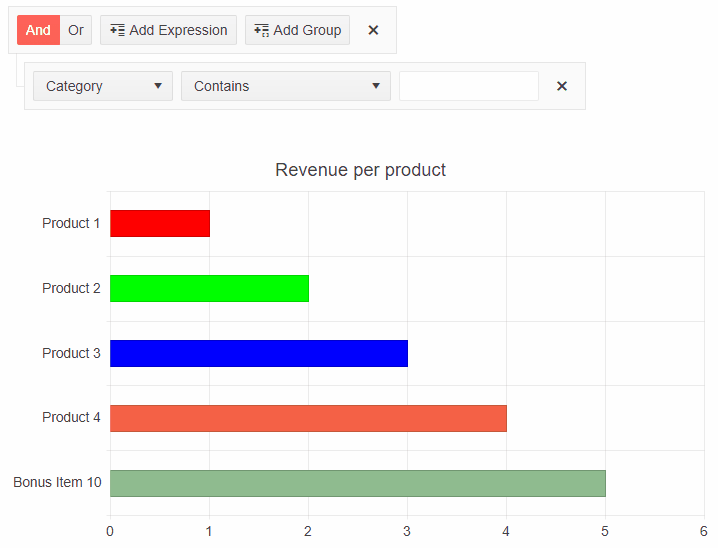

Filter a Chart

To integrate the Filter with the Telerik Chart:

1. Set the Value parameter of the Filter.
2. Update the ChartSeries Data, based on the Filter Value. If you want to filter automatically on each user change, subscribe to the Filter OnUpdate event.
3. Refresh() the Chart.

Use a Filter component with a ListView

@using Telerik.DataSource
@using Telerik.DataSource.Extensions

<TelerikFilter Value="@FilterValue" OnUpdate="@OnUpdate">
    <FilterFields>
        <FilterField Name="@(nameof(MyChartDataModel.ItemValue))" Type="@(typeof(double))" Label="Value"></FilterField>
        <FilterField Name="@(nameof(MyChartDataModel.Category))" Type="@(typeof(string))" Label="Category"></FilterField>
        <FilterField Name="@(nameof(MyChartDataModel.Color))" Type="@(typeof(string))" Label="Color"></FilterField>
    </FilterFields>
</TelerikFilter>

<TelerikChart @ref="myChartRef">
    <ChartSeriesItems>
        <ChartSeries Type="ChartSeriesType.Bar" Data="@ChartData" ColorField="@nameof(MyChartDataModel.Color)"
                     Field="@nameof(MyChartDataModel.ItemValue)" CategoryField="@nameof(MyChartDataModel.Category)" />
    </ChartSeriesItems>

    <ChartTitle Text="Revenue per product" />

    <ChartLegend Position="ChartLegendPosition.Right" />
</TelerikChart>

@code {
    TelerikChart myChartRef;
    private CompositeFilterDescriptor FilterValue { get; set; } = new CompositeFilterDescriptor();
    public static List<MyChartDataModel> InitialData { get; set; } = new List<MyChartDataModel>();
    public List<MyChartDataModel> ChartData { get; set; }

    public class MyChartDataModel
    {
        public string Category { get; set; }
        public double ItemValue { get; set; }
        public string Color { get; set; }
    }

    private void OnUpdate()
    {
        var dataSourceRequest = new DataSourceRequest { Filters = new List<IFilterDescriptor> { FilterValue } };

        var datasourceResult = InitialData.ToDataSourceResult(dataSourceRequest);

        ChartData = datasourceResult.Data.Cast<MyChartDataModel>().ToList();
        myChartRef.Refresh();
    }

    protected override void OnInitialized()
    {
        LoadData();
    }

    private void LoadData()
    {
        List<MyChartDataModel> items = new List<MyChartDataModel>
        {
            new MyChartDataModel
            {
                Category = "Product 1",
                ItemValue = 1,
                Color = "red"
            },
            new MyChartDataModel
            {
                Category = "Product 2",
                ItemValue = 2,
                Color = "#00ff00"
            },
            new MyChartDataModel
            {
                Category = "Product 3",
                ItemValue = 3,
                Color = "#00f"
            },
            new MyChartDataModel
            {
                Category = "Product 4",
                ItemValue = 4,
                Color = "#f56147"
            },
            new MyChartDataModel
            {
                Category = "Bonus Item 10",
                ItemValue = 5,
                Color = "darkseagreen"
            }
        };

        InitialData = items;
        ChartData = InitialData;
    }
}

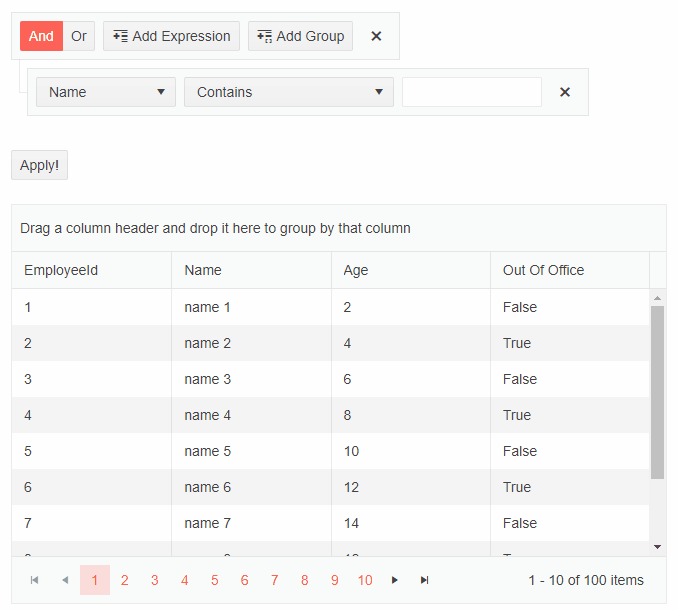

Filter a Grid

To integrate the Filter with the Telerik Grid:

1. Set the Value parameter of the Filter.
2. Update the Grid Data on demand, based on the Filter Value. If you want to filter automatically on each user change, subscribe to the Filter OnUpdate event.

Use a Filter component with a Grid

@using Telerik.DataSource;
@using Telerik.DataSource.Extensions;

<TelerikFilter Value="FilterValue" OnUpdate="@OnFilterUpdate">
    <FilterFields>
        <FilterField Name="@(nameof(Person.Id))" Type="@(typeof(int))" Label="Id"></FilterField>
        <FilterField Name="@(nameof(Person.Name))" Type="@(typeof(string))" Label="First Name"></FilterField>
        <FilterField Name="@(nameof(Person.BirthDate))" Type="@(typeof(int))" Label="Age"></FilterField>
        <FilterField Name="@(nameof(Person.IsDriver))" Type="@(typeof(bool))" Label="Out Of Office"></FilterField>
    </FilterFields>
</TelerikFilter>

<p>
    <TelerikButton ThemeColor="@ThemeConstants.Button.ThemeColor.Primary"
                   OnClick="@ApplyFilters">Apply Filters</TelerikButton>
</p>

<TelerikGrid Data="@GridData"
             Height="300px"
             Pageable="true"
             Sortable="true">
    <GridColumns>
        <GridColumn Field="@(nameof(Person.Id))" />
        <GridColumn Field="@(nameof(Person.Name))" Title="Employee Name" />
        <GridColumn Field="@(nameof(Person.BirthDate))" Title="Birth Date" DisplayFormat="{0:d}" />
        <GridColumn Field="@(nameof(Person.IsDriver))" Title="Drivers License" />
    </GridColumns>
</TelerikGrid>

@code {
    private CompositeFilterDescriptor FilterValue { get; set; } = new();
    private List<Person> AllData { get; set; } = new();
    private List<Person> GridData { get; set; } = new();

    private async Task ApplyFilters()
    {
        DataSourceRequest dataSourceRequest = new DataSourceRequest { Filters = new List<IFilterDescriptor>() { FilterValue } };

        DataSourceResult datasourceResult = await AllData.ToDataSourceResultAsync(dataSourceRequest);

        GridData = datasourceResult.Data.Cast<Person>().ToList();
    }

    private void OnFilterUpdate()
    {
        // EventCallback to refresh the Filter component UI
    }

    protected override void OnInitialized()
    {
        var rnd = Random.Shared;

        AllData = Enumerable.Range(1, 100).Select(x => new Person
        {
            Id = x,
            Name = $"Name {x} {(char)rnd.Next(65, 91)}{(char)rnd.Next(65, 91)}",
            BirthDate = DateTime.Today.AddDays(-rnd.Next(1, 365)).AddYears(rnd.Next(18, 65)),
            IsDriver = x % 5 != 0
        }).ToList();

        GridData = new List<Person>(AllData);

        base.OnInitialized();
    }


    public class Person
    {
        public int Id { get; set; }

        public string Name { get; set; } = string.Empty;

        public DateTime BirthDate { get; set; }

        public bool IsDriver { get; set; }
    }
}

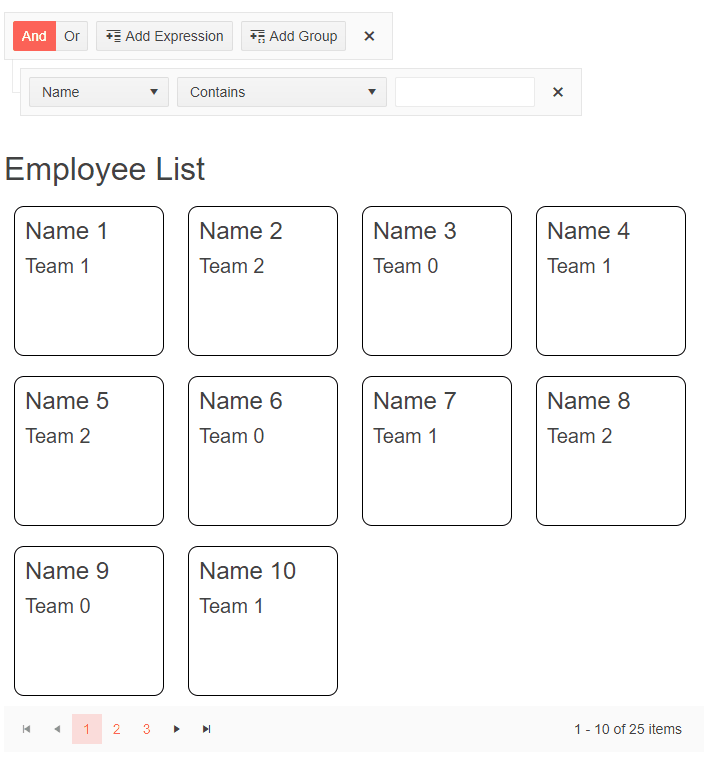

Filter a ListView

To integrate the Filter with the Telerik ListView:

1. Set the Value parameter of the Filter.
2. Update the ListView Data, based on the Filter Value. If you want to filter automatically on each user change, subscribe to the Filter OnUpdate event.

Use a Filter component with a ListView

@using Telerik.DataSource
@using Telerik.DataSource.Extensions

<TelerikFilter Value="@FilterValue" OnUpdate="@OnUpdate">
    <FilterFields>
        <FilterField Name="@(nameof(SampleData.Id))" Type="@(typeof(int))" Label="Id"></FilterField>
        <FilterField Name="@(nameof(SampleData.Name))" Type="@(typeof(string))" Label="Name"></FilterField>
        <FilterField Name="@(nameof(SampleData.Team))" Type="@(typeof(string))" Label="Team"></FilterField>
    </FilterFields>
</TelerikFilter>

<TelerikListView Data="@ListViewData" Width="700px" Pageable="true">
    <HeaderTemplate>
        <h2>Employee List</h2>
    </HeaderTemplate>
    <Template>
        <div class="listview-item">
            <h4>@context.Name</h4>
            <h5>@context.Team</h5>
        </div>
    </Template>
</TelerikListView>

@code {
    private CompositeFilterDescriptor FilterValue { get; set; } = new();

    private List<SampleData> ListViewData { get; set; } = InitialData;

    private void OnUpdate()
    {
        var dataSourceRequest = new DataSourceRequest { Filters = new List<IFilterDescriptor> { FilterValue } };

        var datasourceResult = InitialData.ToDataSourceResult(dataSourceRequest);

        ListViewData = datasourceResult.Data.Cast<SampleData>().ToList();
    }

    static List<SampleData> InitialData { get; set; } = Enumerable.Range(1, 25).Select(x => new SampleData
    {
        Id = x,
        Name = $"Name {x}",
        Team = $"Team {x % 3}"
    }).ToList();

    public class SampleData
    {
        public int Id { get; set; }
        public string Name { get; set; }
        public string Team { get; set; }
    }
}

<style>
    .listview-item {
        height: 150px;
        width: 150px;
        display: inline-block;
        margin: 10px;
        border: 1px solid black;
        border-radius: 10px;
        padding: 10px;
    }
</style>

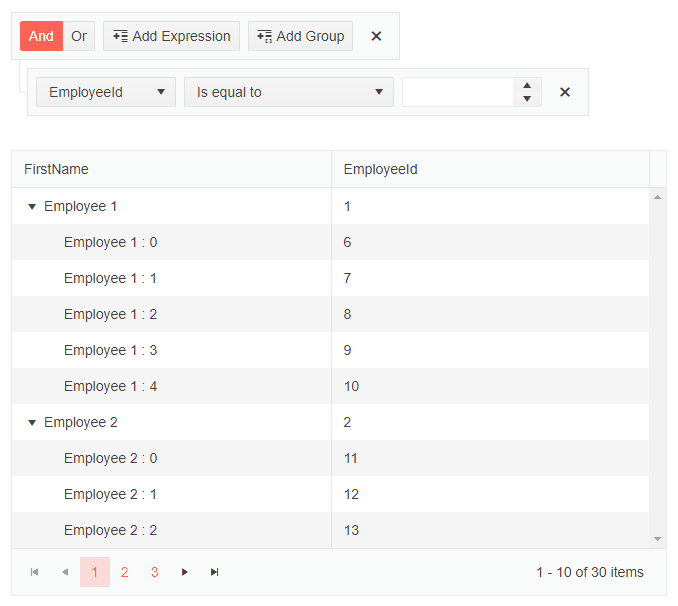

Filter a TreeList

To integrate the Filter with the Telerik TreeList:

1. Set the Value parameter of the Filter.
2. Update the TreeList Data, based on the Filter Value. If you want to filter automatically on each user change, subscribe to the Filter OnUpdate event.

Use a Filter component with a TreeList

@using Telerik.DataSource
@using Telerik.DataSource.Extensions

<TelerikFilter Value="@FilterValue" OnUpdate="@OnUpdate">
    <FilterFields>
        <FilterField Name="@(nameof(Employee.EmployeeId))" Type="@(typeof(int))" Label="Id"></FilterField>
        <FilterField Name="@(nameof(Employee.FirstName))" Type="@(typeof(string))" Label="First Name"></FilterField>
        <FilterField Name="@(nameof(Employee.ReportsTo))" Type="@(typeof(int?))" Label="Reports"></FilterField>
    </FilterFields>
</TelerikFilter>

<TelerikTreeList Data="@Data"
                 IdField="EmployeeId"
                 ParentIdField="ReportsTo"
                 Pageable="true">
    <TreeListColumns>
        <TreeListColumn Field="FirstName" Expandable="true"></TreeListColumn>
        <TreeListColumn Field="EmployeeId"></TreeListColumn>
    </TreeListColumns>
</TelerikTreeList>

@code {
    private CompositeFilterDescriptor FilterValue { get; set; } = new CompositeFilterDescriptor();
    public static List<Employee> InitialData { get; set; } = new List<Employee>();
    public List<Employee> Data { get; set; }

    private void OnUpdate()
    {
        var dataSourceRequest = new DataSourceRequest { Filters = new List<IFilterDescriptor> { FilterValue } };

        var datasourceResult = InitialData.ToDataSourceResult(dataSourceRequest);
        var filteredList = datasourceResult.Data.Cast<Employee>().ToList();
        Data = new List<Employee>();

        foreach (Employee item in filteredList)
        {
            var currentItem = item;
            Data.Add(currentItem);

            while (currentItem.ReportsTo != null)
            {
                var parent = InitialData.First(p => p.EmployeeId == currentItem.ReportsTo);

                if (!Data.Contains(parent))
                {
                    Data.Add(parent);
                }

                currentItem = parent;
            }
        }
    }

    public class Employee
    {
        public int EmployeeId { get; set; }
        public string FirstName { get; set; }
        public int? ReportsTo { get; set; }
    }

    protected override void OnInitialized()
    {
        List<Employee> items = new List<Employee>();
        var rand = new Random();
        int currentId = 1;

        for (int i = 1; i < 6; i++)
        {
            items.Add(new Employee()
            {
                EmployeeId = currentId,
                ReportsTo = null,
                FirstName = "Employee  " + i.ToString()
            });

            currentId++;
        }
        for (int i = 1; i < 6; i++)
        {
            for (int j = 0; j < 5; j++)
            {
                items.Add(new Employee()
                {
                    EmployeeId = currentId,
                    ReportsTo = i,
                    FirstName = "    Employee " + i + " : " + j.ToString()
                });

                currentId++;
            }
        }
        InitialData = items;
        Data = InitialData;
    }
}

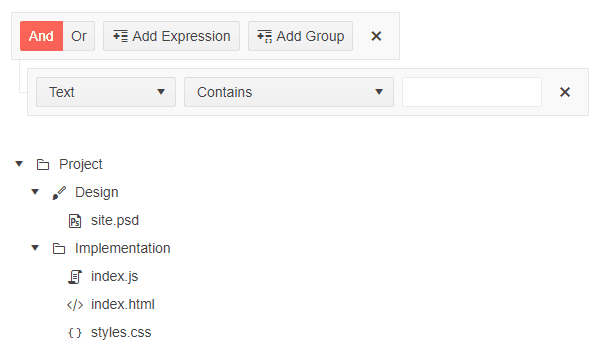

Filter a TreeView

To integrate the Filter with the Telerik TreeView:

1. Set the Value parameter of the Filter.
2. Update the TreeView Data, based on the Filter Value. If you want to filter automatically on each user change, subscribe to the Filter OnUpdate event.

Use a Filter component with a TreeView

@using Telerik.DataSource
@using Telerik.DataSource.Extensions

<TelerikFilter Value="@FilterValue" OnUpdate="@OnUpdate">
    <FilterFields>
        <FilterField Name="@(nameof(TreeItem.Id))" Type="@(typeof(int))" Label="Id"></FilterField>
        <FilterField Name="@(nameof(TreeItem.Text))" Type="@(typeof(string))" Label="Text"></FilterField>
        <FilterField Name="@(nameof(TreeItem.HasChildren))" Type="@(typeof(bool))" Label="Has Children"></FilterField>
    </FilterFields>
</TelerikFilter>

<TelerikTreeView Data="@FlatData" @bind-ExpandedItems="@ExpandedItems">
    <TreeViewBindings>
        <TreeViewBinding IdField="Id" ParentIdField="ParentIdValue"
                         TextField="Text" HasChildrenField="HasChildren" IconField="Icon" />
    </TreeViewBindings>
</TelerikTreeView>

@code {
    private CompositeFilterDescriptor FilterValue { get; set; } = new CompositeFilterDescriptor();
    public static List<TreeItem> InitialData { get; set; } = new List<TreeItem>();
    public List<TreeItem> FlatData { get; set; }
    public IEnumerable<object> ExpandedItems { get; set; } = new List<TreeItem>();

    private void OnUpdate()
    {
        var dataSourceRequest = new DataSourceRequest { Filters = new List<IFilterDescriptor> { FilterValue } };

        var datasourceResult = InitialData.ToDataSourceResult(dataSourceRequest);
        var filteredList = datasourceResult.Data.Cast<TreeItem>().ToList();
        FlatData = new List<TreeItem>();

        foreach (TreeItem item in filteredList)
        {
            var currentItem = item;
            FlatData.Add(currentItem);

            while (currentItem.ParentIdValue != null)
            {
                var parent = InitialData.First(p => p.Id == currentItem.ParentIdValue);

                if (!FlatData.Contains(parent))
                {
                    FlatData.Add(parent);
                }

                currentItem = parent;
            }
        }
        ExpandedItems = FlatData.Where(x => x.HasChildren == true).ToList();
    }

    public class TreeItem
    {
        public int Id { get; set; }
        public string Text { get; set; }
        public int? ParentIdValue { get; set; }
        public bool HasChildren { get; set; }
        public ISvgIcon Icon { get; set; }
    }

    protected override void OnInitialized()
    {
        LoadFlatData();
        ExpandedItems = FlatData.Where(x => x.HasChildren == true).ToList();
    }

    private void LoadFlatData()
    {
        List<TreeItem> items = new List<TreeItem>();

        items.Add(new TreeItem()
        {
            Id = 1,
            Text = "Project",
            ParentIdValue = null,
            HasChildren = true,
            Icon = SvgIcon.Folder
        });

        items.Add(new TreeItem()
        {
            Id = 2,
            Text = "Design",
            ParentIdValue = 1,
            HasChildren = true,
            Icon = SvgIcon.Brush
        });
        items.Add(new TreeItem()
        {
            Id = 3,
            Text = "Implementation",
            ParentIdValue = 1,
            HasChildren = true,
            Icon = SvgIcon.Folder
        });

        items.Add(new TreeItem()
        {
            Id = 4,
            Text = "site.psd",
            ParentIdValue = 2,
            HasChildren = false,
            Icon = SvgIcon.FilePsd
        });
        items.Add(new TreeItem()
        {
            Id = 5,
            Text = "index.js",
            ParentIdValue = 3,
            HasChildren = false,
            Icon = SvgIcon.Js
        });
        items.Add(new TreeItem()
        {
            Id = 6,
            Text = "index.html",
            ParentIdValue = 3,
            HasChildren = false,
            Icon = SvgIcon.Html5
        });
        items.Add(new TreeItem()
        {
            Id = 7,
            Text = "styles.css",
            ParentIdValue = 3,
            HasChildren = false,
            Icon = SvgIcon.Css
        });

        InitialData = items;
        FlatData = InitialData;
    }
}

See Also

• Online Demo: Filter
• Filter Events
