Radar Spline Area Series

Updated on Mar 26, 2026

When using RadarSplineAreaSeries the data points are connected with smooth line segments that enclose an area that may be optionally stroked and/or filled.

Properties

RadarSplineAreaSeries class inherits from the RadarAreaSeries class -

See the inherited properties.

Example

Examples 1 and 2 show how to create a RadCartesianChart using a RadarSplineAreaSeries.

Example 1: Defining the model and populating with data

C#

public sealed partial class MainPage : Page
{
	public MainPage()
	{
		this.InitializeComponent();

		List<Data> data = new List<Data>();
		for (double i = 1; i < 30; i += 1)
		{
			data.Add(new Data() { Category = i, Value = ((0.7) * Math.Cos(20 * i)) });
		}

		this.polarChart.DataContext = data;
	}
}

public class Data
{
	public double Value { get; set; }

	public double Category { get; set; }
}

Example 2: Defining the RadPolarChart and RadarSplineAreaSeries

XAML

<Grid xmlns:telerikChart="using:Telerik.UI.Xaml.Controls.Chart">
	<telerikChart:RadPolarChart x:Name="polarChart">
		<telerikChart:RadPolarChart.PolarAxis>
			<telerikChart:PolarAxis/>
		</telerikChart:RadPolarChart.PolarAxis>
		<telerikChart:RadPolarChart.RadialAxis>
			<telerikChart:CategoricalRadialAxis />
		</telerikChart:RadPolarChart.RadialAxis>

		<telerikChart:RadarSplineAreaSeries ItemsSource="{Binding}">
			<telerikChart:RadarSplineAreaSeries.ValueBinding>
				<telerikChart:PropertyNameDataPointBinding PropertyName="Value"/>
			</telerikChart:RadarSplineAreaSeries.ValueBinding>
			<telerikChart:RadarSplineAreaSeries.CategoryBinding>
				<telerikChart:PropertyNameDataPointBinding PropertyName="Category"/>
			</telerikChart:RadarSplineAreaSeries.CategoryBinding>
		</telerikChart:RadarSplineAreaSeries>
	</telerikChart:RadPolarChart>
</Grid>

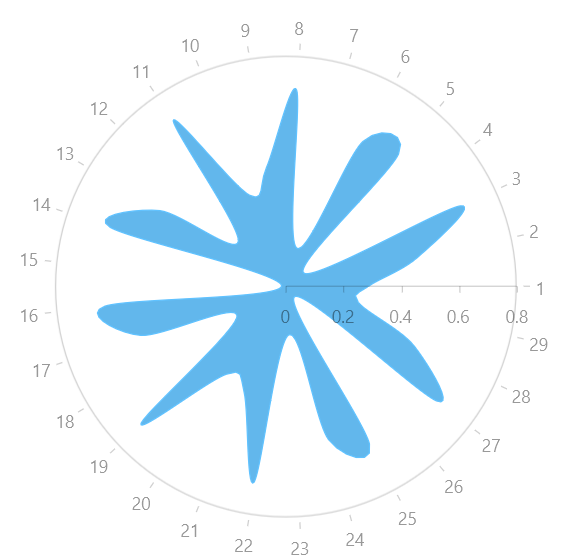

Figure 1: RadPolarChart and RadarSplineAreaSeries
