Step Line Series

Updated on Mar 26, 2026

The StepLineSeries is similar to the Line Series. The difference is that the StepLineSeries connects its points through a horizontal and vertical line instead of a straight line. The RisersPosition property defines the end of the first and the beginning of the second line.

Properties

StepLineSeries class inherits from the LineSeries class -

See the inherited properties.

• RisersPosition: Gets or sets the RisersPosition that will be used to draw the series.
  • Default: Risers' position depends on the axis' plot mode.
  • OnTicks: Risers will be positioned where the ticks of the axis are positioned.
  • BetweenTicks: Risers will be positioned between the ticks of the axis.

Example

Example 1 shows how to create a RadCartesianChart with a StepLineSeries.

Example 1: Defining a RadCartesianChart with a StepLineSeries

XAML

<Grid xmlns:telerikChart="using:Telerik.UI.Xaml.Controls.Chart"
	  xmlns:telerikCharting="using:Telerik.Charting">
	<telerikChart:RadCartesianChart>
		<telerikChart:RadCartesianChart.HorizontalAxis>
			<telerikChart:CategoricalAxis/>
		</telerikChart:RadCartesianChart.HorizontalAxis>
		<telerikChart:RadCartesianChart.VerticalAxis>
			<telerikChart:LinearAxis/>
		</telerikChart:RadCartesianChart.VerticalAxis>

		<telerikChart:StepLineSeries>
			<telerikCharting:CategoricalDataPoint Category="first" Value="10"/>
			<telerikCharting:CategoricalDataPoint Category="second" Value="20"/>
			<telerikCharting:CategoricalDataPoint Category="third" Value="30"/>
			<telerikCharting:CategoricalDataPoint Category="fourth" Value="15"/>
		</telerikChart:StepLineSeries>
	</telerikChart:RadCartesianChart>
</Grid>

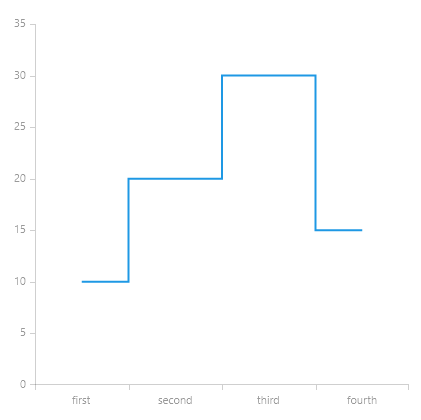

Figure 1: Result from Example 1
