FlagEnumEditor

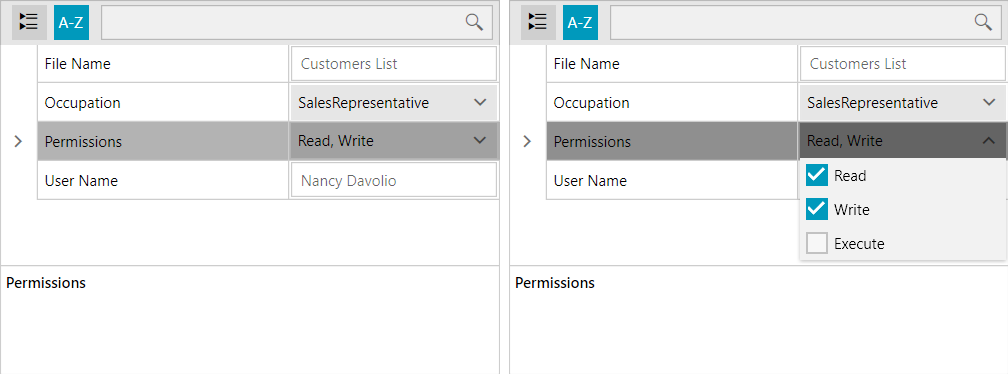

RadPropertyGrid now supports editing bit flag enum by exposing a new editor – FlagEnumEditor. It enables the user to store any combination of the values that are defined in the enumerator list:

You can define flag enum by setting FlagsAttribute as follows:

Defining flag enum

C#

	[Flags]
	public enum Permissions
	{
	    Read = 1,
	    Write = 2,
	    Execute = 4
	}

VB.NET

	<Flags()>
	Public Enum Permissions
	    Read = 1
	    Write = 2
	    Execute = 4
	End Enum

Each element should contain name and a value (which should be degree of 2 – 1, 2, 4, 8, 16, etc.).

You can find more information about enum and flag enum in this article.

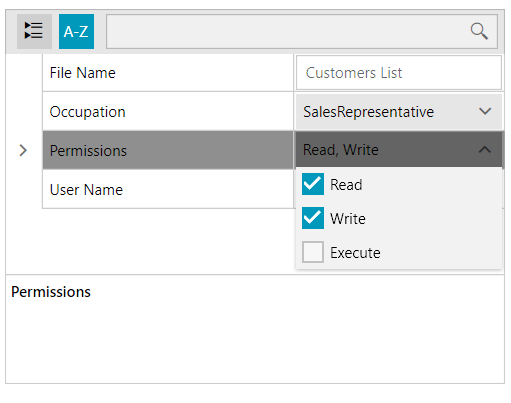

Once you define your flag enum, you can edit it in RadPropertyGrid as follows:

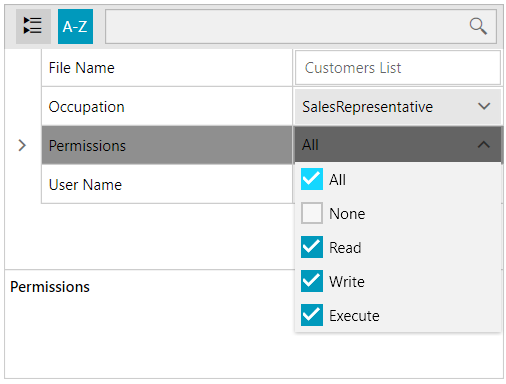

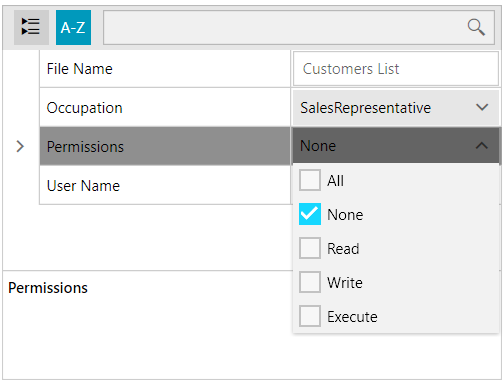

Furthermore, if you define zero and -1 values in your flag enum (meaning no flags are set and all flags are set correspondingly), you can benefit from the built-in functionality for selecting and unselecting the elements of the enum:

Defining the flag enum

C#

	[Flags]
	public enum PermissionsAllNone
	{
	    All = -1,
	    None = 0,
	    Read = 1,
	    Write = 2,
	    Execute = 4
	}

VB.NET

	<Flags()>
	Public Enum PermissionsAllNone
	    All = -1
	    None = 0
	    Read = 1
	    Write = 2
	    Execute = 4
	End Enum

Do not define values with 0 and -1 values if you do not mean to use them as select no flag and select all flags.

You can manually define your FlagEnumEditor in XAML, like so:

Defining the FlagEnumEditor

XAML

	<telerik:PropertyDefinition Binding="{Binding Permission}">
	    <telerik:PropertyDefinition.EditorTemplate>
	        <DataTemplate>
	            <telerik:FlagEnumEditor Value="{Binding Permission}" EnumType="my:Permissions"/>
	        </DataTemplate>
	    </telerik:PropertyDefinition.EditorTemplate>
	</telerik:PropertyDefinition>

Thus the FlagEnumEditor will look like this:

Display and Description Attributes

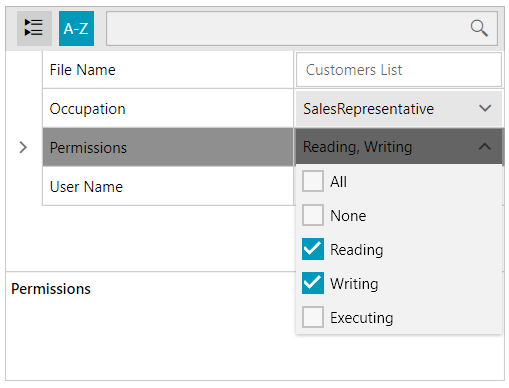

As of R2 2022 SP1, the FlagEnumEditor control supports the Display and Description attributes which let you specify user-friendly and/or localizable strings for the enum values used in the user interface.

Using the Display and Description attributes

C#

    [Flags]
    public enum Permissions
    {
        All = -1,
        None = 0,
        [Display(Name = "Reading")]
        Read = 1,
        [Description("Writing")]
        Write = 2,
        [Display(Name = "Executing")]
        [Description("Exe")]
        Execute = 4
    }

VB.NET

	<Flags>
	Public Enum Permissions
		All = -1
		None = 0
		<Display(Name := "Reading")>
		Read = 1
		<Description("Writing")>
		Write = 2
		<Display(Name := "Executing")><Description("Exe")>
		Execute = 4
	End Enum

The Display attribute takes precedence over the Description attribute.
