PolarAreaSeries

This series is visualized on the screen as a straight line connecting each of the DataPoints. As an addition this series also allows the area surrounded by the line to be colored in an arbitrary way.

Declaratively defined series

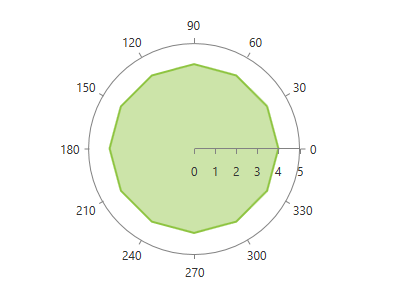

You can use the following definition to display a simple PolarAreaSeries

XAML

	<telerik:RadPolarChart Palette="Windows8">
		<telerik:RadPolarChart.PolarAxis>
			<telerik:PolarAxis />
		</telerik:RadPolarChart.PolarAxis>
		<telerik:RadPolarChart.RadialAxis>
			<telerik:NumericRadialAxis />
		</telerik:RadPolarChart.RadialAxis>
		<telerik:RadPolarChart.Series>
			<telerik:PolarAreaSeries>
				<telerik:PolarAreaSeries.DataPoints>
					<telerik:PolarDataPoint Angle="30" Value="4"/>
					<telerik:PolarDataPoint Angle="60" Value="4"/>
					<telerik:PolarDataPoint Angle="90" Value="4"/>
					<telerik:PolarDataPoint Angle="120" Value="4"/>
					<telerik:PolarDataPoint Angle="150" Value="4"/>
					<telerik:PolarDataPoint Angle="180" Value="4"/>
					<telerik:PolarDataPoint Angle="210" Value="4"/>
					<telerik:PolarDataPoint Angle="240" Value="4"/>
					<telerik:PolarDataPoint Angle="270" Value="4"/>
					<telerik:PolarDataPoint Angle="300" Value="4"/>
					<telerik:PolarDataPoint Angle="330" Value="4"/>
					<telerik:PolarDataPoint Angle="360" Value="4"/>
				</telerik:PolarAreaSeries.DataPoints>
			</telerik:PolarAreaSeries>
		</telerik:RadPolarChart.Series>
	</telerik:RadPolarChart>
