PlotBand Annotations

Plot Band Annotation is a stripe, crossing its corresponding axis, specified by the From and To properties.

Cartesian PlotBand Annotation

Cartesian PlotBand annotation is either a horizontal or a vertical stripe that crosses from start to end the vertical or the horizontal axis respectively.

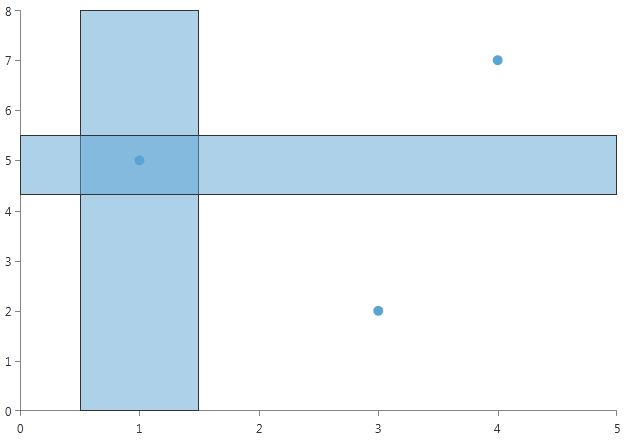

Here is what CartesianPlotBandAnnotation looks like:

XAML

	<telerik:CartesianPlotBandAnnotation From="4.3" To="5.5" Axis="{Binding ElementName=verticalAxis}"/>
	<telerik:CartesianPlotBandAnnotation From="0.5" To="1.5" Axis="{Binding ElementName=horizontalAxis}"/>

Polar Axis PlotBand Annotation

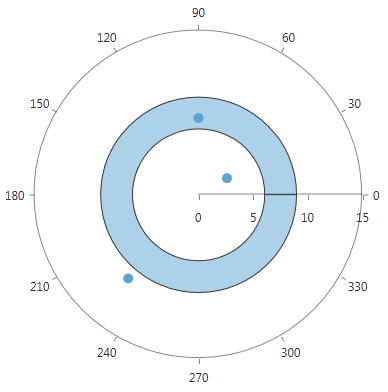

The Polar axis PlotBand annotation resembles a donut.

Here is what PolarAxisPlotBandAnnotation looks like:

XAML

	<telerik:PolarAxisPlotBandAnnotation From="6" To="9"/>

Radial Axis PlotBand Annotation

Radial Axis PlotBand annotations represent visually a sector of the circle (pie slice).

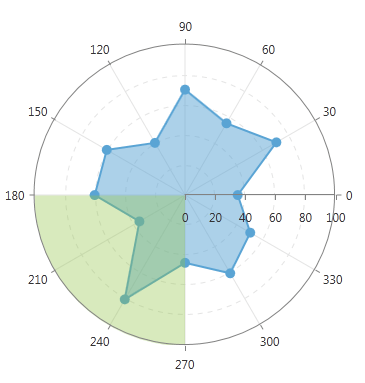

A plotband starting from 180 degrees and ending in 270 degrees will look like this:

XAML

	<telerik:RadialAxisPlotBandAnnotation From="270" To="180" />

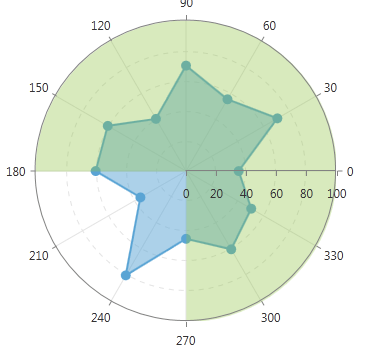

If you wonder how to annotate the bigger segment from the image above, then you should switch the From and To values.

XAML

	<telerik:RadialAxisPlotBandAnnotation From="270" To="180" />

Properties

Common:

• Fill

• DashArray

• Stroke

• StrokeThickness

Cartesian:

• Axis The Cartesian PlotBand annotation needs to be associated with horizontal or vertical axis explicitly.

• From (of type object) The starting point for the plot band. When the associated axis is numerical (Linear or Logarithmic) a numeric value is expected and when it is a CategoricalAxis - a category.

• To (of type object) The ending point for the plot band.*When the associated axis is numerical (Linear or Logarithmic) a numeric value is expected and when it is a CategoricalAxis - a category.

• Label The string, defining the label.

• LabelDefinition Defines the position of the annotation label, check the Annotation Labels help topic for more details.

Polar:

• From (of type double) The starting point for the plot band. To (of type double) The ending point for the plot band.

Radial:

• From (of type object) The starting point for the plot band. When the radial axis is NumericRadialAxis a numeric value is expected and when it is a CategoricalRadialAxis - a category.

• To (of type object) The ending point for the plot band. When the radial axis is NumericRadialAxis a numeric value is expected and when it is a CategoricalRadialAxis - a category.
