Windows 10 like Navigation Bar with RadPageView

Updated over 6 months ago

Product Version	Product	Author	Last modified
Q2 2015	RadPageView for WinForms	Dimitar Karamfilov	August 11, 2015

The following example aims to mimic the navigation provided by the Movies & TV app in Windows 10 by using RadPageView in Backstage view mode. In this example, the tabs are positioned on the left part of the control and when the expand/collapse item is clicked the menu will expand/collapse. When the menu is expanded the items will have text when it is collapsed only icons will be displayed. The example also shows how you can create search tab item. When the search item is clicked the menu will expand and a text box will be displayed. You can see the final result in figure 1.

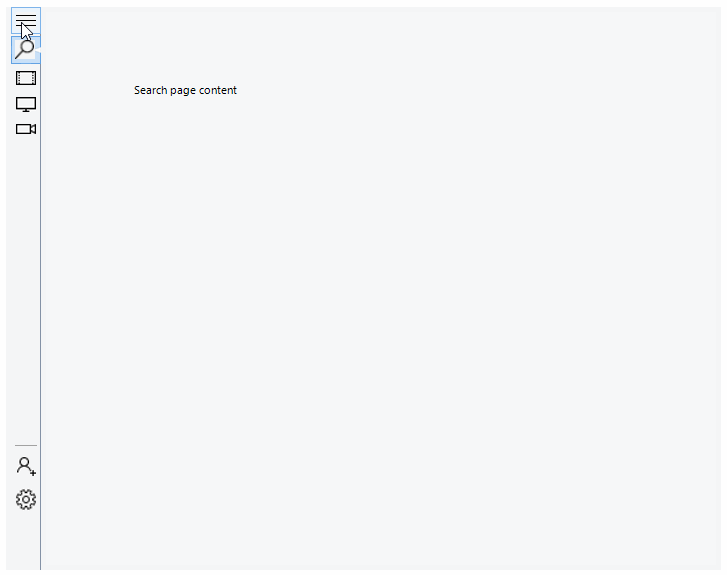

Figure 1. Navigation bar with RadPageView in Backstage view mode.

This functionality is achieved by setting the ItemContainer size when the details or search item is clicked and also modifying the items appearance:

C#

private void Toggle()
{
    RadPageViewBackstageElement backstage = (RadPageViewBackstageElement)radPageView1.ViewElement;
    bool expanded = backstage.ItemContainer.MinSize.Width > 36;

    int width = expanded ? 36 : 200;
    backstage.ItemContainer.MinSize = new Size(width, 0);
    backstage.ItemContainer.MaxSize = new Size(width, 0);
    searchPage.Item.DrawImage = expanded;
    textBox.Visibility = expanded ? ElementVisibility.Hidden : ElementVisibility.Visible;

    foreach (RadPageViewPage page in radPageView1.Pages)
    {
        page.Item.DrawText = !expanded;
    }
}

VB.NET

Private Sub Toggle()
    Dim backstage As RadPageViewBackstageElement = CType(radPageView1.ViewElement, RadPageViewBackstageElement)
    Dim expanded As Boolean = backstage.ItemContainer.MinSize.Width > 36

    Dim menu_width As Integer = If(expanded, 36, 200)
    backstage.ItemContainer.MinSize = New Size(menu_width, 0)
    backstage.ItemContainer.MaxSize = New Size(menu_width, 0)
    searchPage.Item.DrawImage = expanded
    textBox.Visibility = If(expanded, ElementVisibility.Hidden, ElementVisibility.Visible)

    For Each page As RadPageViewPage In radPageView1.Pages
        page.Item.DrawText = Not expanded
    Next page
End Sub

The complete example can be downloaded by clicking the following link.
