How to set ScreenTip to show, currently hovered PivotGroupElement, in which RowGroupDescription is located

Updated over 6 months ago

Environment

Product Version	Product	Author
2022.2.622	RadPivotGrid for WinForms	Dinko Krastev

Description

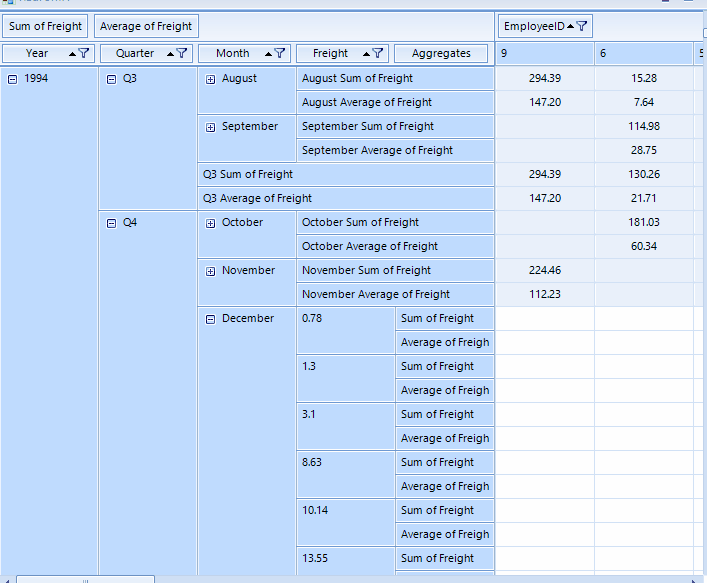

An example demonstrating how to check the current mouse-hovered PivotGroupElement, in which RowGroupDescription is located.

Solution

We can subscribe to the ScreenTipNeeded event of the RadPivotGrid control. In the event handler, we can get the currently hovered item. If it is of type PivotGroupElement, we can check if the Data.Axis property is Rows and uses the Data.Group.Level property to extract the corresponding RowGroupDescription from the RowGroupDescriptions collection of the RadPivotGrid.

Sample Implementation

C#

	private void Pivot_ScreenTipNeeded(object sender, Telerik.WinControls.ScreenTipNeededEventArgs e)
	{
		PivotGroupElement cellGroup = e.Item as PivotGroupElement;
		if (cellGroup != null)
		{
			RadOffice2007ScreenTipElement screenTipGroupCell = new RadOffice2007ScreenTipElement();
			screenTipGroupCell.CaptionLabel.Text = "";

			if (cellGroup.Data.Axis == PivotAxis.Rows & this.RadPivotGrid1.RowGroupDescriptions.Count - 1 >= cellGroup.Data.Group.Level)
			{
				var rowGroupDescriptor = this.RadPivotGrid1.RowGroupDescriptions[cellGroup.Data.Group.Level];
				screenTipGroupCell.MainTextLabel.Text = rowGroupDescriptor.DisplayName;
				screenTipGroupCell.FooterTextLabel.Text = "";
				cellGroup.ScreenTip = screenTipGroupCell;
			}
		}
	}



VB.NET

	Private Sub Pivot_ScreenTipNeeded(sender As Object, e As Telerik.WinControls.ScreenTipNeededEventArgs)
		Dim cellGroup As PivotGroupElement = TryCast(e.Item, PivotGroupElement)
		If cellGroup IsNot Nothing Then
			Dim screenTipGroupCell As RadOffice2007ScreenTipElement = New RadOffice2007ScreenTipElement()
			screenTipGroupCell.CaptionLabel.Text = ""

			If cellGroup.Data.Axis = PivotAxis.Rows And Me.RadPivotGrid1.RowGroupDescriptions.Count - 1 >= cellGroup.Data.Group.Level Then
				Dim rowGroupDescriptor = Me.RadPivotGrid1.RowGroupDescriptions(cellGroup.Data.Group.Level)
				screenTipGroupCell.MainTextLabel.Text = rowGroupDescriptor.DisplayName
				screenTipGroupCell.FooterTextLabel.Text = ""
				cellGroup.ScreenTip = screenTipGroupCell
			End If
		End If
	End Sub
