How to Achieve Background Image in RadDiagram that Supports Pan Functionality

Updated over 6 months ago

Environment

Product Version	Product	Author
2021.1.0119	RadDiagram for WinForms	Desislava Yordanova

Description

A common requirement is to have a background image for RadDiagram. The easiest way to achieve this is by setting the DiagramElement.BackgroundImage property.

However, in this case the image will be shown but the pan and zoom operation will not apply to the background.

Solution

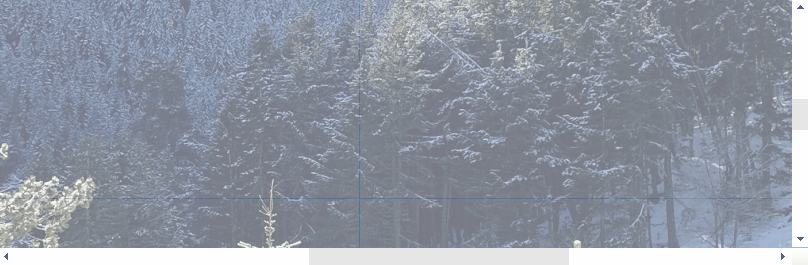

If you want to pan and zoom the custom background image, the possible solution is to use a big enough RadDiagramShape and apply the image to it. Thus, the pan and zoom operations will come out of the box. Please refer to the following code snippet which result is demonstrated in the attached gif file.

C#

public RadForm1()
{
    InitializeComponent();

    this.radDiagram1.DiagramElement.IsBackgroundSurfaceVisible = false;
    RadDiagramShape _Background = new RadDiagramShape()
    {
        Name = "Image"
    };
    _Background.IsConnectorsManipulationEnabled = false;
    _Background.IsRotationEnabled = false;
    _Background.IsResizingEnabled = false;
    _Background.IsDraggingEnabled = false;
    _Background.CaptureOnMouseDown = false;
    _Background.IsEnabled = false;
    _Background.IsFocusable = false;
    _Background.IsHitTestVisible = false;
    _Background.ShouldHandleMouseInput = false;
    _Background.Shape = new Telerik.WinControls.RoundRectShape(0);
    Image bg = Image.FromFile(@"..\..\IMG_4882.JPG");
    _Background.DiagramShapeElement.Image = bg;
    _Background.Width = bg.Width;
    _Background.Height = bg.Height;
    _Background.DiagramShapeElement.ImageOpacity = 0.5;


    _Background.ShouldHandleMouseInput = false;
    _Background.NotifyParentOnMouseInput = false;

    this.radDiagram1.AddShape(_Background);

    Telerik.Windows.Diagrams.Core.ToolService toolService =
        this.radDiagram1.ServiceLocator.GetService<Telerik.Windows.Diagrams.Core.IToolService>()
        as Telerik.Windows.Diagrams.Core.ToolService;

    if (toolService != null)
        toolService.ToolList[0] = new CustomPanningTool();
    this.radDiagram1.ActiveTool = Telerik.Windows.Diagrams.Core.MouseTool.PanTool;
}
public class CustomPanningTool : Telerik.Windows.Diagrams.Core.PanningTool
{
    public override bool MouseMove(Telerik.Windows.Diagrams.Core.PointerArgs e)
    {
        if (this.IsActive)
        {
            if (this.HitItem != null && this.HitItem.Name == "Image")
                this.HitItem = null;
        }

        return base.MouseMove(e);
    }
}


VB.NET

Sub New()
    InitializeComponent()

    RadDiagram1.DiagramElement.IsBackgroundSurfaceVisible = False
    Dim _Background As RadDiagramShape = New RadDiagramShape() With {
        .Name = "Image"
    }
    _Background.IsConnectorsManipulationEnabled = False
    _Background.IsRotationEnabled = False
    _Background.IsResizingEnabled = False
    _Background.IsDraggingEnabled = False
    _Background.CaptureOnMouseDown = False
    _Background.IsEnabled = False
    _Background.IsFocusable = False
    _Background.IsHitTestVisible = False
    _Background.ShouldHandleMouseInput = False
    _Background.Shape = New Telerik.WinControls.RoundRectShape(0)
    Dim bg As Image = Image.FromFile("..\..\IMG_4882.JPG")
    _Background.DiagramShapeElement.Image = bg
    _Background.Width = bg.Width
    _Background.Height = bg.Height
    _Background.DiagramShapeElement.ImageOpacity = 0.5


    _Background.ShouldHandleMouseInput = False
    _Background.NotifyParentOnMouseInput = False

    RadDiagram1.AddShape(_Background)

    Dim toolService As Telerik.Windows.Diagrams.Core.ToolService =
        TryCast(Me.RadDiagram1.ServiceLocator.GetService(Of Telerik.Windows.Diagrams.Core.IToolService)(),
        Telerik.Windows.Diagrams.Core.ToolService)

    If toolService IsNot Nothing Then
        toolService.ToolList(0) = New CustomPanningTool()
    End If
    Me.RadDiagram1.ActiveTool = Telerik.Windows.Diagrams.Core.MouseTool.PanTool
End Sub

Public Class CustomPanningTool
    Inherits Telerik.Windows.Diagrams.Core.PanningTool

    Public Overrides Function MouseMove(ByVal e As Telerik.Windows.Diagrams.Core.PointerArgs) As Boolean
        If Me.IsActive Then

            If Me.HitItem IsNot Nothing AndAlso Me.HitItem.Name = "Image" Then
                Me.HitItem = Nothing
            End If
        End If

        Return MyBase.MouseMove(e)
    End Function
End Class
