Formatting Data Cells

Updated over 6 months ago

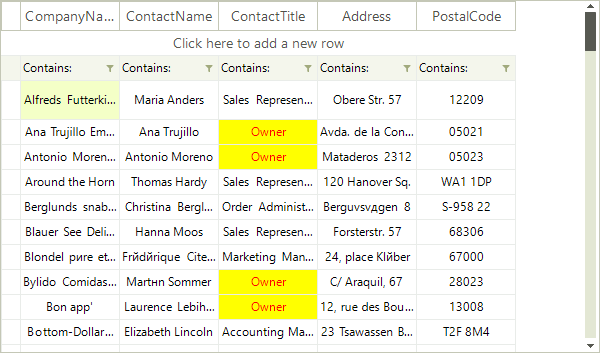

The CellFormatting event is used to add formatting to grid cells. For example, the code sample below changes the ForeColor, BackColor and GradientStyle in all data cells in the ContactTitle column if the cell value is Owner:

C#


private void radVirtualGrid1_CellFormatting(object sender, VirtualGridCellElementEventArgs e)
{
    if (e.CellElement.RowIndex > -1)
    {
        if (e.CellElement.ColumnIndex == 3 && e.CellElement.Value != null && e.CellElement.Value.ToString() == "Owner")
        {
            e.CellElement.DrawFill = true;
            e.CellElement.BackColor = Color.Yellow;
            e.CellElement.GradientStyle = Telerik.WinControls.GradientStyles.Solid;
            e.CellElement.ForeColor = Color.Red;
        }
        else
        {
            e.CellElement.ResetValue(LightVisualElement.DrawFillProperty, ValueResetFlags.Local);
            e.CellElement.ResetValue(LightVisualElement.BackColorProperty, ValueResetFlags.Local);
            e.CellElement.ResetValue(LightVisualElement.GradientStyleProperty, ValueResetFlags.Local);
            e.CellElement.ResetValue(LightVisualElement.ForeColorProperty, ValueResetFlags.Local);
        }
    }
}

VB.NET

Private Sub radVirtualGrid1_CellFormatting(sender As Object, e As VirtualGridCellElementEventArgs)
    If e.CellElement.RowIndex > -1 Then
        If e.CellElement.ColumnIndex = 3 AndAlso e.CellElement.Value IsNot Nothing _
        AndAlso e.CellElement.Value.ToString() = "Owner" Then
            e.CellElement.DrawFill = True
            e.CellElement.BackColor = Color.Yellow
            e.CellElement.GradientStyle = Telerik.WinControls.GradientStyles.Solid
            e.CellElement.ForeColor = Color.Red
        Else
            e.CellElement.ResetValue(LightVisualElement.DrawFillProperty, ValueResetFlags.Local)
            e.CellElement.ResetValue(LightVisualElement.BackColorProperty, ValueResetFlags.Local)
            e.CellElement.ResetValue(LightVisualElement.GradientStyleProperty, ValueResetFlags.Local)
            e.CellElement.ResetValue(LightVisualElement.ForeColorProperty, ValueResetFlags.Local)
        End If
    End If
End Sub

Due to the UI virtualization in RadVirtualGrid, cell elements are created only for currently visible cells and are being reused during operations like scrolling, filtering, sorting and so on. In order to prevent applying the formatting to other columns' cell elements (because of the cell reuse) all customization should be reset for the rest of the cell elements.
