Structure

Updated over 6 months ago

This article describes the inner structure and organization of the elements which build the RadApplicationMenu control.

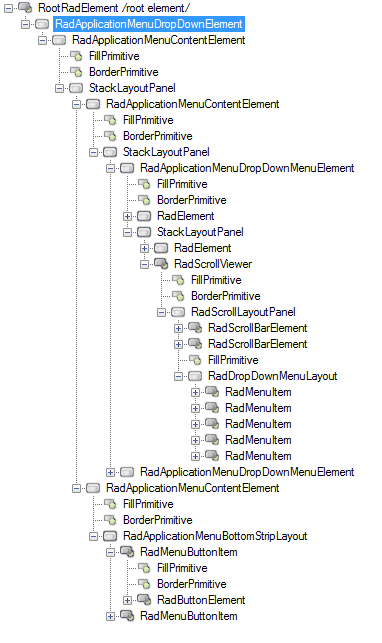

Figure 1: RadApplicationMenu's Elements Hierarchy

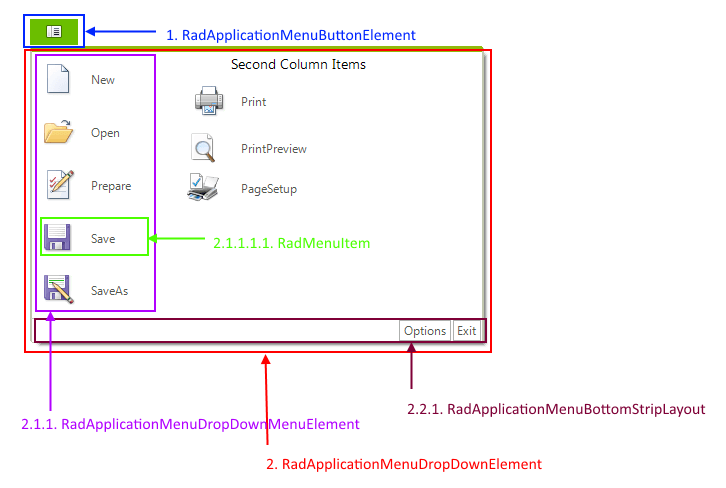

Figure 2: RadApplicationMenu visual structure

1. RadApplicationMenuButtonElement: represents the application menu button element

1.1. DropDownEditorLayoutPanel
1.1.1. RadArrowButtonElement: represents the arrow button
1.1.2. ActionButtonElement: represents the button element

1. RadApplicationMenuDropDownElement: represents the drop down
   2.1. RadApplicationMenuContentElement
   2.1.1. RadApplicationMenuDropDownMenuElement: represents the drop down menu content menu element (left and right column)
   2.1.1.1. RadDropDownMenuLayout
   2.1.1.1.1. RadMenuItem: represents a menu item
   2.2. RadApplicationMenuContentElement :
   2.2.1. RadApplicationMenuBottomStripLayout: represents the container that holds bottom button items
   2.2.1.1. RadMenuButtonItem: represents the menu button item.
