Structure

Updated on Aug 27, 2026

This article describes the inner structure and organization of the elements which build the RadBulletGraph control.

There are two main types of bullet graphs - horizontal and vertical, depending on the direction in which the control is drawn.

Figure 1: RadBulletGraph`s Element Hierarchy

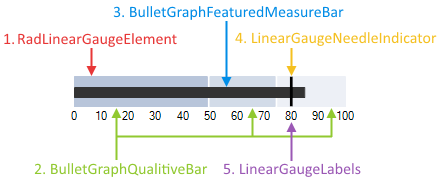

Figure 2: RadBulletGraph`s Structure

1. RadLinearGaugeElement: Represents the main element of RadBulletGraph.
2. BulletGraphQualitiveBar: Each of the bars building RadBulletGraph.
3. BulletGraphFeaturedMeasureBar: Bar representing the measure.
4. LinearGaugeNeedleIndicator: Needle indicator.
5. LinearGaugeLabels: Labels along the bullet graph.
