Creating Custom PieChart Palettes

Environment

VersionProductAuthor
10.0.0PieChart for .NET MAUIDobrinka Yordanova

Description

I want to change the default colors of the PieChart for donut or pie series.

This knowledge base article also answers the following questions:

  • How can I use custom colors in the Telerik UI for .NET MAUI PieChart?
  • How can I change the color on the Telerik DonutSeries or PieSeries?

Solution

The PieChart supports the following default set of colors for displaying its data points:

  • #0078D4
  • #EA005E
  • #60CCFE
  • #0093F9
  • #00B7C3
  • #FFB900
  • #C239B3
  • #6B69D6

To modify the default built-in colors, implement a custom palette, as demonstrated in the following scenario:

1. Create a sample DataModel:

c#
public class CategoricalData
{
    public object Category { get; set; }
    public double Value { get; set; }
}

2. Define the ViewModel class:

C#
public class ViewModel
{
	public ObservableCollection<CategoricalData> Data { get; set; }

	public ViewModel()
	{
		this.Data = GetCategoricalData();
	}

	private static ObservableCollection<CategoricalData> GetCategoricalData()
	{
		var data = new ObservableCollection<CategoricalData>
		{
			new CategoricalData { Category = "Greenings", Value = 52 },
			new CategoricalData { Category = "Perfecto", Value = 19 },
			new CategoricalData { Category = "NearBy", Value = 82 },
			new CategoricalData { Category = "Family", Value = 23 },
			new CategoricalData { Category = "Fresh", Value = 56 },
		};
		return data;
	}
}

3. Define the RadPieChart with DonutSeries in XAML:

XAML
<telerik:RadPieChart HeightRequest="400" WidthRequest="300">
	<telerik:RadPieChart.BindingContext>
		<local:ViewModel />
	</telerik:RadPieChart.BindingContext>
	<telerik:RadPieChart.Palette>
		<telerik:ChartPalette>
			<telerik:ChartPalette.Entries>
				<telerik:PaletteEntry FillColor="#4FB6E7" StrokeColor="#4FB6E7" />
				<telerik:PaletteEntry FillColor="#A666CE" StrokeColor="#A666CE" />
				<telerik:PaletteEntry FillColor="#9DCC00" StrokeColor="#9DCC00" />
			</telerik:ChartPalette.Entries>
		</telerik:ChartPalette>
	</telerik:RadPieChart.Palette>
	<telerik:RadPieChart.SelectionPalette>
		<telerik:ChartPalette>
			<telerik:ChartPalette.Entries>
				<telerik:PaletteEntry FillColor="#4FB6E7" StrokeColor="#4D4D4D" />
				<telerik:PaletteEntry FillColor="#A666CE" StrokeColor="#4D4D4D" />
				<telerik:PaletteEntry FillColor="#9DCC00" StrokeColor="#4D4D4D" />
			</telerik:ChartPalette.Entries>
		</telerik:ChartPalette>
	</telerik:RadPieChart.SelectionPalette>
	<telerik:RadPieChart.Series>
		<telerik:DonutSeries ShowLabels="True"
                    InnerRadiusFactor="0.4"
                    ValueBinding="Value"
                    ItemsSource="{Binding Data}" />
	</telerik:RadPieChart.Series>
	<telerik:RadPieChart.ChartBehaviors>
		<telerik:ChartSelectionBehavior DataPointSelectionMode="Single"  />
	</telerik:RadPieChart.ChartBehaviors>
</telerik:RadPieChart>

4. Add the telerik namespace:

XAML
xmlns:telerik="http://schemas.telerik.com/2022/xaml/maui"

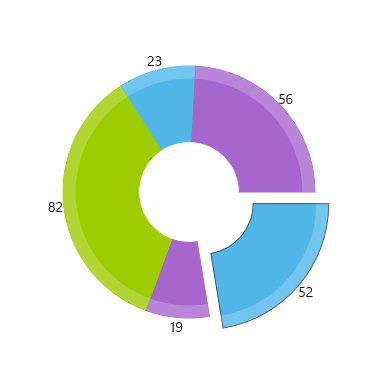

The following image shows the end result of the suggested implementation.

Telerik UI for .NET MAUI PieChart with Custom Colors for Donut Series
