.NET MAUI ToolbarItem Overview

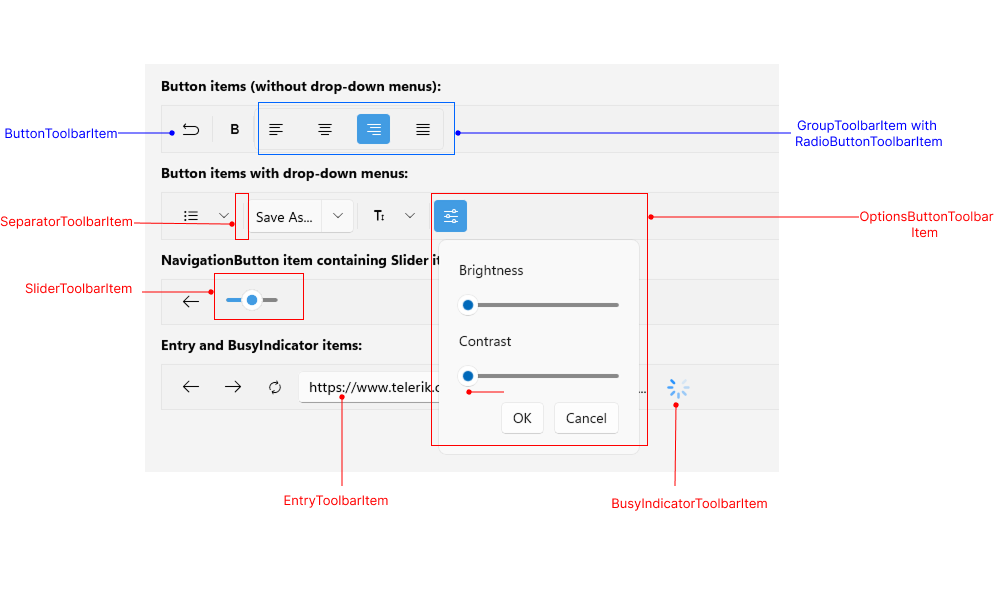

The Telerik .NET MAUI Toolbar provides built-in toolbar items. The available items are described in the table below:

Toolbar Item	Description
ToolbarItem	Represents a toolbar item in the Toolbar control. All toolbar items listed below inherits from ToolbarItem
EntryToolbarItem	Represents an entry toolbar item in the Toolbar control.
ButtonToolbarItem	Represents a button in the Toolbar control.
DropDownButtonToolbarItem	Represents a button displaying a drop-down panel in the Toolbar control.
DropDownMenuButtonToolbarItem	Represents a button displaying a drop-down menu in the Toolbar control.
ToggleButtonToolbarItem	Represents a toggle button in the Toolbar control.
RadioButtonToolbarItem	Represents a radio button in the Toolbar control.
NavigationButtonToolbarItem	Represents a navigation button in the Toolbar control.
SplitButtonToolbarItem	Represents a split button in the Toolbar control. Works as an advanced drop-down menu.
OptionsButtonToolbarItem	Represents a button displaying an options panel in the RadToolbar control.
SliderToolbarItem	Represents a slider in the Toolbar control
ListPickerButtonToolbarItem	Represents a list picker button in the Toolbar control.
LabelToolbarItem	Represents a label in the Toolbar control. The label can display a text and optionally an image next to it.
BusyIndicatorToolbarItem	Represents a busy indicator in the Toolbar control.
SeparatorToolbarItem	Represents a separator(which is an UI element) in the Toolbar control.
GroupToolbarItem	Organize toolbar items in a group.

In addition, you can define an option panel in the toolbar using the RadToolbarOptionsPanel.

Common properties for configuration

All toolbar items inherits from ToolbarItem. The available properties ToolbarItem provides are:

• IsVisible(bool)—Specifies whether the toolbar item is visible.
• IsEnabled(bool)—Specifies whether the toolbar item is enabled.
• Style(Style)—Specifies the style applied to the toolbar item. Each toolbar item has a corresponding ToolbarItemView. And this is the target type of the Style.

For example the target type for ButtonToolbarItem Style is ButtonToolbarItemView.

• ControlTemplate(Microsoft.Maui.Controls.ControlTemplate)—Specifies the template applied to the toolbar item. Each toolbar item has a corresponding ToolbarItemView. And this is the target type of the ControlTemplate.

• PlacementOptions(enum of type Telerik.Maui.Controls.ToolbarItemPlacementOptions)—Defines the allowed placement options of the toolbar item in the toolbar. This type supports a bitwise combination of its members to enable more than one option. The available options are:

  • ToolStrip—The toolbar item appears in the main tool strip area of the toolbar.
  • DropDown—The toolbar item appears in the overflow drop-down menu of the toolbar.

Styling

Style the toolbar items using the Style(Style) property. Each toolbar item has a corresponding ToolbarItemView and this is the target type of the Style property.

Toolbar Item	Style Target Type
ToolbarItem	ToolbarItemView
EntryToolbarItem	entryToolbarItemView
ButtonToolbarItem	ButtonToolbarItemView
DropDownButtonToolbarItem	DropDownButtonToolbarItemView
DropDownMenuButtonToolbarItem	DropDownMenuButtonToolbarItemView
ToggleButtonToolbarItem	ToggleButtonToolbarItemView
RadioButtonToolbarItem	RadioButtonToolbarItemView
NavigationButtonToolbarItem	NavigationButtonToolbarItemView
SplitButtonToolbarItem	SplitButtonToolbarItemView
OptionsButtonToolbarItem	OptionsButtonToolbarItemView
SliderToolbarItem	SliderToolbarItemView
ListPickerButtonToolbarItem	ToolbarListItemView
LabelToolbarItem	LabelToolbarItemView
BusyIndicatorToolbarItem	BusyIndicatorToolbarItemView
SeparatorToolbarItem	SeparatorToolbarItemView
GroupToolbarItem	GroupToolbarItemView

Common properties that can be applied to the Style of each toolbar item are:

• Orientation(enum of type Telerik.Maui.Controls.ToolbarOrientation)—Specifies the orientation of the toolbar item in the toolbar. The available options are:

  • Horizontal
  • Vertical

• PlacementLocation(enum of type Telerik.Maui.Controls.ToolbarItemPlacementOptions)—Specifies the placement location of the toolbar item in the toolbar. This type supports a bitwise combination of its members to enable more than one option. The available options are:

  • ToolStrip—The toolbar item appears in the main tool strip area of the toolbar.
  • DropDown—The toolbar item appears in the overflow drop-down menu of the toolbar.

• ControlTemplate(Microsoft.Maui.Controls.ControlTemplate)—Specifies the control template of the toolbar item.

• BackgroundColor(Microsoft.Maui.Graphics.Color)—Specifies the background color of the toolbar item.

• BorderColor(Microsoft.Maui.Graphics.Color)—Specifies the border color of the toolbar item.

• BorderThickness(Microsoft.Maui.Thickness)—Specifies the border thickness of the toolbar item.

• CornerRadius(Microsoft.Maui.Thickness)—Specifies the corner radius of the toolbar item.

• ContentPadding(Microsoft.Maui.Thickness)—Specifies the content padding of the control.
