.NET MAUI TemplatedPicker DropDown Styling

By using the DropDownSettings property (of type Telerik.Maui.Controls.PickerDropDownSettings) of the TemplatedPicker, you can modify the appearance of the dropdown. The PickerDropDownSettings class exposes the following Style properties:

• DropDownViewStyle(of type Style with target type telerikInput:PickerDropDownContentView)—Defines the dropdown view style.
• FooterStyle(of type Style with target type telerikInput:PickerPopupFooterView)—Defines the dropdown footer style.
• AcceptButtonStyle(of type Style with target type Button)—Defines the Accept button style.
• CancelButtonStyle(of type Style with target type Button)—Defines the Cancel button style.

The DropDownSettings also provides the following properties for dropdown customization:

• Placement(of type PlacementMode)—Specifies the position of the dropdown, can be set to Bottom, Right, Left, Top, Center or Relative.
• HorizontalOffset \ VerticalOffset—Specifies the horizontal\vertical distance between the dropdown and the TemplatedPicker.
• IsFooterVisible(bool)—Specifies whether the DropDown footer is currently visible. By default, the value is True.
• AcceptButtonText(string)—Defines the text visualized for the Accept button. By default, the text is OK.
• CancelButtonText(string)—Defines the text visualized for the Cancel button. By default, the text is Cancel.

Example

The following example shows how the styling properties are applied.

Define the RadTemplatedPicker

xaml

<telerik:RadTemplatedPicker x:Name="picker"
                            PickerMode="DropDown"
                            Placeholder="Pick a destination!"
                            DisplayStringFormat="Destination: {0}"
                            SelectedValue="{Binding FromCity, Mode=TwoWay}"
                            DisplayMemberPath="Name"
                            AutomationId="templatedPicker">
    <telerik:RadTemplatedPicker.DropDownSettings>
        <telerik:PickerDropDownSettings DropDownViewStyle="{StaticResource dropDownViewStyle}"
                                        AcceptButtonStyle="{StaticResource pickerAcceptButtonStyle}"
                                        CancelButtonStyle="{StaticResource pickerCancelButtonStyle}"
                                        AcceptButtonText="{StaticResource acceptButtonText}"
                                        CancelButtonText="{StaticResource cancelButtonText}" />
    </telerik:RadTemplatedPicker.DropDownSettings>
    <telerik:RadTemplatedPicker.SelectorTemplate>
        <ControlTemplate>
            <Grid ColumnDefinitions="*,*" HeightRequest="250">
                <Grid.Style>
                    <OnPlatform x:TypeArguments="Style">
                        <On Platform="WinUI">
                            <Style TargetType="Grid">
                                <Setter Property="WidthRequest" Value="{Binding Width, Source={x:Reference picker}}" />
                            </Style>
                        </On>
                    </OnPlatform>
                </Grid.Style>
                <telerik:RadBorder Grid.ColumnSpan="2"
                                   Style="{StaticResource defaultRadBorderStyle}" />
                <telerik:RadSpinner x:Name="countriesSpinner"
                                    Grid.Column="0"
                                    ItemsSource="{Binding Countries}"
                                    DisplayMemberPath="Name" />
                <telerik:RadSpinner x:Name="citiesSpinner"
                                    Grid.Column="1"
                                    ItemsSource="{Binding SelectedItem.Cities, Source={x:Reference countriesSpinner}}"
                                    SelectedItem="{TemplateBinding SelectedValue}"
                                    DisplayMemberPath="Name" />
            </Grid>
        </ControlTemplate>
    </telerik:RadTemplatedPicker.SelectorTemplate>
</telerik:RadTemplatedPicker>

Define the DropDownViewStyle

xaml

<Style x:Key="dropDownViewStyle" TargetType="telerik:PickerDropDownContentView">
    <Setter Property="BackgroundColor" Value="#E4FCFF"/>
</Style>

Define the CommonButtonStyle

xaml

<Style x:Key="pickerFooterButtonStyle" TargetType="Button">
    <Setter Property="BackgroundColor" Value="Transparent"/>
    <Setter Property="TextColor" Value="{StaticResource AccentColor}"/>
    <Setter Property="VerticalOptions" Value="Center"/>
    <Setter Property="Margin">
        <OnPlatform x:TypeArguments="Thickness">
            <On Platform="iOS, MacCatalyst">0, 0, 20, 0</On>
        </OnPlatform>
    </Setter>
</Style>

Define the AcceptButtonStyle

xaml

<Style x:Key="pickerAcceptButtonStyle" BasedOn="{StaticResource pickerFooterButtonStyle}"
       TargetType="Button">
    <Setter Property="HorizontalOptions" Value="End"/>
</Style>

Define the CancelButtonStyle

xaml

<Style x:Key="pickerCancelButtonStyle" BasedOn="{StaticResource pickerFooterButtonStyle}"
       TargetType="Button">
    <Setter Property="HorizontalOptions" Value="EndAndExpand"/>
</Style>

Namespaces

In addition, add the following namespace:

XAML

xmlns:telerik="http://schemas.telerik.com/2022/xaml/maui"

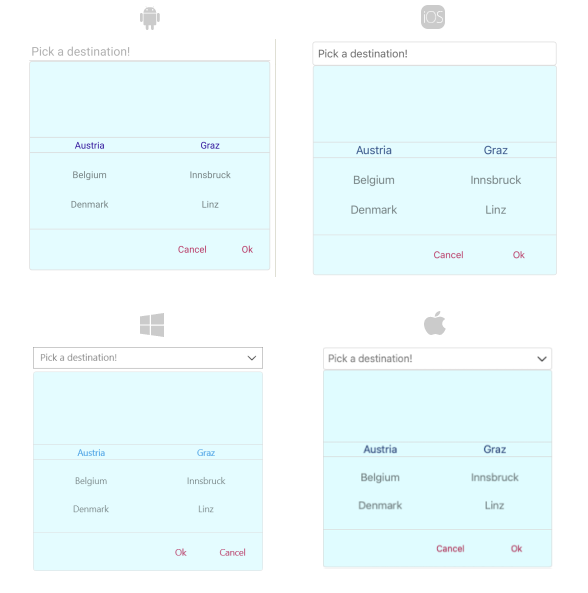

The following image shows how the TemplatedPicker control looks when the styles described above are applied.
