.NET MAUI Track Styling

The Slider for .NET MAUI provides the following styling options for the backtrack (the track the thumb slides along):

• BackTrackThickness(double)—Specifies the thickness of the Slider's backtrack.
• BackTrackColor(Color)—Defines the color of the Slider's backtrack.
• BackTrackStyle(Style)—Defines a custom style for the Slider's backtrack.

The Slider for .NET MAUI provides the following styling options for the range track (the track between OriginValue and Value):

• RangeTrackFill(Color)—Defines the fill color for the Slider's range track.
• RangeTrackStyle(Style)—Defines a custom style for the Slider's range track.

The following example demonstrates how to use the described styling properties to style the Slider's backtrack and range track:

1. Add a custom style with TargetType set to RadBorder to the page's resources:

xaml

<Style x:Key="CustomBackTrackStyle" TargetType="telerik:RadBorder">
    <Setter Property="BorderColor" Value="#B2DFDB" />
    <Setter Property="BorderThickness" Value="1" />
    <Setter Property="CornerRadius" Value="4" />
    <Setter Property="HeightRequest" Value="8" />
</Style>

2. Add a custom style with TargetType set to SliderRangeTrack to the page's resources:

xaml

<Style x:Key="CustomRangeTrackStyle" TargetType="telerik:SliderRangeTrack">
    <Setter Property="Stroke" Value="#00897B" />
    <Setter Property="StrokeThickness" Value="1" />
    <Setter Property="TrackThickness" Value="8" />
</Style>

3. Apply the custom styles to the Slider:

xaml

<telerik:RadSlider Minimum="0"
                   Maximum="100"
                   Value="35"
                   BackTrackColor="#80CBC4"
                   BackTrackStyle="{StaticResource CustomBackTrackStyle}"
                   RangeTrackFill="#009688"
                   RangeTrackStyle="{StaticResource CustomRangeTrackStyle}" />

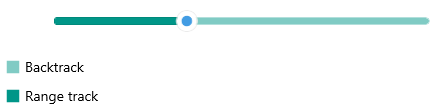

Check the result below:
