Special Slots

The Telerik UI for .NET MAUI Scheduler control exposes an option to define the special and read-only slots and apply different styles to them. You need to prepare a collection of Slot objects and assign it to the SpecialSlotsSource property of the corresponding view definition.

Every Slot has the following properties:

Start(DateTime)—Defines the start date of the slot.
End(DateTime)—Defines the end date of the slot.
ReccurencePattern(RecurrencePattern)—Defines whether the slot will be displayed for repeating days.
IsReadOnly(bool)—When set to True the slot is disabled.
TimeZone(TimeZoneInfo)—Specifies the slot time zone.

Below you can find a quick example how to create special slots.

1. First, create a ViewModel class with a collection of Slot objects. In the example two repeating slots are added for rest hours during weekdays.

public class ViewModel
{
    public ViewModel()
    {
        this.RestHours = new ObservableCollection<Slot>();

        var today = DateTime.Today;
        var dailyRecurrence = new RecurrencePattern()
        {
            DaysOfWeekMask = RecurrenceDays.WeekDays,
            Frequency = RecurrenceFrequency.Weekly,
            MaxOccurrences = 30
        };

        this.RestHours.Add(new Slot(today.AddHours(12), today.AddHours(13))
        {
            RecurrencePattern = dailyRecurrence,
            IsReadOnly = true
        });

        this.RestHours.Add(new Slot(today.AddHours(16), today.AddHours(16).AddMinutes(15))
        {
            RecurrencePattern = dailyRecurrence
        });
    }

    public ObservableCollection<Slot> RestHours { get; set; }
}

2. Then, add RadScheduler definition with some sample views with SpecialSource property applied:

xaml

<telerik:RadScheduler x:Name="scheduler">
    <telerik:RadScheduler.ViewDefinitions>
        <telerik:DayViewDefinition SpecialSlotsSource="{Binding RestHours}" />
        <telerik:MultidayViewDefinition VisibleDays="3" Title="3 Day" SpecialSlotsSource="{Binding RestHours}" />
    </telerik:RadScheduler.ViewDefinitions>
</telerik:RadScheduler>

3. Last step is to set the BindingContext to the ViewModel class:

this.BindingContext = new ViewModel();

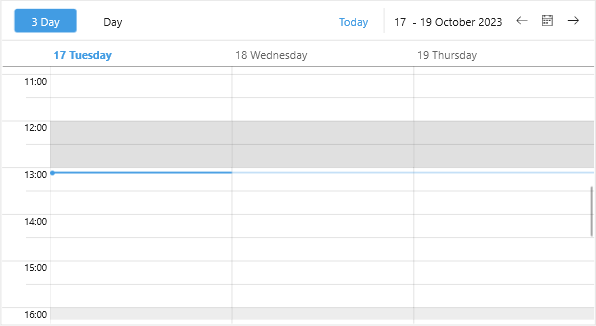

Check in the image below how the special slots look in MultiDay View:

Telerik .NET MAUI Scheduler Special Slots

Special Slots
