Y axis 100% cramps values

[Steve]

Hi, when charting values up to 100% we initally had the Y axis going up to 120%.
Once this was resolved we had a Y with 100%, however the data being plotted is often at or around 100% and so the labels on both our column and line graphs are being cut off (because there is no room above the plot for the "100%" or the "99.95%" to be displayed.

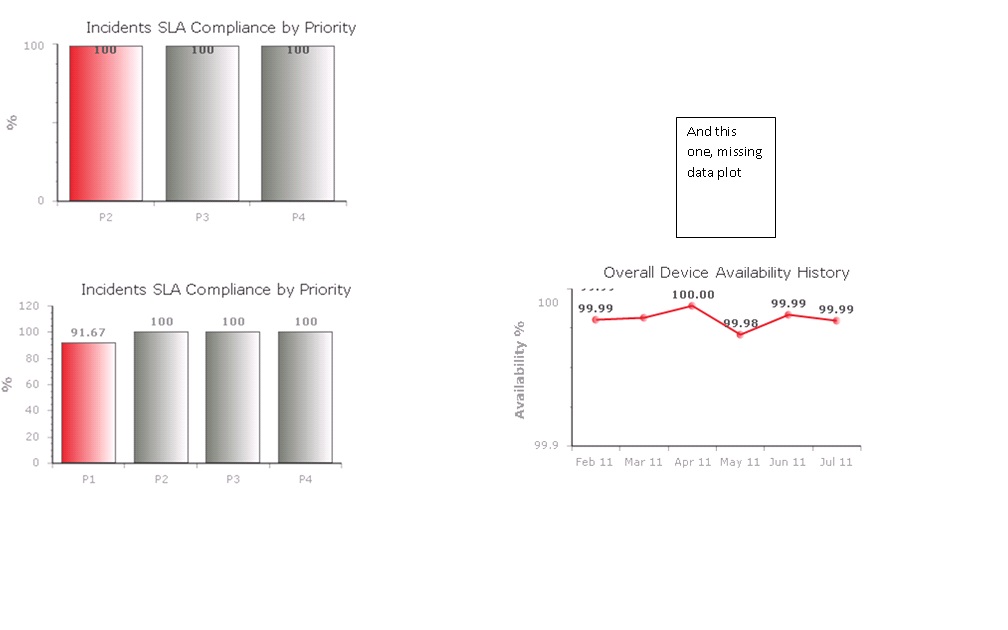

image attached

[Steve]

Hi Steve,

This is probably caused by making the label bold. Anyway you can correct this by:

• changing the label location to inside and change the AlignedPosition of the label as well e.g.


  chartSeries1.Appearance.LabelAppearance.LabelLocation = Telerik.Reporting.Charting.Styles.StyleSeriesItemLabel.ItemLabelLocation.Inside;
  chartSeries1.Appearance.LabelAppearance.Position.AlignedPosition = Telerik.Reporting.Charting.Styles.AlignedPositions.Center;
  chartSeries1.Appearance.LabelAppearance.Position.Auto = false;

• changing the label location to inside and applying padding to the label to fix it to a specific position:


  chartSeries1.Appearance.LabelAppearance.LabelLocation = Telerik.Reporting.Charting.Styles.StyleSeriesItemLabel.ItemLabelLocation.Inside;
  chartSeries1.Appearance.LabelAppearance.Dimensions.Paddings = new Unit(10, UnitType.Pixel);

Kind regards,
Steve
the Telerik team
