X Value must be null or empty

[Yonggu Kang]

Hi telerik,



I've a report view which contains Graph and has been used for a few years since 2015 without problem,

however I encountered an error after upgrading to 2017 R3 saying "lineSeries1 : X value must be null or empty when using Category Style".

I searched here and there as well as report document guide but can't have a tip.

What does that mean?

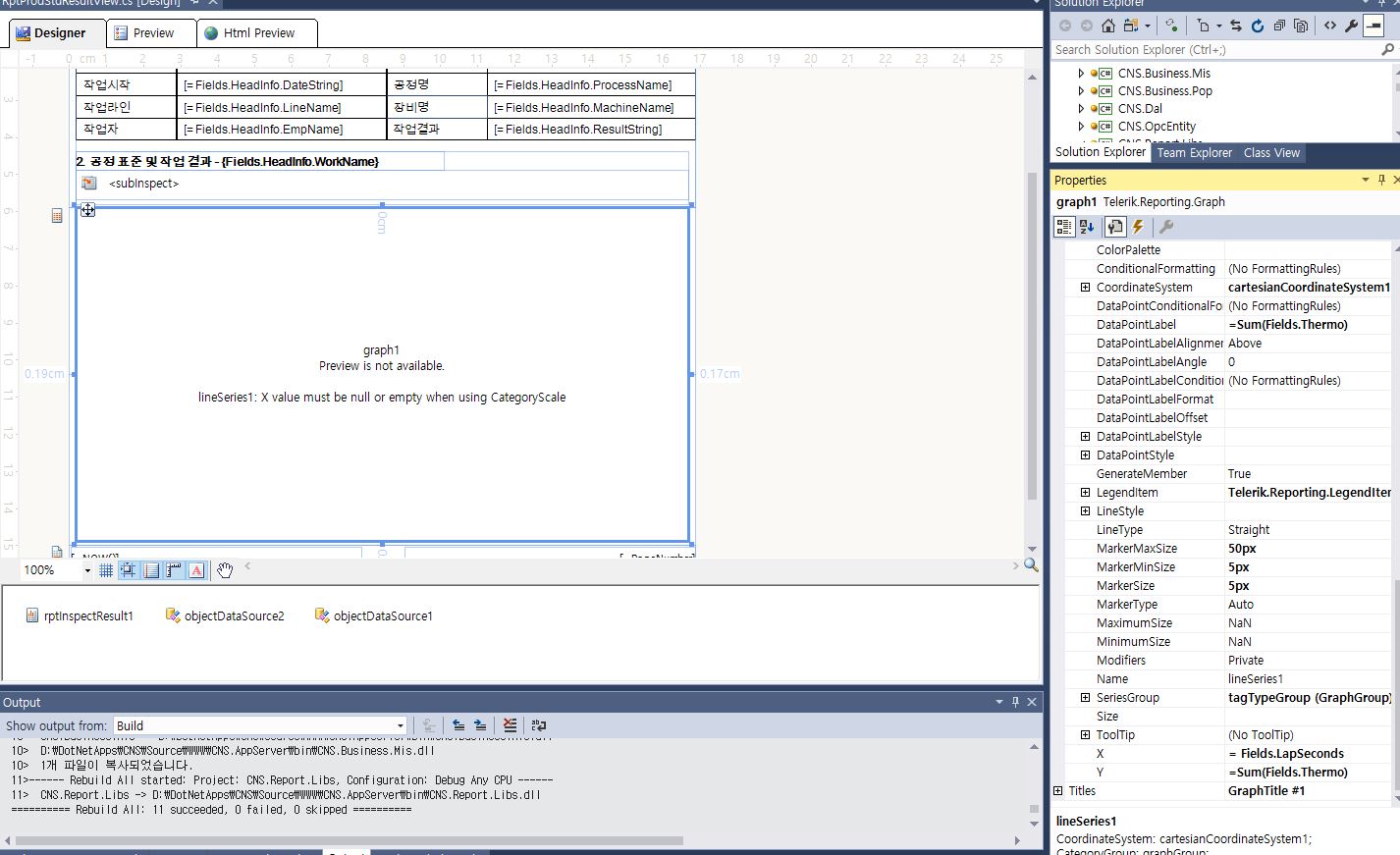

Pls refer attached my report design image and let me know what should be changed.



TIA

Kang



[Ivan Hristov]

Hi Kang,

You are right, this error message was recently introduced and its function is to notify the user that the series' X value does not need an expression, when using a category scale. As explained here, the X value will be automatically determined by the category group, which has its Grouping set to a certain field, so it's redundant to use this field also for the series' X property.

Please make sure that the field used for category grouping is LapSeconds and remove (reset) the X property from series definition. This will allow the graph to be correctly processed and rendered.

Regards,
Ivan Hristov
Progress Telerik

[Yonggu Kang]

Hi Ivan,



It works. Thanks.

Kang
