I have custom classes and custom styles for RadDiagram, RadDiagramShape, RadDiagramConnection, RadDiagramConnector. Now I have run into a styling issue that requires pro help from you :)

I want my connectors to show their label when either of these two conditions is met:
1) The connector's shape (or any of its children) is hovered by the mouse.
2) Any connection, from any shape, is being dragged.

I started off adding a TextBlock to my connector style, but it seems I cannot properly toggle its visibility. If I set it to "Collapsed", it is never shown. Maybe this approach is all wrong, but still, here it is:

Hello,

I have a radchart and personalized chartlegend. In my chartlegend I have a checkbox and I need to get the color that has given radchart sets. But when I try to know the color, in "aparrence" fields appear all to null, but really if you are painting with a certain color.





I try get color and (look attached)


Thank you!

I am trying to bind a contextual group to the IsActive property using a custom property of a UserControl. The contextual tab should only be shown after the user has selected a port from a dropdown list. I have tried each of the following with no success, but hopefully it gives you an idea of what I'm trying to do.

<telerik:RadRibbonView.ContextualGroups>
<telerik:RadRibbonContextualGroup x:Name="xCOM" IsActive="{Binding RelativeSource={RelativeSource Self}, Path=IsPortSelected}"/>
<telerik:RadRibbonContextualGroup x:Name="xCOM" IsActive="{Binding ElementName=_this, Path=IsPortSelected}"/>
<telerik:RadRibbonContextualGroup x:Name="xCOM" IsActive="{Binding RelativeSource={RelativeSource FindAncestor, AncestorType={x:Type local:MyRibbon}}, Path=IsPortSelected}"/>
<telerik:RadRibbonContextualGroup x:Name="xCOM" IsActive="{Binding RelativeSource={RelativeSource FindAncestor, AncestorType={x:Type UserControl}}, Path=IsPortSelected}"/>
</telerik:RadRibbonView.ContextualGroups>

Where IsPortSelected is the property in MyRibbon:

string _port = "";

public string Port

{

    get { return _port; }

    set

    {

        if (_port == value)

        {

            return;

        }

        _port = value;

    }

}



public bool IsPortSelected

{

    get

    {

        if (String.IsNullOrEmpty(_port))

        {

            return false;

        } else if (_port.Equals("Port")) {

            return false;

        }

        return true;

    }

    set { }

}

Is there something wrong with my binding statement? Or do I need to do something else in the code behind, such as implementing a PropertyChangedEventHandler (which I have tried with no success as well)?

Hello,

I got a RadGridView Inside a RadWindow, I'm trying to paste in this RadGridview some data copied from Excel, it works fine if i click over the left top corner of the Radgridview, but if i open the RadWindow and attempt to paste right away, it just doesnt work, the paste event doesnt get fired. the globlal functionality is:

1. Press some button and open the RadWindow with my empty RadGridView Inside
2. Without clicking anywhere,  Press Ctrl + V and paste inside the RadGridView all the data that i have in the clipboard
3. that's it

I tried to set the focus to the RadGridView, but it doesnt seems to work.

Thanks.

Hi,

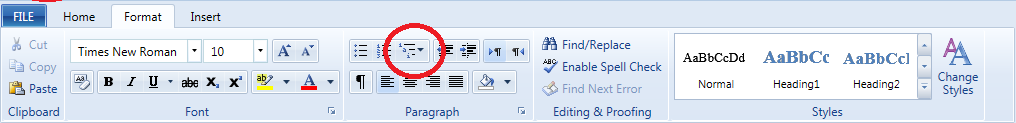

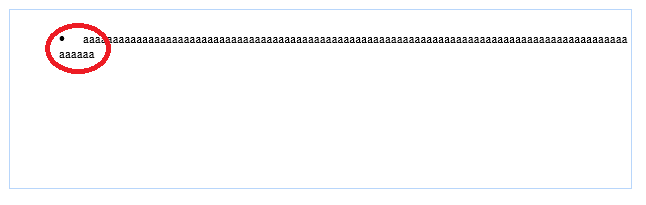

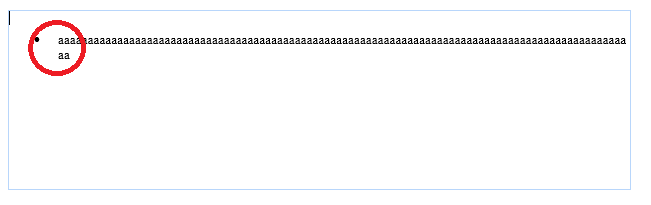

any easy way to replace the selected text with new style ?

hi,
Can we have grid lines that is shown on the graph as dotted lines instead of dashed lines?
<telerik:RadCartesianChart.Grid>
                    <telerik:CartesianChartGrid>
                        <telerik:CartesianChartGrid.Style>
                            <Style TargetType="telerik:CartesianChartGrid">
                                <Setter Property="MajorXLineDashArray" Value="10,5"/>
                                <Setter Property="MajorYLineDashArray" Value="10,5"/>
                                <Style.Triggers>
                                    <DataTrigger Binding="{Binding Path=DisplayGridLines}" Value="1">
                                        <Setter Property="MajorLinesVisibility" Value="X"/>
                                    </DataTrigger>
                                    <DataTrigger Binding="{Binding Path=DisplayGridLines}" Value="2">
                                        <Setter Property="MajorLinesVisibility" Value="Y"/>
                                    </DataTrigger>
                                    <DataTrigger Binding="{Binding Path=DisplayGridLines}" Value="3">
                                        <Setter Property="MajorLinesVisibility" Value="XY"/>
                                    </DataTrigger>
                                </Style.Triggers>
                            </Style>
                        </telerik:CartesianChartGrid.Style>

                        <telerik:CartesianChartGrid.MajorXLineStyle>
                            <Style TargetType="Line">
                                <Setter Property="Stroke" Value="Gray"/>
                            </Style>
                        </telerik:CartesianChartGrid.MajorXLineStyle>

                        <telerik:CartesianChartGrid.MajorYLineStyle>
                            <Style TargetType="Line">
                                <Setter Property="Stroke" Value="Gray"/>
                            </Style>
                        </telerik:CartesianChartGrid.MajorYLineStyle>
                    </telerik:CartesianChartGrid>
                </telerik:RadCartesianChart.Grid>

I have 10 points being shown on the graph. so the grid lines appear for all the 10 points. Can we have it just five and increase it if needed?
Please reply as soon as possible.

When a property return type is ArraySegment<T> and properties are auto-generated, an exception is thrown and the control is not displayed.

My example specifically:

Hi is there any possibility to pin RadPane from code behind? for example I have button inside radpane and after pressing the button I want to pin my RadPane

I am sorry for post I have my answer it is isPinned = false; (I had true value so It doesnt worked :D) please delete this topic :) thank you :)

In our project we want to load settings. Because of the origin of this settings structure these are very generic, exposed via wcf etc. So when we load them in our viewmodel they have the type Object. Also they consist of the real type information so we can convert them to the corresponding type. So far so good.

When we load them in a gridview we would like to have different controls, for the different types. A Boolean should be a togglebutton, a int a numeric updown control and a string a regular textbox. For this approach we use Template selectors, but we also need to convert the types of the objects as described above. Therefore we use converters so the controls accepting the correct values and types. Until this point everything works great. We the problem arises when you scroll down in the grid. I guess you did some optimization. Therefore the templates and converters are evaluated when scrolling down. But in a different order then on initial loading. When the grid load for the first time, first the template is selected and then the converter. But when scrolling down, this order changes. To me that's a bit strange, because how can the converter be determined is there is no template. You will find sample code below. Only in our application there are binding errors showing up in the output window, in this example not. But the problem is still the same. Can we work around this issue, or need you guys to update this?

MainWindow:

<Grid>
        <Grid.Resources>
            <local:BooleanConverter x:Key="BooleanConverter" />
            <local:InvBooleanConverter x:Key="InvBooleanConverter" />
            <local:StringToIntConverter x:Key="StringToIntConverter" />
            <local:StringToDblConverter x:Key="StringToDblConverter" />
            <local:SettingValueTemplateSelector x:Key="SettingValueTemplateSelector" >
                <local:SettingValueTemplateSelector.BooleanTemplate>
                    <DataTemplate>
                        <StackPanel Orientation="Horizontal">
                            <telerik:RadRadioButton IsChecked="{Binding Path=Value}">
                                <TextBlock Text="Enabled"/>
                            </telerik:RadRadioButton>
                            <telerik:RadRadioButton IsChecked="{Binding Path=Value}">
                                <TextBlock Text="Disabled"/>
                            </telerik:RadRadioButton>
                        </StackPanel>
                    </DataTemplate>
                </local:SettingValueTemplateSelector.BooleanTemplate>
                <local:SettingValueTemplateSelector.IntTemplate>
                    <DataTemplate>
                        <telerik:RadNumericUpDown Value="{Binding Path=Value, Converter={StaticResource StringToIntConverter}}" NumberDecimalDigits="0"/>
                    </DataTemplate>
                </local:SettingValueTemplateSelector.IntTemplate>
                <local:SettingValueTemplateSelector.DoubleTemplate>
                    <DataTemplate>
                        <telerik:RadNumericUpDown Value="{Binding Path=Value,Converter={StaticResource StringToDblConverter}}" />
                    </DataTemplate>
                </local:SettingValueTemplateSelector.DoubleTemplate>
                <local:SettingValueTemplateSelector.StringTemplate>
                    <DataTemplate>
                        <TextBlock Text="{Binding Path=Value, Mode=TwoWay}" />
                    </DataTemplate>
                </local:SettingValueTemplateSelector.StringTemplate>
            </local:SettingValueTemplateSelector>

        </Grid.Resources>
        <telerik:RadGridView x:Name="RadGridView" GroupRenderMode="Flat"
                             RowIndicatorVisibility="Collapsed" CanUserFreezeColumns="False"
                             ItemsSource="{Binding ElementName=Window1, Path=List}"
                             IsReadOnly="false"
                             ScrollMode="Deferred"
                             AutoExpandGroups="True"
                             AutoGenerateColumns="false" Margin="0,2,0,-2">
            <telerik:RadGridView.Columns>
                <telerik:GridViewDataColumn
                    Header="Value"
                    IsGroupable="True"
                    DataMemberBinding="{Binding Value}"
                    CellTemplateSelector="{StaticResource SettingValueTemplateSelector}"
                    Background="LightGray">
                </telerik:GridViewDataColumn>
                <telerik:GridViewDataColumn
                    Header="ValueType"
                    IsGroupable="True"
                    DataMemberBinding="{Binding ValueType}"
                    Background="LightGray">
                </telerik:GridViewDataColumn>
            </telerik:RadGridView.Columns>
        </telerik:RadGridView>
    </Grid>
Template selector:
public class SettingValueTemplateSelector : DataTemplateSelector
    {
        public override DataTemplate SelectTemplate(object item, DependencyObject container)
        {
            if (item is DataObjecten)
            {
                DataObjecten model = item as DataObjecten;

                if (model.ValueType == typeof(int))
                    return this.IntTemplate;
                else if (model.ValueType == typeof(String))
                    return this.StringTemplate;
                else if (model.ValueType == typeof(double))
                    return this.DoubleTemplate;
                else if (model.ValueType == typeof(bool))
                    return this.BooleanTemplate;
                else
                    return null;
            }
            return null;
        }
}

One of the converters (basic):
public class StringToIntConverter : IValueConverter
{
    public object Convert(object value, Type targetType, object parameter, System.Globalization.CultureInfo culture)
    {
        int retValue=0;
        if (int.TryParse(value.ToString(), out retValue))
        {
            return retValue;
        }
        else
            return 0;
    }

    public object ConvertBack(object value, Type targetType, object parameter, System.Globalization.CultureInfo culture)
    {
          throw new NotSupportedException("Do not use this converter for objects other than boolean");
    }
}

Model:
public class DataObject
  {
      public object Value { get; set; }
      public Type ValueType { get; set; }
  }

          List.Add(new DataObject() { Value = "8", ValueType = typeof(int) });
          List.Add(new DataObject() { Value = "8", ValueType = typeof(double) });
          List.Add(new DataObject() { Value = "8gf", ValueType = typeof(string) });
          List.Add(new DataObject() { Value = 454365, ValueType = typeof(int) });
          List.Add(new DataObject() { Value = false, ValueType = typeof(bool) });

Hi,

I'm having troubles with the onMouseEnter and onMouseLeave for the RadTreeViewItems.

Each time the mouse is over an item I need to show an image ("Gear")  beside this RadTreeviewItem. I'm showing this image with the onMouseEnter event and i'm hiding it with the onMouseLeave event. The problem is when i select a RadTreeViewItem that is inside another RadTreeViewItem. It shows its "Gear" and also its father "Gear".

The event is fired by the item that got the mouseOver and by all its fathers. the event should be fired only by the item with the mouse over.

can you please advise me?

thanks
