Questions on UI for WPF Forum

1 answer

52 views

Hi,

i load my appointments in the schduleview. Now i select one appointment (double-click - cklick ok). After that i make a double-click somewhere else in the scheduleview, but it is still the last appointment selected!

is this a Bug?

thanks
Best Regards
Rene

ScheduleView

answered on 29 Aug 2013

1 answer

261 views

Changing Area Series Fill Opacity Within A ChartSeries Provider

I'm in need of having a dynamic number of area series overlap each other in a meaningful way, and therefor I'm attempting to track down a way to set the areaseries fill property's opacity property, I have not yet been successful in any way shape or form to do so. The Xaml is shown below, any aid is greatly appreciated.

<telerik:RadCartesianChart DockPanel.Dock="Bottom" x:Name="UnderWaterEquityCurve" Palette="Windows8">

<telerik:RadCartesianChart.Grid>

<telerik:CartesianChartGrid MajorLinesVisibility="Y"/>

</telerik:RadCartesianChart.Grid>

<telerik:RadCartesianChart.Behaviors>

<telerik:ChartPanAndZoomBehavior ZoomMode="Both" PanMode="Horizontal"/>

</telerik:RadCartesianChart.Behaviors>

<telerik:RadCartesianChart.HorizontalAxis>

<telerik:DateTimeContinuousAxis LabelFitMode="Rotate" LabelFormat="dd/MM/yy"/>

</telerik:RadCartesianChart.HorizontalAxis>

<telerik:RadCartesianChart.VerticalAxis>

<telerik:LinearAxis HorizontalAlignment="Right"></telerik:LinearAxis>

</telerik:RadCartesianChart.VerticalAxis>

<telerik:RadCartesianChart.SeriesProvider>

<telerik:ChartSeriesProvider Source="{Binding VisiblePortfolios}">

<telerik:ChartSeriesProvider.SeriesDescriptors>

<telerik:CategoricalSeriesDescriptor ItemsSourcePath="UnderwaterEquityCurve" ValuePath="Value" CategoryPath="Date">

<telerik:CategoricalSeriesDescriptor.Style>

<Style TargetType="telerik:AreaSeries">

<Setter Property="LegendSettings" Value="{Binding Name, Converter={StaticResource SeriesSourceNameToSeriesLegendSettigsConverter}}"/>

</Style>

</telerik:CategoricalSeriesDescriptor.Style>

</telerik:CategoricalSeriesDescriptor>

</telerik:ChartSeriesProvider.SeriesDescriptors>

</telerik:ChartSeriesProvider>

</telerik:RadCartesianChart.SeriesProvider>

</telerik:RadCartesianChart>

ChartView

answered on 29 Aug 2013

1 answer

115 views

Winform PropertyGrid in RadWindow

Hi,
as there have been some problems using RadPropertyGrid (I've posted the issues in the forum lately), I'm temporarily using Winform PropertyGrid instead. However, Winform PropertyGrid doesn't even show up when I tried to place it in RadWindow. Can you please test it or hopefully, get the RadPropertyGrid's converters to work? (Please refer to http://www.telerik.com/community/forums/wpf/property-grid/propertygrid-problems-in-2013-q2.aspx)
Thanks.

Window

answered on 29 Aug 2013

3 answers

130 views

Physical-Logical Caret Position Mismatch

I'm working on getting a simple project together to try and recreate the issue and will post when I get it together.

I'm experiencing something similar to this thread from 2011. Inside of a long form RichTextBox the "physical" position of the caret onscreen does not match the logical position of the caret and when inserting or deleting the effect is quite disconcerting.

What we have noticed is that the effect is accentuated primarily by the distance from the beginning of the text block. If the block of text is large (2K+) the offset is greater at the end of the document than near the beginning and, in fact, the first two or three paragraphs may not show any offset at all.

Font family and size do appear to have some effect on the problem but there does not appear to be any font/size combo (I worked hard at testing fixed-width fonts thinking they might not show the issue being, after all, fixed width) that works reliably.

From a layout perspective we have...
+ A master view that contains
+ A RichTextBoxRibbon
+ A Tab View that contains
+ A Wizard View on one tab
+ The RadRichTextBox within a user control

As I'm working on a sample project to illustrate is there any insight that might be offered if anyone else has run into this before and it was a simple fix?

Thanks!

rjsjr

RichTextBox

answered on 29 Aug 2013

2 answers

133 views

Set tooltip in MonthItemTemplate

Hi,

We are currently customizing The radscheduleview with a lot of custom styles and templates. One of the customer's requirements is to associate a remark with a date, We try to make this visible in the Radscheduleview by styling the TimeRulerItemTemplateSelector.MonthItemTemplate:

<DataTemplate

<Grid

<TextBlock HorizontalAlignment="Left" Text="{Binding FormattedValue}"

/>

<Image Height="15" HorizontalAlignment="Right" Margin="0,0,100,0" Source="pack://application:,,,/Images/speech_bubble.png"

<Image.ToolTip

<TextBlock Text="Hi! I'm a tooltip"

/>

</Image.ToolTip

</Image

</Grid

</DataTemplate>

It's a very simplistic example, in our app we bind the text and visibility, but this has the same issue:
The Balloon displays nicely (image in attachment), but unfortunately the tooltip never pops up when you hover over the image. I guess this has something to do with the style, I'm guessing Zindexes but after experimenting a bit with the default styles I can't get the tooltip to show..

Any suggestions?

Thanks in advance!

EDIT: we use the Windows8 theme btw

ScheduleView

answered on 29 Aug 2013

1 answer

56 views

Dragable ComparativeMeasure and other regions

I know there is not direct support to allow dragging of the ComparitiveMeasure line in BulletGraph. However what I'd like to know if it is possible to do this via some kind of workaround?

Thanks,
Wouter

BulletGraph

answered on 29 Aug 2013

1 answer

120 views

DataBinding and Click and Drag Connection

Hi

I'm trying to implement a diagram control using databinding. But I'm unable to use creating connections by click on one of the shape's port and drag it to another shape's port like the examples in the WPF demo. I've tried to set "IsConnectorManipulationEnabled" to true that doesn;t work either. I've attached my GraphSourceBase code below. Any suggestions to enable the default connector behaviour in databinding method ?

public class CMGraphSource : GraphSourceBase<CMDeviceShapeViewModel, ILink>

{

public CMGraphSource()

{

//Load initial objects into CMDiagram (Reciever and USBTripods)

int TripodCount = ConnectionHandler.Instance.getUSBTripodCount();

for (int i = 0; i < TripodCount; i++)

{

Tripod t = ConnectionHandler.Instance.getUSBTripod(i);

AddItem(new TripodCMViewModel(t.id));

}

int RecieverCount = ConnectionHandler.Instance.getRecieverCount();

for (int i = 0; i < RecieverCount; i++)

{

Reciever r = ConnectionHandler.Instance.getReciever(i);

AddItem(new RecieverCMViewModel(r.id));

}

ConnectionHandler.Instance.PropertyChanged += onConnectionHandlerDeviceChange;

}

private void onConnectionHandlerDeviceChange(object sender, System.ComponentModel.PropertyChangedEventArgs e)

{

if (e.PropertyName.Equals("AddReciever", StringComparison.InvariantCultureIgnoreCase))

{

Reciever r = (Reciever)sender;

AddItem(new RecieverCMViewModel(r.id));

}

else if (e.PropertyName.Equals("RemoveReciever", StringComparison.InvariantCultureIgnoreCase))

{

Reciever r = (Reciever)sender;

}

else if (e.PropertyName.Equals("AddUSBTripod", StringComparison.InvariantCultureIgnoreCase))

{

Tripod t = (Tripod)sender;

AddItem(new TripodCMViewModel(t.id));

}

else if (e.PropertyName.Equals("RemoveUSBTripod", StringComparison.InvariantCultureIgnoreCase))

{

Tripod t = (Tripod)sender;

}

public void AddItem(CMDeviceShapeViewModel model)

{

if (base.InternalItems.Contains(model))

return;

base.AddNode(model);

}

Diagram

answered on 29 Aug 2013

8 answers

658 views

Problem using RadGridView - unable to load file or assembly Telerik.Windows.Controls.GridView

Hello, I'm having an issue using the GridView..

I have an application (x86) that references several assemblies (any cpu)
The application references a WPF user control library, which contains, among many other parts, a window with a RadGridView.
When code wants to open this window, I get the following exception in the constructor:

Could not load file or assembly 'Telerik.Windows.Controls.GridView, PublicKeyToken=5803cfa389c90ce7' or one of its dependencies. The system cannot find the file specified.

What is going on here?

GridView

answered on 28 Aug 2013

1 answer

185 views

Modify Default RadDocument ListStyle programmatically

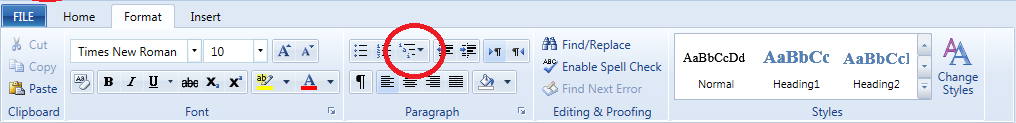

In the RadRichTextBoxRibbonUI there is a collection of lists defined by default in the following drop-down button:

I would like to modify the properties (e.g. the hanging indent) of these default lists. How would I modify these default lists programmatically?

Thanks.

RichTextBox

answered on 28 Aug 2013

1 answer

123 views

Hanging Indent of bulleted list is lost

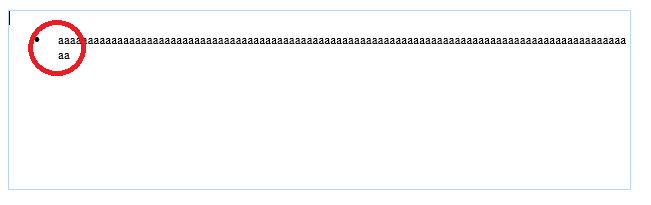

When exporting a bulleted list via an HTMLFormatProvider, it seems that the hanging indent is lost. For example when I enter a bulleted list into the RadRichTextBox as shown below

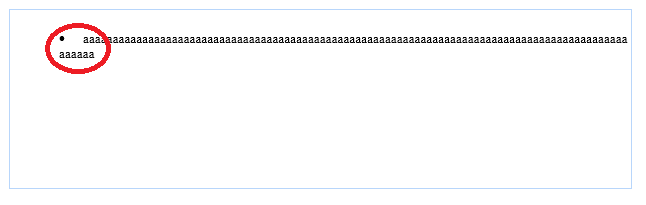

the hanging indent looks fine, but when the string is re-loaded (i.e. exported and imported) it looks like the following:

The hanging indent is lost, it seems.

RichTextBox

answered on 28 Aug 2013
