I have an mvvm style project.
in this i have ComponentDiagramItems that derive from NodeViewModelBase
in the xaml i have set <Setter Property="UseDefaultConnectors" Value="False"/>

then in the ComponentDiagramIItem constructor i add the relevant connectors like this


 public ComponentDiagramItemViewModel(String componentNameIn, Uri imageUri)
            {
                this.ComponentName = componentNameIn;
                this.ComponentImage = imageUri;

                List<RadDiagramConnector> connectors = new List<RadDiagramConnector>();
                RadDiagramConnector one = new RadDiagramConnector() { Offset = new Point(1, 0.5), Name = "CustomConnector1" };
                one.AllowDrop = true;
                connectors.Add(one);
                RadDiagramConnector two  = new RadDiagramConnector() {Offset = new Point(0,0.5), Name = "CustomConnector2"};
                two.IsManipulationEnabled = true;
                connectors.Add(two);

                this.MyConnectors = connectors;
            }

and in the xaml i bind this property like this

 <primitives:ConnectorsControl ItemsSource="{Binding MyConnectors}"
                                                   ItemContainerStyle="{TemplateBinding ConnectorStyle}"
                                                    x:Name="MyConnectorsControl"
                                                    Visibility="Collapsed"/>

inside my ControlTemplate with TargetType="telerik:RadDiagramShape"


Everything shows upp the way i expect. BUT i cannot connect the shapes with links. if i click on a Connector and start dragging i get a link and when i drag it over another shape that shapes connectors becomes visible. But if i drag my link directly over the connector nothing happens...

This is my link class implemenation.

public class Link : LinkViewModelBase<ComponentDiagramItemViewModel>
    {
        public string Id { get; set; }

        public override string ToString()
        {
            return "";
        }
        public Link(ComponentDiagramItemViewModel source, ComponentDiagramItemViewModel target)
        {
            if (source != null) this.Source = source;
            if (target != null) this.Target = target;
        }

    }

and this is my visual state manager


 <VisualStateManager.VisualStateGroups>
                                        <VisualStateGroup x:Name="MouseStates">
                                            <VisualState x:Name="Normal"/>
                                            <VisualState x:Name="MouseOver"/>
                                        </VisualStateGroup>
                                        <VisualStateGroup>
                                            <VisualState x:Name="ConnectorsAdornerVisibilityStates"/>
                                            <VisualState x:Name="ConnectorsAdornerCollapsed"/>
                                            <VisualState x:Name="ConnectorsAdornerVisible">
                                                <Storyboard>
                                                    <ObjectAnimationUsingKeyFrames Duration="0"
                                                                    Storyboard.TargetProperty="Visibility"
                                                                    Storyboard.TargetName="MyConnectorsControl">
                                                        <DiscreteObjectKeyFrame KeyTime="0">
                                                            <DiscreteObjectKeyFrame.Value>
                                                                <Visibility>Visible</Visibility>
                                                            </DiscreteObjectKeyFrame.Value>
                                                        </DiscreteObjectKeyFrame>
                                                    </ObjectAnimationUsingKeyFrames>
                                                </Storyboard>
                                            </VisualState>
                                        </VisualStateGroup>
                                    </VisualStateManager.VisualStateGroups>

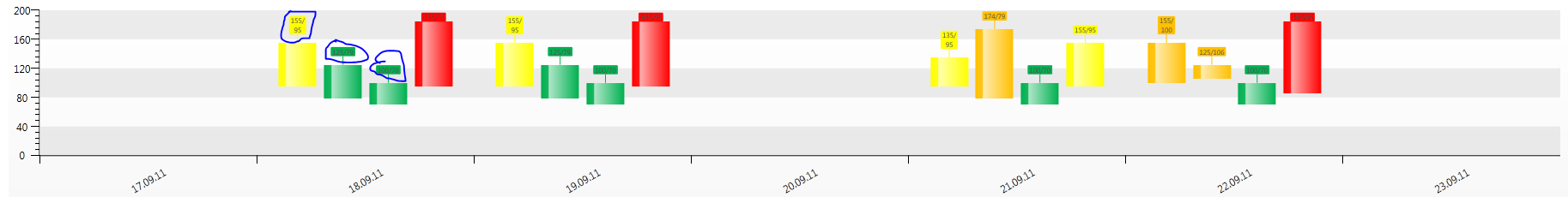

How to customize series with different pointmark?

Is it possible to set pointmark shape(not just draw a point or use different color) as same as the attached picture?

Hi, I would like to enquire on an issue as per title. For other telerik controls like RadGridView, I can disable tabbing within the cells with IsTabStop = false. But this doesn't work for RadSpreadSheet. I've tried Focusable=false on it and IsTabStop = false on application level as well, but to no avail.

Hi,

I need to create a gridview with some column grouping. Unlike the normal RadGridView column grouping, the header height and header text alignment have their special requirement. Could you help with this?

Thanks,

Bill

Hello,

I'm using RadDateTimePicker in my project and I want to customize textbox( for example change background). I found this code and decided to make changes on it to change background, but it gave a lot of build errors.


My errors look like this

Error 1 The member "AreWeekNamesVisible" is not recognized or is not accessible. TelerikGridView\TelerikGridView\Window1.xaml 188 194 TelerikGridView
Error 2 The member "AreWeekNumbersVisible" is not recognized or is not accessible. TelerikGridView\TelerikGridView\Window1.xaml 188 254 TelerikGridView
Error 3 The member "CalendarWeekRule" is not recognized or is not accessible. TelerikGridView\TelerikGridView\Window1.xaml 188 318 TelerikGridView
Error 4 The member "CenturyViewHeaderFormat" is not recognized or is not accessible. TelerikGridView\TelerikGridView\Window1.xaml 188 372 TelerikGridView
Error 5 The member "CenturyViewPanel" is not recognized or is not accessible. TelerikGridView\TelerikGridView\Window1.xaml 188 440 TelerikGridView
Error 6 The member "CenturyViewStyle" is not recognized or is not accessible. TelerikGridView\TelerikGridView\Window1.xaml 188 494 TelerikGridView
Error 7 The member "Columns" is not recognized or is not accessible. C:\Users\Tigran Petrosyan\Desktop\TelerikGridView\TelerikGridView\Window1.xaml 188 548 TelerikGridView
Error 8 The member "DayButtonStyle" is not recognized or is not accessible. TelerikGridView\TelerikGridView\Window1.xaml 188 620 TelerikGridView
Error 9 The member "DayButtonStyleSelector" is not recognized or is not accessible. TelerikGridView\TelerikGridView\Window1.xaml 188 670 TelerikGridView
Error 10 The member "DayTemplate" is not recognized or is not accessible. TelerikGridView\TelerikGridView\Window1.xaml 188 736 TelerikGridView
TelerikGridView\TelerikGridView\Window1.xaml 188 780 TelerikGridView
..............
..............

Hi,

when I use this
is possible somehow to style the radpaneheader? like change cursore or size of the draged header (tab)

thank you.

Hi,
      After yesterday I downloaded TrayVersion and installed in the VS2010, I set up a demo associated with the RichTextBox  to test, when I run, in more and more text input in Editor, between the cursor and the last input word spacing is more and more big! Can be the solution?

Hi,

My application has RadSplitContainers in it.  They are created dynamically.  They do not have unique properties.  So, I am not able to test my application using Coded UI Test.

Can you suggest how to provide unique Names for these RadSplitContainers?

Regards,
Rajendar

i have created a rad document. within that document i want to print text from another rad document.

I have a simple GridView placed inside a Grid. I'm setting the ItemsSource from C# with auto-generating columns. The vertical scrollbar works fine but the horizontal scrollbar just refuses to show up. This is the code I'm using

WPF



TableSource is an ObservableCollection of dynamic ExpandoObject. This UserControl is placed in a RadTabItem of another UserControl which in turn appears in a RadPane in the MainWindow.
