WMF files

2 Answers 16 Views
General Discussions
This is a migrated thread and some comments may be shown as answers.
Manuel
Top achievements
Rank 1
Manuel asked on 03 Feb 2021, 12:11 PM

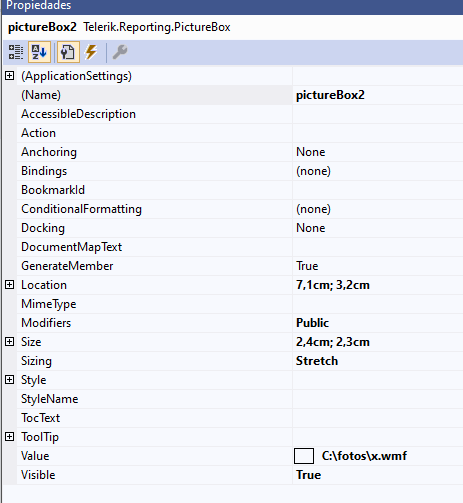

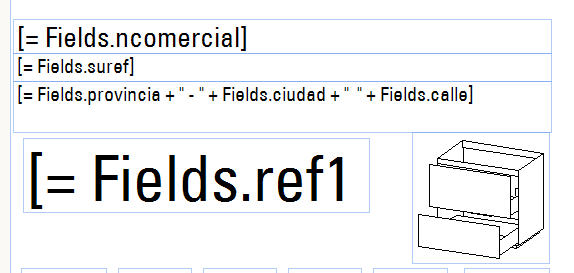

     Hi, I have a reporting with a picturebox. In the properties box set the value to C:\fotos\imge1.wmf and can see the wmf in the picturebox. But when print the report  picturebox is empty. I have tried to change values of sizing property to (Stretch,ScaleProportional,AutoSize,Center,Normal) and resize the picturebox in multiples sizes without results. I use Telerik Reporting R3 2020 which is compatible with wmf files.



Thanks¡¡¡







2 Answers, 1 is accepted

Sort by
0
Manuel
Top achievements
Rank 1
answered on 03 Feb 2021, 12:18 PM

Sorry, here is the wmf file.



Thanks¡¡¡

0
Neli
Telerik team
answered on 08 Feb 2021, 01:24 PM

Hello Manuel,

Thank you for the provided file and steps. The issue is logged as a bug in our system- WMF is not displayed when the path of the file is used as a Value of the PictureBox.

You can apply the following workaround to avoid the problem:

1. Go to the Value property of the PictureBox and click on the three dots (...)

2. In the File name field, type *.* and Enter.

3. Select the WMF file.

You can also check the attached file for further reference.
