[Solved] RadTreeNode.Nodes.Clear() scrolls RadTreeView to first node

Hi,

When using a node's Nodes.Clear() method the tree view scrolls up to the top and shows the tree view's first node.

If I load the Form2 and scroll down a bit so the first node is no longer visible, and check the check box, then double click on a node it will expand, and make the top node visible.

My work around is to remove each node individually, i.e.
If I load the Form2 and scroll down a bit so the first node is no longer visible, then double click on a node it will expand.

Public Class Form2

Inherits System.Windows.Forms.Form

'Form overrides dispose to clean up the component list.

<System.Diagnostics.DebuggerNonUserCode()> _

Protected Overrides Sub Dispose(ByVal disposing As Boolean)

Try

If disposing AndAlso components IsNot Nothing Then

components.Dispose()

End If

Finally

MyBase.Dispose(disposing)

End Try

End Sub

'Required by the Windows Form Designer

Private components As System.ComponentModel.IContainer

'NOTE: The following procedure is required by the Windows Form Designer

'It can be modified using the Windows Form Designer.

'Do not modify it using the code editor.

<System.Diagnostics.DebuggerStepThrough()> _

Private Sub InitializeComponent()

Me.RadTreeView1 = New Telerik.WinControls.UI.RadTreeView()

Me.CheckBox1 = New System.Windows.Forms.CheckBox()

CType(Me.RadTreeView1, System.ComponentModel.ISupportInitialize).BeginInit()

Me.SuspendLayout()

'

'RadTreeView1

'

Me.RadTreeView1.BackColor = System.Drawing.SystemColors.Control

Me.RadTreeView1.Cursor = System.Windows.Forms.Cursors.Default

Me.RadTreeView1.Font = New System.Drawing.Font("Segoe UI", 8.25!)

Me.RadTreeView1.ForeColor = System.Drawing.Color.Black

Me.RadTreeView1.Location = New System.Drawing.Point(12, 11)

Me.RadTreeView1.Name = "RadTreeView1"

Me.RadTreeView1.RightToLeft = System.Windows.Forms.RightToLeft.No

'

Me.RadTreeView1.RootElement.ForeColor = System.Drawing.Color.Black

Me.RadTreeView1.Size = New System.Drawing.Size(150, 250)

Me.RadTreeView1.SpacingBetweenNodes = -1

Me.RadTreeView1.TabIndex = 3

Me.RadTreeView1.Text = "RadTreeView1"

'

'CheckBox1

'

Me.CheckBox1.AutoSize = True

Me.CheckBox1.Location = New System.Drawing.Point(168, 23)

Me.CheckBox1.Name = "CheckBox1"

Me.CheckBox1.Size = New System.Drawing.Size(81, 17)

Me.CheckBox1.TabIndex = 4

Me.CheckBox1.Text = "CheckBox1"

Me.CheckBox1.UseVisualStyleBackColor = True

'

'Form2

'

Me.AutoScaleDimensions = New System.Drawing.SizeF(6.0!, 13.0!)

Me.AutoScaleMode = System.Windows.Forms.AutoScaleMode.Font

Me.ClientSize = New System.Drawing.Size(292, 273)

Me.Controls.Add(Me.CheckBox1)

Me.Controls.Add(Me.RadTreeView1)

Me.Name = "Form2"

Me.Text = "Form2"

CType(Me.RadTreeView1, System.ComponentModel.ISupportInitialize).EndInit()

Me.ResumeLayout(False)

Me.PerformLayout()

End Sub

Friend WithEvents RadTreeView1 As Telerik.WinControls.UI.RadTreeView

Private Sub Form2_Load(sender As System.Object, e As System.EventArgs) Handles MyBase.Load

For i = 0 To 20

Dim node = RadTreeView1.Nodes.Add("node " + i.ToString)

For j = 0 To 20

Dim n2 = node.Nodes.Add("node " + i.ToString + " " + j.ToString)

Next

RadTreeView1.LazyMode = True

End Sub

Private Sub RadTreeView1_NodeExpandedChanged(sender As System.Object, e As Telerik.WinControls.UI.RadTreeViewEventArgs) Handles RadTreeView1.NodeExpandedChanged

Dim n = RadTreeView1.SelectedNode

If n Is Nothing Then Return

If CheckBox1.Checked Then

n.Nodes.Clear()

Else

While n.Nodes.Count > 0

n.Nodes.RemoveAt(0)

End While

End If

For i = 0 To 10

Dim node = n.Nodes.Add("Expando " + i.ToString)

Next

End Sub

End Class

My experience with .Net is 7 years. My experience with Rad is about 2 weeks.

OS version and applied service packs

Microsoft Windows Server 2003, Standard Edition, Service Pack 2

Regional and language settings, if different from En-US

English (Australia)

.NET version (.NET2, .NET3, .NET3.5)

.NET 4.0.30319 SP1Rel, Visual Studio 2010 Version 10.0.40219.1 SP1Rel

Exact version of the Telerik product

Runtime Version v2.0.50727, Version 2011.2.11.831

Treeview

answered on 17 Feb 2012

1 answer

135 views

Can we merge the forms designed in Telerik 2011 Q2 and Q3 ?

Hi,

We are a group of developers developing in various place and finally will merge all the forms in one place.

Let me know if a person developed an application using Telerik 2011 Q3
and another one developed using Telerik 2011 Q2
(For Example: we have totally 10 forms. 7 forms were designed in Telerik2011 Q3 and 3 were designed in Telerik2011 Q2
we like to open forms developed in Telerik2011 Q3 in a system having telerik 2011 Q2 )
if we do so. Its getting error. (please refer attached image file to see the error page)
I mean its getting error while merging Telerik 2011 Q3 with Telerik 2011 Q2

I request Telerik Support team to give a solution as quick as possible.

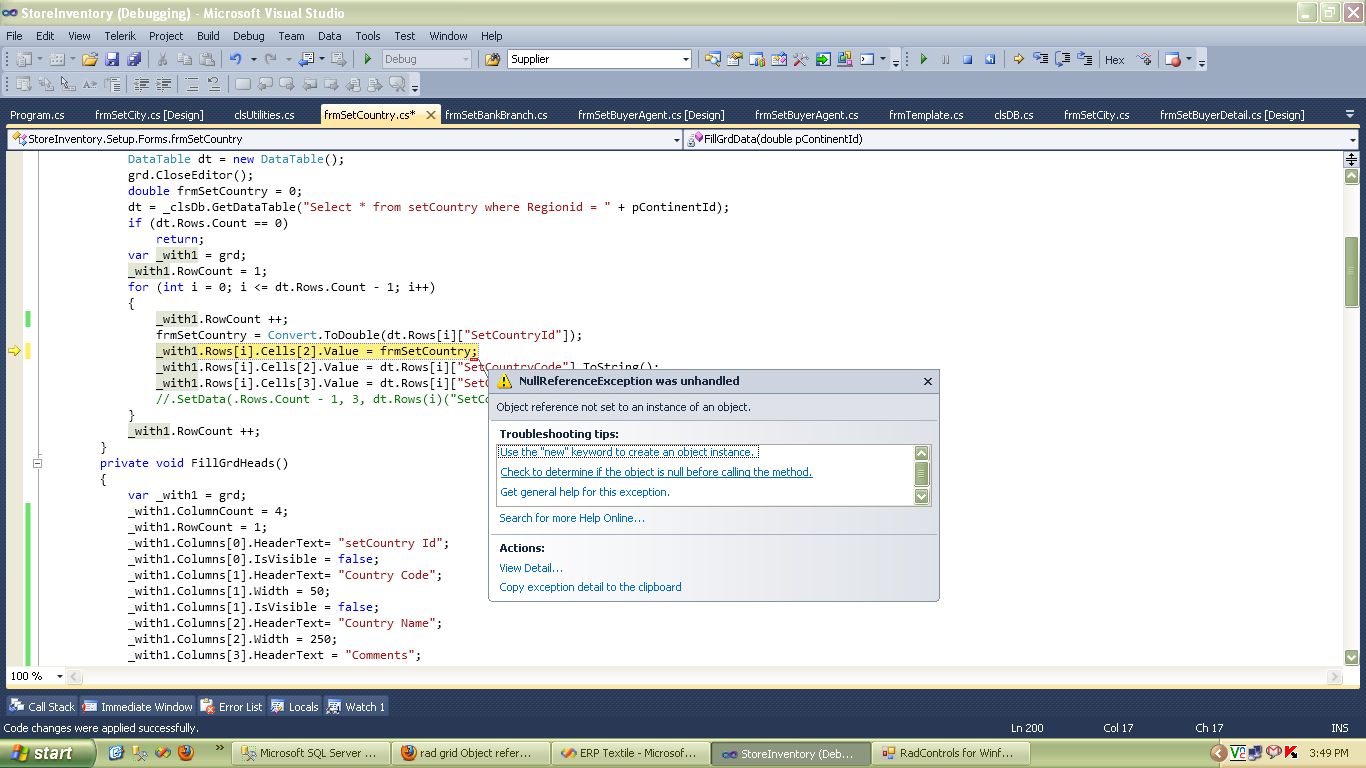

Note: I have attached the Err.Page screen shot.

Please reply as soon as possible.
Regards,
Thiru.

General Discussions

answered on 17 Feb 2012

3 answers

318 views

GridHeaderCellElement in C++

I am using C++/CLI with the Telerik GridView. I have a checkbox column which I wanted to add the CheckBoxHeaderCell class to. (Reference: http://www.telerik.com/support/kb/winforms/gridview/add-check-uncheck-all-check-box-in-the-header-cell.aspx). I wrote the example and compiled it in C++/CLI from the given C# code. However, I do not know how to tell my grid view to USE this class as a columns header cell. Any help would be appreciated!

- John

GridView

answered on 17 Feb 2012

6 answers

641 views

How to make second column as hierarchical tree view column.

Hi,
I am displaying data in the grid as hierarchical form using a self reference, here treeview column is displayed in the first column as shown in attached screen shot1 but i need to display the treeview node in second column instead of first column as shown in attached screen shot 2. How can i achieve the output shown in screen shot 2?

Thanks..

GridView

answered on 17 Feb 2012

1 answer

159 views

[Solved] How to localize? (no RadListViewLocalizationProvider)

How can I localize the RadListView?
For the RadGridView i use the "RadGridLocalizationProvider", but there is no corresponding class for the RadListView (or I can't find it).

ListView

answered on 17 Feb 2012

1 answer

203 views

DataTypeConverter on ComboBox column

Hi,

I have added a TypeConverter to my ComboBox column which converts from string to Value which will allow me to paste either the Int Value or the String Value into the Combobox. This is all working fine.

What I would like to know is it possible to copy out the string Value using this, Or would I have to use an other method to do this.

In thought if I used ComboboxCell.Value.ToString() then it would convert the value to the String Version but it doesnt.

Thanks

David

GridView

answered on 17 Feb 2012

1 answer

334 views

How to set the work week start day as sunday

Hi
i want to set work week as sunday. now my application it is displaying as monday. but i want to start work week as sunday-thrusday instead of monday-friday

Thanks
Hema

Scheduler and Reminder

answered on 17 Feb 2012

1 answer

264 views

[Solved] RadDropDownButton prevent close?

Hi,
I have a RadDropDownButton and am using the menum items as a checklist. The problem is I would like to keep the drop down open until the button is clicked again to allow the user to select multiple items.

Is this possible?

Thank you,
David

Buttons, RadioButton, CheckBox, etc

answered on 16 Feb 2012

4 answers

370 views

Client Side get Button ID

Is there any way to get a buttons ID instead of just the Text.

I have a button Add under a "Pages" group and an Add under a "Users" group. Just getting the text isn't good enough.

Is there a similar method to: button.get_text() such as button.get_id() ???

Only code I could find in the help file was:
var button = args.get_button();
alert (button.get_text())

Thanks for the help. If there isn't then would be good to add to the future feature list.

Thanks!

RibbonBar

answered on 16 Feb 2012

3 answers

351 views

Scroll to row without selection

In my case I want to scroll to the top row in certain circumstances. The code that works isn't elegant as it will fire events that I really don't want. To get around that I use a flag that I set before updating the grid, then reset after. Here's the code:

_fillingSearchGrid = true;
SearchResultsGrid.DataSource = results;
if (SearchResultsGrid.Rows.Count > 0)
{
SearchResultsGrid.CurrentRow = SearchResultsGrid.ChildRows[0];
SearchResultsGrid.CurrentRow = null;
}
_fillingSearchGrid = false;

Is there a better way to do this?

GridView

answered on 16 Feb 2012
