Why adding new node breaks the layout?

[Konstantin]

Hello.

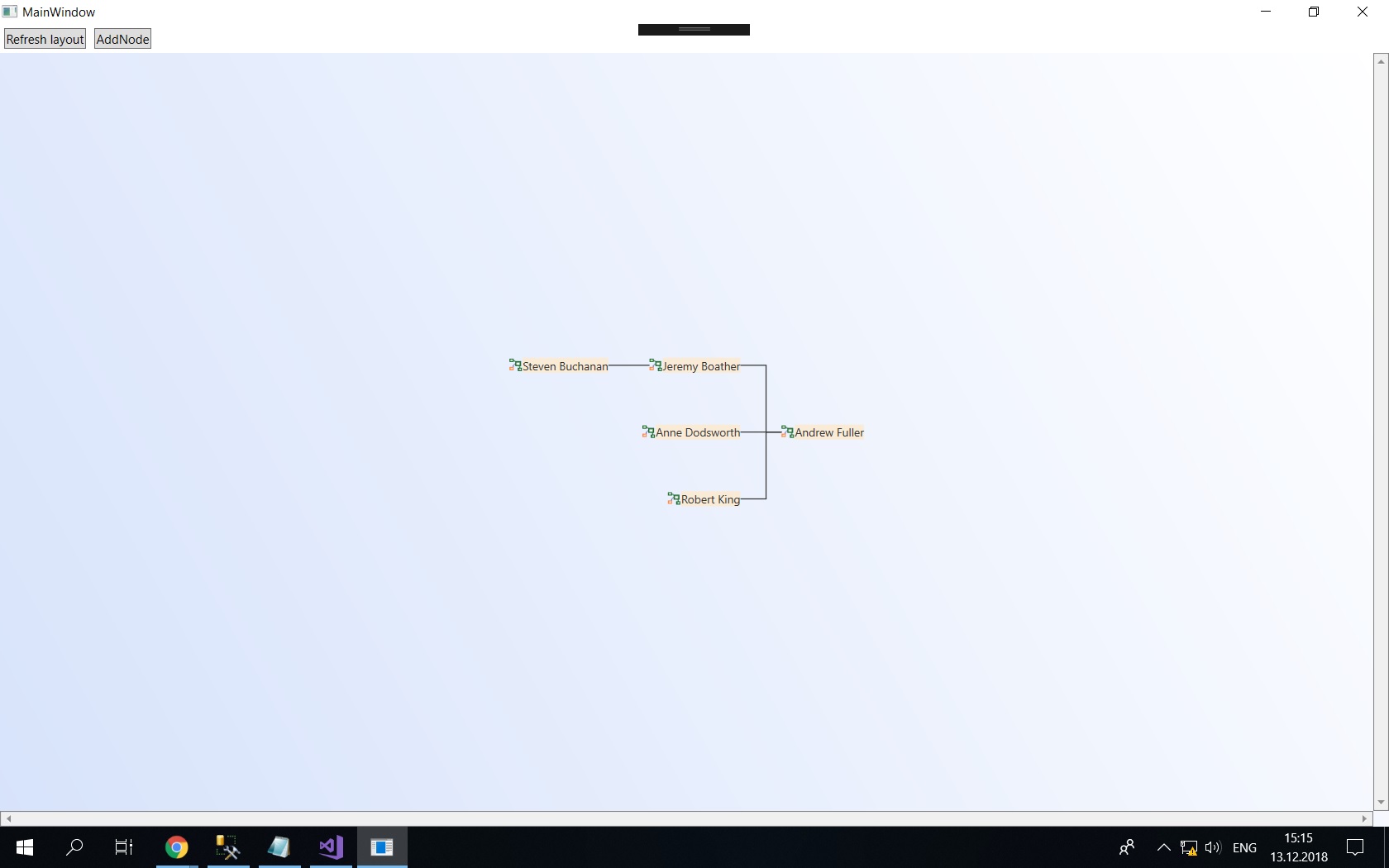

I am testing a WPF Org Chart Diagram and I need to dynamic create child nodes when user clicks the Node (lazy loading).

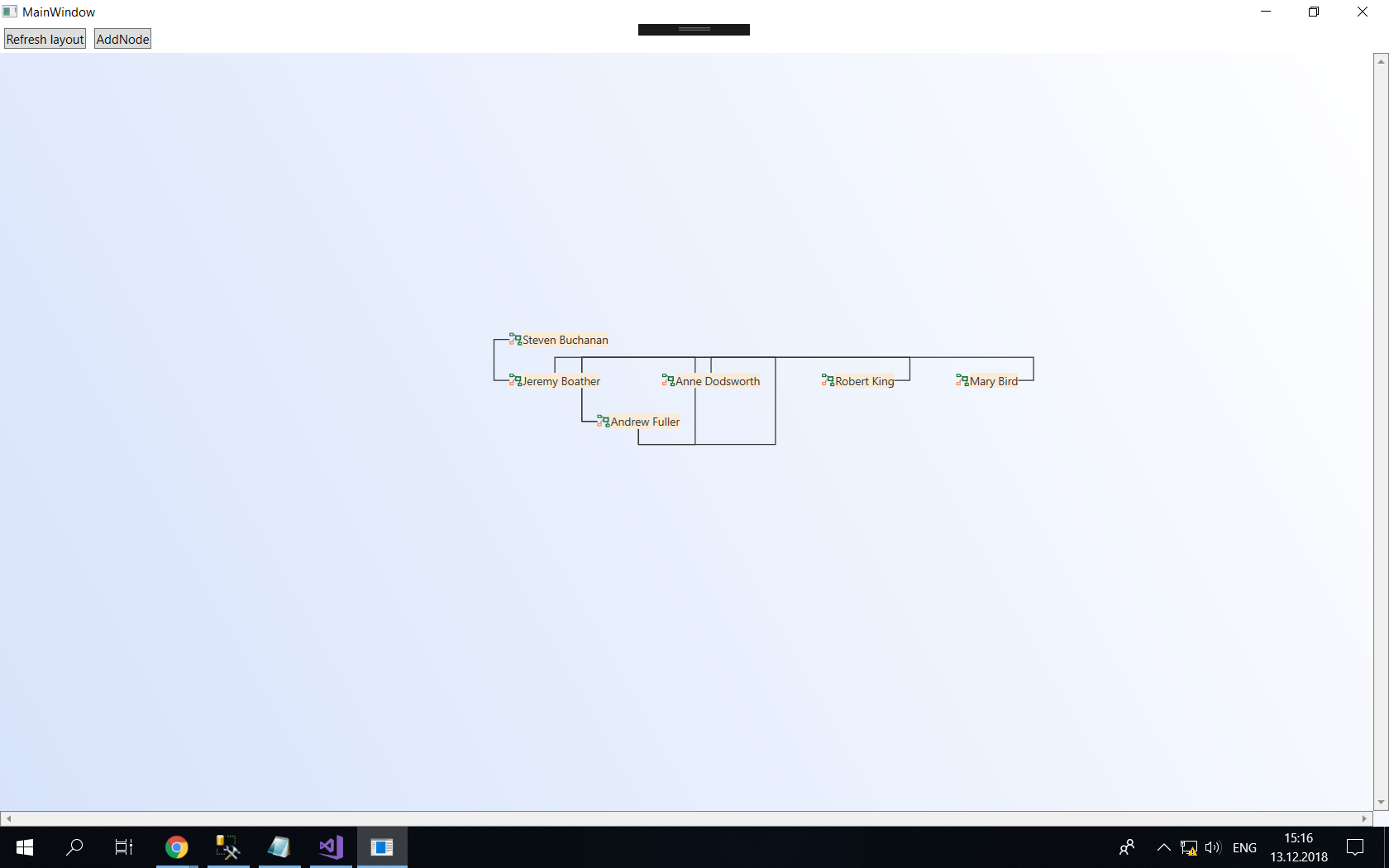

But I have a problem. When I create new node and link and call diagram.Layout(...), routing is corrupted.

How to fix it?

[Konstantin]

To better understand my problem I show some code:

public class MainWindowViewModel : ViewModelBase
    {
        public event EventHandler<EventArgs> OnNodeAdded;

        public ICommand AddNodeCommand { get; private set; }
        public Node RootNode { get; private set; }

        public MainWindowViewModel()
        {
            AddNodeCommand = new RelayCommand(AddNodeExecute);

            this.GraphSource = new GraphSource();
            _populateWithData();
        }

        public void AddNodeExecute(object parameter)
        {
            Node newVertex = new Node() { Text = "Mary Bird" };
            RootNode.Children.Add(newVertex);
            this.GraphSource.AddNode(newVertex);
            this.GraphSource.AddLink(new Link(RootNode, newVertex));

            //Notify View about new node is added
            OnNodeAdded?.Invoke(this, EventArgs.Empty);
        }

        private void _populateWithData()
        {
            RootNode = new Node() { Text = "Andrew Fuller" };

            Node level1 = new Node() { Text = "Jeremy Boather" };
            level1.Children.Add(new Node() { Text = "Steven Buchanan" });

            RootNode.Children.Add(level1);
            RootNode.Children.Add(new Node() { Text = "Anne Dodsworth" });
            RootNode.Children.Add(new Node() { Text = "Robert King" });

            this.GraphSource.PopulateGraphSource(RootNode);
        }

        private GraphSource graphSource;
        public GraphSource GraphSource
        {
            get
            {
                return this.graphSource;
            }
            set
            {
                if (this.graphSource != value)
                {
                    this.graphSource = value;
                    this.OnPropertyChanged("GraphSource");
                }
            }
        }
    }

After new node was added, then ViewModel rise the Event "OnNodeAdded" and calling method of the View

private void MainWindowViewModel_OnNodeAdded(object sender, EventArgs e)
{
   LayoutOrgChart(true);
}

[Martin Ivanov]

Hello Konstantin,

I've plugged your code into the OrgChart SDK example, but I wasn't able to reproduce the issue. Can you please check the attached project and let me know if I am missing something? Note that in order to add a new node you will need to press the right mouse button.

Regards,
Martin Ivanov
Progress Telerik

[Konstantin]

Thank you, Matrin!

I have already solved my problem.
I began to use diagram.LayoutAsync() instead off Layout()
