VS2017 - Object does not match target type

1 Answer 395 Views

RibbonView and RibbonWindow

This is a migrated thread and some comments may be shown as answers.

Vivian asked on 01 Jun 2017, 11:45 AM

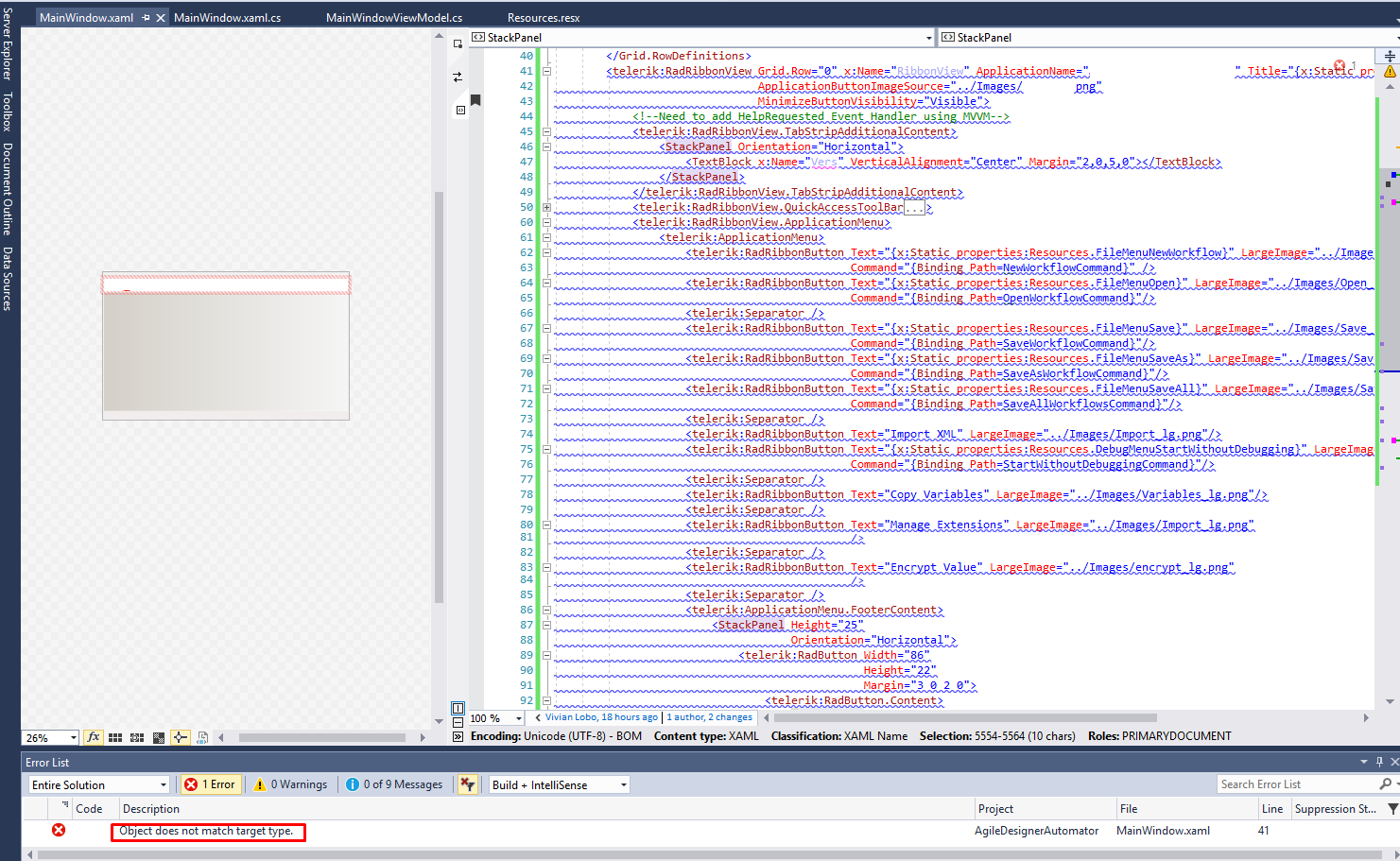

XAML editor complains “Object does not match target type” while using the RibbonView. I have the latest updated VS2017.

I have tried using the threads on StackOverflow.

https://stackoverflow.com/questions/14591781/object-does-not-match-target-type

https://stackoverflow.com/questions/31815177/design-mode-error-object-does-not-match-target-type-for-loaded-page-resource

https://stackoverflow.com/questions/31726759/xaml-editor-complains-object-does-not-match-target-type-for-sharedresourcedict

I was not able to resolve my error using them links. The source compiles and runs but the editor complains and it is irritating and obstructing actual errors.

<telerik:RadRibbonView Grid.Row="0" x:Name="RibbonView" ApplicationName="MyApplication" Title="{x:Static properties:Resources.RibbonViewTitle}"

ApplicationButtonImageSource="../Images/MyApp.png"

MinimizeButtonVisibility="Visible">

<telerik:RadRibbonView.TabStripAdditionalContent>

<StackPanel Orientation="Horizontal">

<TextBlock x:Name="Vers" VerticalAlignment="Center" Margin="2,0,5,0"></TextBlock>

</StackPanel>

</telerik:RadRibbonView.TabStripAdditionalContent>

<telerik:RadRibbonView.QuickAccessToolBar>

<telerik:QuickAccessToolBar>

<telerik:RadRibbonButton Text="{x:Static properties:Resources.FileMenuSave}" SmallImage="../Images/Save_sm.png"

Size="Small" telerik:KeyTipService.AccessText="1" Command="{Binding Path=SaveWorkflowCommand}" />

<telerik:RadRibbonButton Text="Undo" SmallImage="../Images/Undo_sm.png"

Size="Small" telerik:KeyTipService.AccessText="2" Command="ApplicationCommands.Undo" />

<telerik:RadRibbonButton Text="Redo" SmallImage="../Images/Redo_sm.png"

Size="Small" telerik:KeyTipService.AccessText="3" Command="ApplicationCommands.Redo" />

</telerik:QuickAccessToolBar>

</telerik:RadRibbonView.QuickAccessToolBar>

<telerik:RadRibbonView.ApplicationMenu>

<telerik:ApplicationMenu>

<telerik:RadRibbonButton Text="{x:Static properties:Resources.FileMenuNewWorkflow}" LargeImage="../Images/New_lg.png"

Command="{Binding Path=NewWorkflowCommand}" />

<telerik:RadRibbonButton Text="{x:Static properties:Resources.FileMenuOpen}" LargeImage="../Images/Open_lg.png"

Command="{Binding Path=OpenWorkflowCommand}"/>

<telerik:Separator />

<telerik:RadRibbonButton Text="{x:Static properties:Resources.FileMenuSave}" LargeImage="../Images/Save_lg.png"

Command="{Binding Path=SaveWorkflowCommand}"/>

<telerik:RadRibbonButton Text="{x:Static properties:Resources.FileMenuSaveAs}" LargeImage="../Images/SaveAs_lg.png"

Command="{Binding Path=SaveAsWorkflowCommand}"/>

<telerik:RadRibbonButton Text="{x:Static properties:Resources.FileMenuSaveAll}" LargeImage="../Images/SaveAs_lg.png"

Command="{Binding Path=SaveAllWorkflowsCommand}"/>

<telerik:Separator />

<telerik:RadRibbonButton Text="Import XML" LargeImage="../Images/Import_lg.png"/>

<telerik:RadRibbonButton Text="{x:Static properties:Resources.DebugMenuStartWithoutDebugging}" LargeImage="../Images/Start_lg.png"

Command="{Binding Path=StartWithoutDebuggingCommand}"/>

<telerik:Separator />

<telerik:RadRibbonButton Text="Copy Variables" LargeImage="../Images/Variables_lg.png"/>

<telerik:Separator />

<telerik:RadRibbonButton Text="Manage Extensions" LargeImage="../Images/Import_lg.png"

/>

<telerik:Separator />

<telerik:RadRibbonButton Text="Encrypt Value" LargeImage="../Images/encrypt_lg.png"

/>

<telerik:Separator />

<telerik:ApplicationMenu.FooterContent>

<StackPanel Height="25"

Orientation="Horizontal">

<telerik:RadButton Width="86"

Height="22"

Margin="3 0 2 0">

<telerik:RadButton.Content>

<StackPanel Orientation="Horizontal"

VerticalAlignment="Center"

Margin="3 0 5 0">

<Image Width="16"

Height="16" Source="../Images/Exit_sm.png" />

<TextBlock Margin="4 0 0 0"

VerticalAlignment="Center"

Text="Exit" />

</StackPanel>

</telerik:RadButton.Content>

</telerik:RadButton>

</StackPanel>

</telerik:ApplicationMenu.FooterContent>

</telerik:ApplicationMenu>

</telerik:RadRibbonView.ApplicationMenu>

<telerik:RadRibbonView.Items>

<telerik:RadRibbonTab Header="{x:Static properties:Resources.HomeMenu}">

<telerik:RadRibbonGroup Header="{x:Static properties:Resources.FileMenu}" telerik:KeyTipService.AltAccessText="F">

<telerik:RadRibbonButton x:Name="RibGrpNew" LargeImage="../Images/New_lg.png" Size="Large"

Text="{x:Static properties:Resources.FileMenuNewWorkflow}" telerik:KeyTipService.AccessText="N" Command="{Binding Path=NewWorkflowCommand}" ToolTip="Ctrl+N" />

<telerik:RadCollapsiblePanel>

<telerik:RadRibbonButton x:Name="RibGrpOpen"

LargeImage="../Images/Open_lg.png" Size="Large"

Text="{x:Static properties:Resources.FileMenuOpen}" telerik:KeyTipService.AccessText="O" Command="{Binding Path=OpenWorkflowCommand}" />

</telerik:RadCollapsiblePanel>

<StackPanel>

<telerik:RadRibbonButton x:Name="RibGrpSave"

SmallImage="../Images/Save_lg.png" Size="Medium"

Text="{x:Static properties:Resources.FileMenuSave}" telerik:KeyTipService.AccessText="S" Command="{Binding Path=SaveWorkflowCommand}" />

<telerik:RadRibbonButton x:Name="RibGrpSaveAs"

SmallImage="../Images/SaveAs_lg.png" Size="Medium"

Text="{x:Static properties:Resources.FileMenuSaveAs}" telerik:KeyTipService.AccessText="SA" Command="{Binding Path=SaveAsWorkflowCommand}" />

</StackPanel>

</telerik:RadRibbonGroup>

<telerik:RadRibbonGroup x:Name="RibGrpExec" Header="{x:Static properties:Resources.RibGrpExecHeader}" telerik:KeyTipService.AltAccessText="E">

<telerik:RadRibbonButton x:Name="RibGrpStart" LargeImage="../Images/Start_lg.png" Size="Large"

Text="{x:Static properties:Resources.DebugMenuStartWithoutDebugging}" Tag="0" telerik:KeyTipService.AccessText="ST" Command="{Binding Path=StartWithoutDebuggingCommand}">

</telerik:RadRibbonButton>

<telerik:RadRibbonButton x:Name="RibGrpStartWithVariable" Tag="1" LargeImage="../Images/StartVar_lg.png" Size="Large"

Text="Start with variable" telerik:KeyTipService.AccessText="ST" Command="{Binding Path=StartWithoutDebuggingCommand}">

</telerik:RadRibbonButton>

<telerik:RadCollapsiblePanel>

<telerik:RadRibbonButton x:Name="RibGrpStop"

LargeImage="../Images/Stop_lg.png" Size="Large"

Text="{x:Static properties:Resources.DebugMenuAbort}" Command="{Binding Path=AbortCommand}" ToolTip="F5" />

</telerik:RadCollapsiblePanel>

<StackPanel>

<telerik:RadRibbonButton x:Name="RunDebug"

SmallImage="../Images/Debug_sm.png" Size="Medium"

Text="{x:Static properties:Resources.DebugMenuStartDebugging}" telerik:KeyTipService.AccessText="DG" Command="{Binding Path=StartWithDebuggingCommand}" />

<telerik:RadRibbonButton x:Name="RunVerbose"

SmallImage="../Images/Debug_sm.png" Size="Medium"

Text="Verbose_Logging" telerik:KeyTipService.AccessText="DG"/>

</StackPanel>

</telerik:RadRibbonGroup>

</telerik:RadRibbonTab>

<telerik:RadRibbonTab Header="{x:Static properties:Resources.ViewMenu}" />

<telerik:RadRibbonTab Header="{x:Static properties:Resources.DebugMenu}" />

<telerik:RadRibbonTab Header="{x:Static properties:Resources.HelpMenu}" />

</telerik:RadRibbonView.Items>

</telerik:RadRibbonView>

Any help or suggestion is appreciated.

1 Answer, 1 is accepted

answered on 06 Jun 2017, 12:25 PM

Hello,

I ran the snippet in VS2017 Professional without success of reproducing the issue. Could I ask you to provide a runnable sample project that isolates the issue, since I assume that clearing all the bindings and static setters might have prevented the issue from occurring).

Furthermore, I could suggest closing the studio, cleaning the bin and obj folders and their contents, and rebuilding, and/or checking if the types of the static properties that are set to the controls meet the expected types for the properties - i.e. if the Title of the RadRibbonView is a string etc.

Regards,
Martin
Progress Telerik
