Vertical Linear Gauge width

2 Answers 188 Views
Gauges
This is a migrated thread and some comments may be shown as answers.
Marc
Top achievements
Rank 1
Marc asked on 18 Apr 2013, 08:47 PM
I'd like to to remove all of the outside margin/padding around the gauge and then make the width of the bar indicator wider.

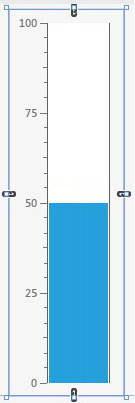

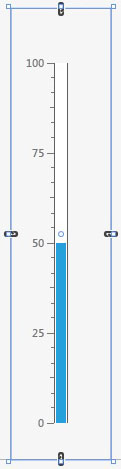

I've attached images to demonstrate my current (default) look and my desired look.

Thank you

2 Answers, 1 is accepted

Sort by
0
Marc
Top achievements
Rank 1
answered on 22 Apr 2013, 08:22 PM
I figured it out. Had to use a variety of things to get it to work.

<telerik:RadVerticalLinearGauge Width="360" Height="220" Margin="0">
      <telerik:VerticalLinearScale Min="0" Max="200" StartWidth="0" EndWidth="0"
                            RelativeX="0.2" RelativeY="0" RelativeWidth="1" RelativeHeight="1" Margin="0,10,0,10" FontSize="18">
      <telerik:VerticalLinearScale.Indicators>
              <telerik:BarIndicator Margin="0,0,0,0" StartWidth="0.8" EndWidth="0.8" Value="155" telerik:ScaleObject.Location="Inside" />
        </telerik:VerticalLinearScale.Indicators>
         </telerik:VerticalLinearScale>
</telerik:RadVerticalLinearGauge>

I'd appreciate anyone showing me how to do it easier.
0
Andrey
Telerik team
answered on 23 Apr 2013, 07:33 AM
Hi Marc,

I would recommend you to take a look into the following topics in our online help:

1. http://www.telerik.com/help/wpf/radgauge-features-linear-and-radial-scales-basics.html - it describes gauge scale basics. You can find an information about how the width of the scale bar is controlled there.

2. http://www.telerik.com/help/wpf/radgauge-features-indicators-bar-indicators-basics.html - it describes bar indicator features. You can find an information about how the width of the bar indicator is controlled there.


All the best,
Andrey Murzov
the Telerik team
