Using a new Point in creating a path results in error in a production build

[Noah]

Using a Point object created with its constructor as the moveTo for a path fails when built for production but works when debugging.

    const moveTo: Point = new Point(x, y);

    path

      .moveTo(moveTo)

      .lineTo(moveTo.x + offsets[0].x, moveTo.y + offsets[0].y)

      .lineTo(moveTo.x + offsets[1].x, moveTo.y + offsets[1].y)

      .lineTo(moveTo.x + offsets[2].x, moveTo.y + offsets[2].y)

      .lineTo(moveTo)

      .fill('red');



If I use the code above, that path will draw just fine when built with development settings, but if I build the app for production it fails with NaN errors on the paths SVG Move step.  (the error has SVG that looks like 'M Nan')

however, if I just use the X and Y coordinates, it works... the following works in production.  I don't know if it's a bug or I'm doing something wrong, but the fact that it works in a dev build, but not an optimized production build makes me think it's a bug.

    path

      .moveTo(moveTo.x, moveTo.y)



[Martin Bechev]

Hello Noah,

There are two methods moveTo - the first accepts x and y values as arguments, while the second one accepts a Point as argument.

When drawing a Path it looks that moveTo works only with x and y values:

https://stackblitz.com/edit/angular-dsf2d1

Passing a Point throws this error:

I will discuss this matter with the development team, and follow you back once I have more details.

Regards,
Martin Bechev
Progress Telerik

[Martin Bechev]

Hi Noah,

I discussed this case with the developers. The moveTo(Point) doesn't work, but moveTo(x, y) does, because most probably there two copies of the Drawing packages are loaded.

Please execute the following command to check if there are multiple versions installed:

npm ls @progress/kendo-drawing

Regards,
Martin Bechev
Progress Telerik

[Noah]

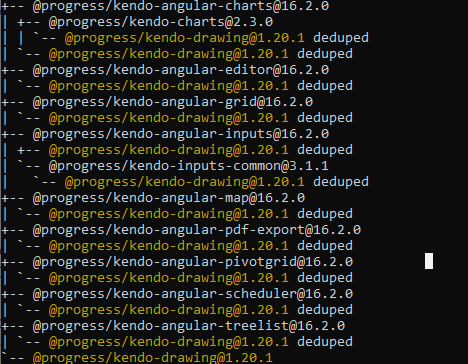

looks like they're all the same version.

[Martin Bechev]

Hi Noah,

Try deleting the node_modules and package-lock.json files and reinstall the dependencies with the npm install command.

Regards
